Part No.: FDB-T263

48FO Aerial Fiber Distribution Box

48FO Aerial Fiber Distribution Box

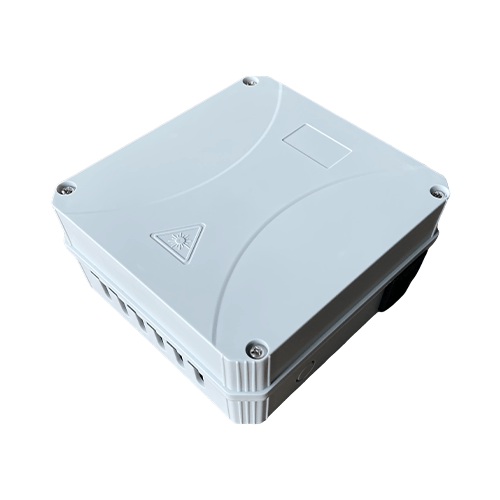

The FDB-T263 Fiber Optic Distribution Box is designed for FTTH projects, providing reliable mechanical protection for fiber management systems, including splicing. With its IP54 rating, it is suitable for both indoor and outdoor installations, ensuring the secure deployment of fiber optic networks in various environments.

Specification

Dimension (WxHxD): 143x136x61.5mm

Inlet / Outlet: 2 (In-line) / 12

Branch (Blind) ports: -

Splicing capacity: 48FO

Patching capacity: -

Suitable splitter: -

Packing List

Carton Size: 33x32x40CM

Pieces per Carton: 20 PCS/CTN

Download File
Request for Quotation View full details

  • Description

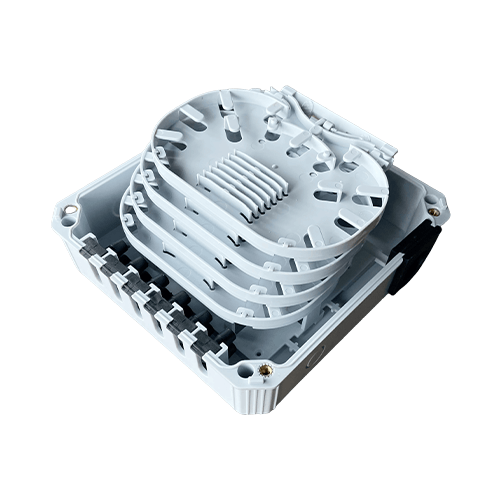

    The FDB-T263 Fiber Optic Distribution Box is a compact and efficient solution for managing fiber splicing in FTTH networks. Built from durable PC/ABS material, the box supports up to 48 fusion splices across 4 splice trays. Its design includes flexible tray holders that can be adjusted to 45 or 90 degrees, allowing easy access and management of uncut cables. The box is equipped with secure metal bolts and a reliable sealing system, ensuring consistent protection against dust and water. With wall-mounting capabilities, the GP-T263 is an ideal choice for streamlined and organized fiber optic installations.

  • Feature & Benifits

    Port capacities of the 48FO Aerial Fiber Distribution Box:
    • Splicing capacity: 48FO
    • Patching capacity: -
    • Splitter capacity: -
    Key features for the 48FO Aerial Fiber Distribution Box:
    • Compact and Efficient Design: Optimized for space-saving installations with flexible tray holders for easy fiber management.
    • High Splice Capacity: Accommodates up to 48 fusion splices across 4 trays, making it suitable for medium-scale network deployments.
    • Durable Construction: Made from high-quality PC/ABS material, offering excellent protection and long-term reliability.
    • IP54 Rating: Provides protection against dust and water, ensuring reliable performance in both indoor and outdoor environments.
    • Secure Mounting and Sealing: Features 4 metal bolts and EPDM seals for consistent sealing performance, even with repeated use.

Specifications

Part No. FDB-T263
Color Black / White / Gray / Light Gray
Dimension 143x136x61.5mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 2 (In-line)
Branch Cable Ports -
Drop Cable Ports 12
Fusion Splice 48FO
Number of Splice Tray 4
Suitable Splitter -
Number of Adapters -
Mount Way Aerial / Wall-mounted
