Part No.: FDB-6B

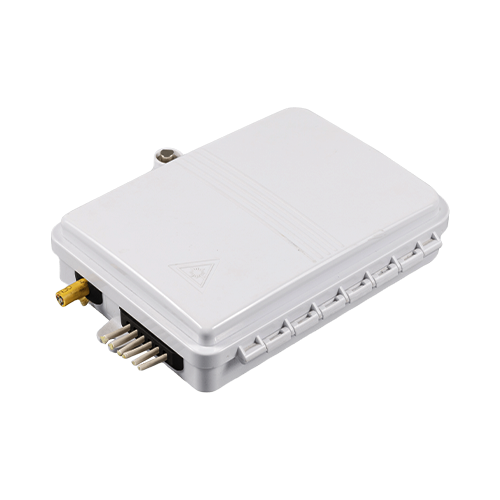

6 Core 1 In 6 Out Fiber Optic Distribution Box

6 Core 1 In 6 Out Fiber Optic Distribution Box

The FDB-6B FTTH Distribution Box is designed for FTTH projects, providing mechanical protection for fiber management systems, including splicing, patching, and passive component integration. Rated IP54, it is suitable for both indoor and outdoor applications.

Specification

Dimension (WxHxD): 210x135x40 mm

Inlet / Outlet: 1 / 6

Branch (Blind) ports: N/A

Splicing capacity: 6 Fusion splices (Max.)

Patching capacity: 6 SC

Suitable splitter: 1x4 or 1x8 PLC Micro Splitter

Packing List

Carton Size: 40x29x58CM

Pieces per Carton: 50 PCS/CTN

Download File
Request for Quotation View full details

  • Description

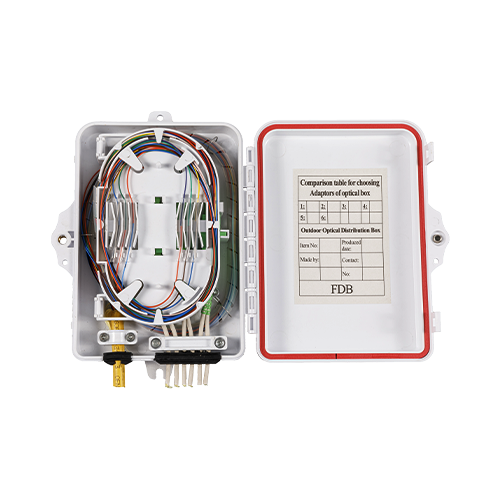

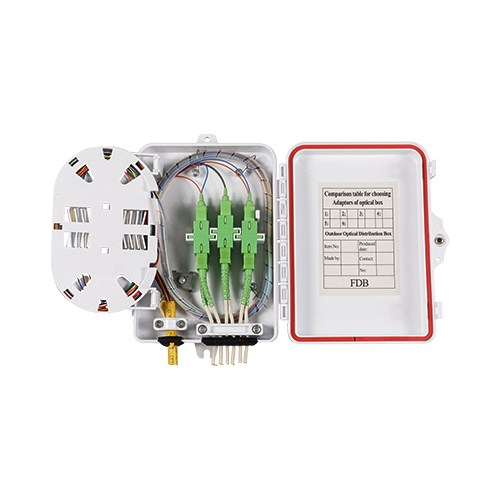

    The FDB-6B is a Fiber Optic Distribution Box designed for the FTTH network. It can house up to 6 fusion splices and 6 SC adaptors. The closure is suitable for deployment in wall-mounted applications.

  • Feature & Benifits

    Port capacities of the 6 Core 1 In 6 Out Fiber Optic Distribution Box:
    • Splicing capacity: 6 Fusion splices (Max.)
    • Patching capacity: 6 SC
    • Splitter capacity: 1x4 or 1x8 PLC Micro Splitter
    Key features for the 6 Core 1 In 6 Out Fiber Optic Distribution Box:
    • Compact Structure: Reasonable and space-saving design.
    • IP54 Rated: Suitable for both indoor and outdoor use.
    • Splitter Compatibility: Supports 1x4 or 1x8 PLC splitters.
    • Adapter Compatibility: Accepts standard SC and duplex LC connectors.
    • Fiber Management: Ensures a fiber bend radius greater than 30mm.
    • Splice Options: Suitable for both mechanical and fusion splices.
    • Secure Cable Fixing: Reliable device for securing cables, including outputs.
    • Easy Installation: Open ports facilitate easy cable installation

Specifications

Part No. FDB-6B
Color Black / White / Gray / Light Gray
Dimension 210x135x40 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 1
Branch Cable Ports N/A
Drop Cable Ports 6
Fusion Splice 6 Fusion splices (Max.)
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1x4 or 1x8 PLC Micro Splitter
Number of Adapters 6 SC
Mount Way Wall-mounted
