Part No.: FDB-6C

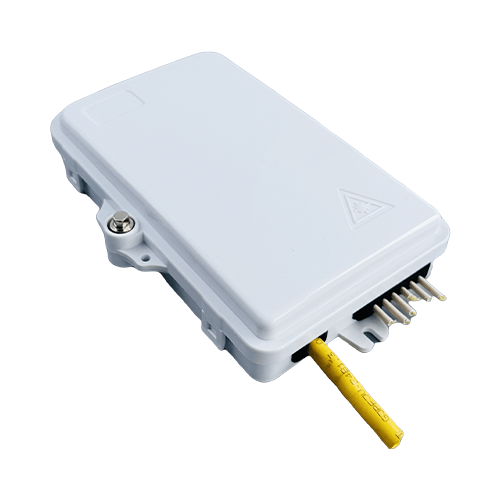

6-Core 6-Port FTTH Distribution Box

6-Core 6-Port FTTH Distribution Box

The FDB-6C Fiber Distribution Box is designed for FTTH (Fiber to the Home) projects, providing mechanical protection and supporting functions such as splicing, cable fixing, and passive component integration. Certified with an IP54 rating, it is suitable for both indoor and outdoor environments.

Specification

Dimension (WxHxD): 210x135x40mm

Inlet / Outlet: 1 / 6

Branch (Blind) ports: N/A

Splicing capacity: 6 mechanical or Fusion splices (Max.)

Patching capacity: 6 SC or LC Duplex

Suitable splitter: 1x4 / 1x6 / 1x8 micro PLC splitters

Packing List

Carton Size: 40x29x58CM

Pieces per Carton: 50 PCS/CTN

Download File
Request for Quotation View full details

  • Description

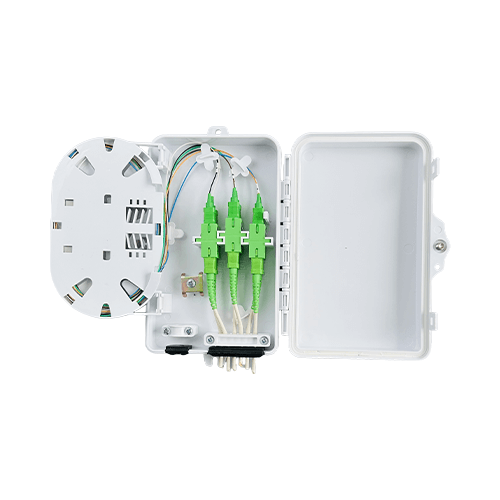

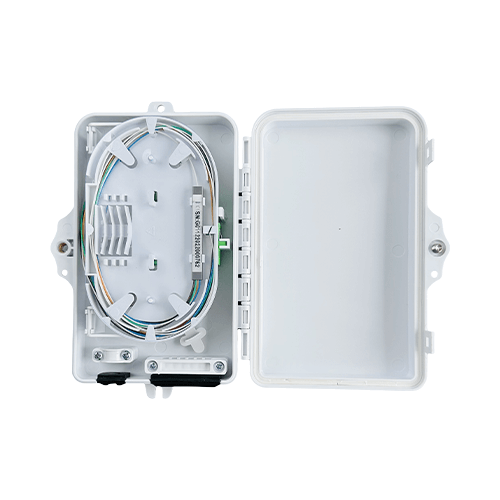

    The FDB-6C Fiber Distribution Box serves as a fiber termination point for FTTH applications, featuring a compact structure and optimized dimensions specifically designed for indoor and outdoor installations. It supports both mechanical and fusion splicing for up to 6 fibers. Equipped with dust and water resistance, it ensures reliability under various environmental conditions. Open ports and reliable cable fixing devices enable quick and secure cable installations.

  • Feature & Benifits

    Port capacities of the 6-Core 6-Port FTTH Distribution Box:
    • Splicing capacity: 6 mechanical or Fusion splices (Max.)
    • Patching capacity: 6 SC or LC Duplex
    • Splitter capacity: 1x4 / 1x6 / 1x8 micro PLC splitters
    Key features for the 6-Core 6-Port FTTH Distribution Box:
    • Space-saving design: Ideal for both indoor and outdoor installations, with a compact footprint.
    • Fiber splicing support: Accommodates up to 6 fibers, supporting both mechanical and fusion splicing techniques.
    • Adapter and splitter configuration: Configurable with 6 SC or LC duplex adapters, supporting 1x4, 1x6, or 1x8 micro PLC splitters.
    • Dust and water resistance: Designed to resist dust and water, ensuring stability across diverse environments.
    • Quick and secure cable installation: Features open ports and reliable cable fixing mechanisms that accelerate the installation process while ensuring quality.
    • Maintains fiber bend radius: Ensures efficient fiber routing with a bend radius greater than 30mm.

Specifications

Part No. FDB-6C
Color Black / White / Gray / Light Gray
Dimension 210x135x40mm
Material of Housing ABS or PC/ABS
Protection class IP IP54
Main Cable Ports 1
Branch Cable Ports N/A
Drop Cable Ports 6
Fusion Splice 6 mechanical or Fusion splices (Max.)
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1x4 / 1x6 / 1x8 micro PLC splitters
Number of Adapters 6 SC or LC Duplex
Mount Way Wall-mounted
