Part No.: FDB-8B

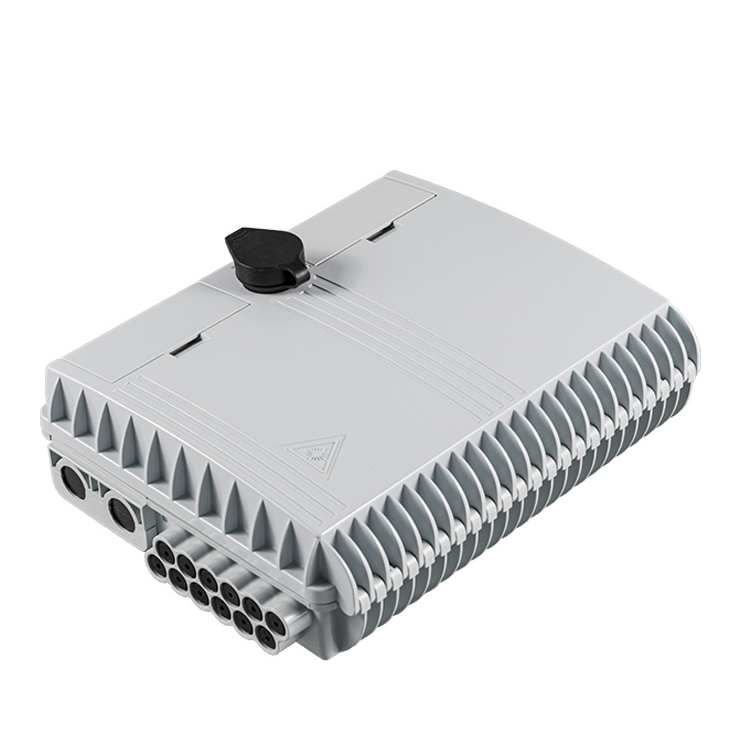

FDB-8B 8-Core 12 Drop ports Fiber Distribution Box

FDB-8B 8-Core 12 Drop ports Fiber Distribution Box

The FDB-8B Fiber Optic Distribution Box is specifically designed for FTTH networks, accommodating up to 12 fusion splices and a 1:8 slot type PLC splitter. It effectively distributes to 8 drop cables and is suitable for both wall-mounted and pole-mounted applications.

Specification

Dimension (WxHxD): 250x190x72mm

Inlet / Outlet: 2 Mid-span ports / 12

Branch (Blind) ports: N/A

Splicing capacity: 12 Fusion splices (Max.)

Patching capacity: 8 SC

Suitable splitter: 1x8 Slot type PLC Splitter

Packing List

Carton Size: 62x34x52cm

Pieces per Carton: 10 PCS/CTN

Download File
Request for Quotation View full details

  • Description

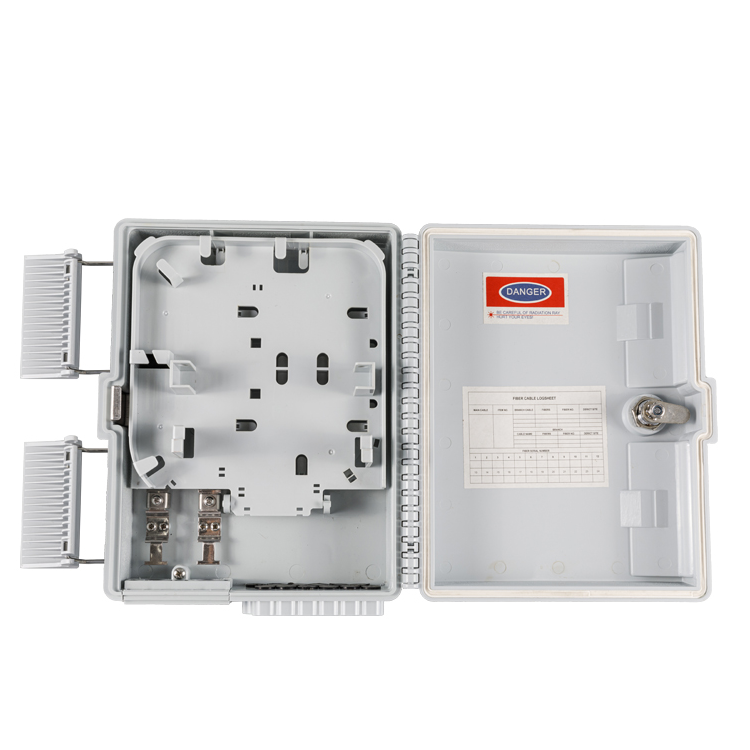

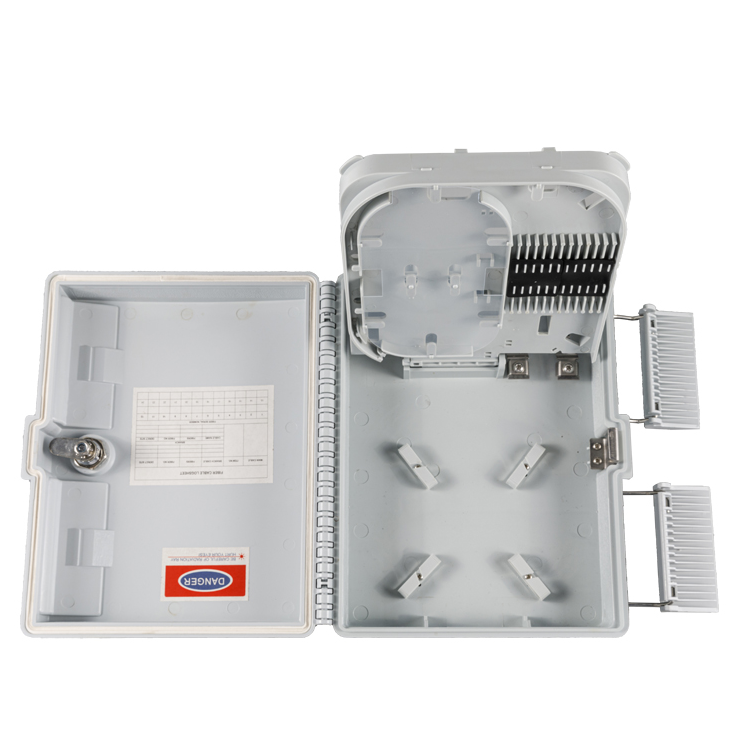

    The FDB-8B is a Fiber Optic Distribution Box designed for the FTTH network. It can house up to 12 fusion splices and a 1:8 slot type PLC splitter and distributed into 8 drop cables. The closure is suitable for deployment in wall-mounted or pole-mounted applications.

  • Feature & Benifits

    Port capacities of the FDB-8B 8-Core 12 Drop ports Fiber Distribution Box:
    • Splicing capacity: 12 Fusion splices (Max.)
    • Patching capacity: 8 SC
    • Splitter capacity: 1x8 Slot type PLC Splitter
    Key features for the FDB-8B 8-Core 12 Drop ports Fiber Distribution Box:
    • Port Capacities: Supports up to 12 fusion splices, 8 SC adapters, and a 1x4 or 1x8 slot type PLC splitter.
    • Easy Installation: Simplifies the installation and connection process.
    • Durable Construction: Made from high-quality PC/ABS plastic.
    • Efficient Fiber Management: Ensures a fiber bend radius greater than 30mm and clear function division.
    • Open Ports: Facilitates easy cable installation.
    • Secure Access: Features a key-lock system with one key-lock and two hasp locks.
    • Flexible Mounting: Suitable for both wall-mount and pole-mount installations.
    • Protection: Rated IP55, ideal for outdoor environments.

Specifications

Part No. FDB-8B
Color Black / White / Gray / Light Gray
Dimension 250x190x72mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 Mid-span ports
Branch Cable Ports N/A
Drop Cable Ports 12
Fusion Splice 12 Fusion splices (Max.)
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1x8 Slot type PLC Splitter
Number of Adapters 8 SC
Mount Way Wall-mounted
