Part No.: FDB-8C

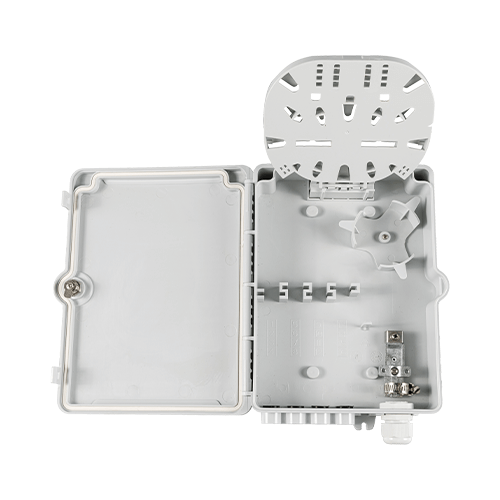

8-Core 8 Drop ports Fiber Optic Distribution Box

8-Core 8 Drop ports Fiber Optic Distribution Box

The FDB-8C Outdoor FTTx Distribution Box is designed for FTTx projects, providing robust mechanical protection for fiber management systems. It supports splicing, patching, and passive component integration. Rated IP55, it is suitable for both indoor and outdoor installations, ensuring reliable performance in various environments.

Specification

Dimension (WxHxD): 213 × 163 × 47 mm

Inlet / Outlet: 1 (PG13.5) / 4 (Allow 2 drop cables through each port)

Branch (Blind) ports: N/A

Splicing capacity: 8 Fusion splices (Max.)

Patching capacity: 8 SC

Suitable splitter: 1x8 Micro PLC Splitter

Packing List

Carton Size: 46x27x37cm

Pieces per Carton: 20 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The FDB-8C is a Fiber Optic Distribution Box designed for the FTTH network. It can house up to 8 fusion splices and 8 adapters and distributed into 8 drop cables. The closure is suitable for deployment in wall-mounted or pole-mounted applications.

  • Feature & Benifits

    Port capacities of the 8-Core 8 Drop ports Fiber Optic Distribution Box:
    • Splicing capacity: 8 Fusion splices (Max.)
    • Patching capacity: 8 SC
    • Splitter capacity: 1x8 Micro PLC Splitter
    Key features for the 8-Core 8 Drop ports Fiber Optic Distribution Box:
    • High-Quality Construction: Made from durable engineering plastic for long-lasting use.
    • Secure Access: Equipped with a standard key lock for enhanced security.
    • Micro PLC Splitter Compatibility: Supports 1:8 micro PLC splitters for efficient fiber distribution.
    • Flexible Mounting Options: Can be wall-mounted or pole-mounted to suit different installation needs.
    • Reliable Sealing: Features EPDM seal material for the box and rubber seal material for the ports, ensuring IP55 protection rating.

Specifications

Part No. FDB-8C
Color Black / White / Gray / Light Gray
Dimension 213 × 163 × 47 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 1 (PG13.5)
Branch Cable Ports N/A
Drop Cable Ports 4 (Allow 2 drop cables through each port)
Fusion Splice 8 Fusion splices (Max.)
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1x8 Micro PLC Splitter
Number of Adapters 8 SC
Mount Way Wall-mounted
