Part No.: ODB-8H

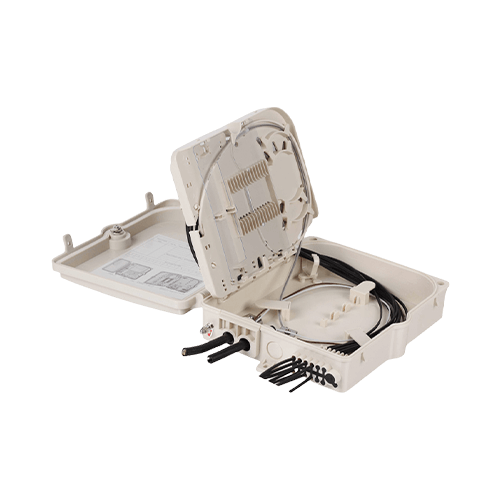

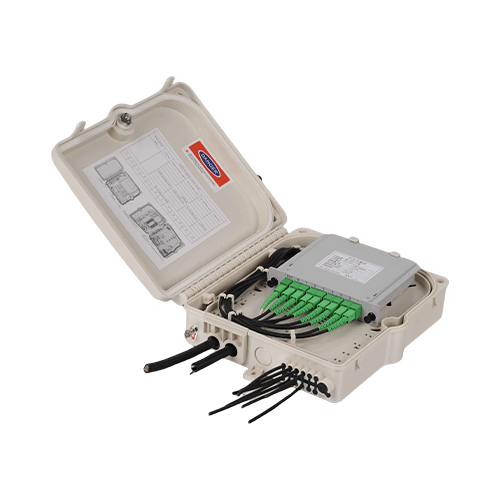

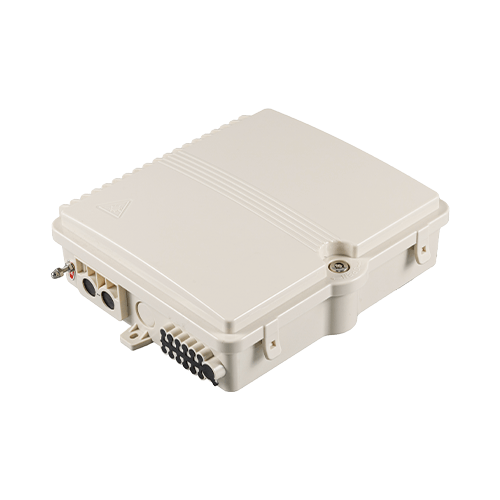

ODB-8H 8-Core Optical Distribution Box w/ Cassette Splitter

ODB-8H 8-Core Optical Distribution Box w/ Cassette Splitter

Applicable for the FTTX project, providing IP55 mechanical protection for fiber management systems with functions of splicing, patching, passive component integration, and suitable for both wall-mounted and pole-mounted installations.

Specification

Dimension (WxHxD): 225 x 200 x 65 mm

Inlet / Outlet: 2 Mid-span ports / 12

Branch (Blind) ports: 1 Blind port (PG16)

Splicing capacity: 12/24 Fibers

Patching capacity: 8 SC

Suitable splitter: 1:8 Cassette Splitter

Packing List

Carton Size: 50.0*48.0*49.0CM

Pieces per Carton: 20 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The ODB-8H Fiber Distribution Box is constructed from high-quality engineering plastic, providing excellent mechanical protection for both indoor and outdoor applications. It features a hinge structure with a key lock system for enhanced security. The box integrates a splice tray, distribution tray, and splitter housing into one tray, simplifying fiber management. It supports up to 8 SC adapters and includes 20 splice slots. The design includes mid-span ports and storage areas to accommodate uncut cable lead-in and reservations, offering versatility for various installation needs.

  • Feature & Benifits

    Port capacities of the ODB-8H 8-Core Optical Distribution Box w/ Cassette Splitter:
    • Splicing capacity: 12/24 Fibers
    • Patching capacity: 8 SC
    • Splitter capacity: 1:8 Cassette Splitter
    Key features for the ODB-8H 8-Core Optical Distribution Box w/ Cassette Splitter:
    • High-Quality Construction: Made from high-quality engineering plastic for enhanced durability and protection.
    • IP55 Rating: Suitable for both indoor and outdoor installations, providing reliable protection against dust and water.
    • Secure Design: Features a hinge structure with a key lock system to ensure secure access and maintenance.
    • Integrated Tray: Splice tray, distribution tray, and splitter housing are combined into a single tray for streamlined fiber management.
    • Versatile Installation: Can be easily installed using either wall-mount or pole-mount options.
    • Mid-Span Port and Storage: Includes mid-span ports and storage areas to accommodate uncut cable lead-in and reservations, offering flexibility for various setups.

Specifications

Part No. ODB-8H
Color Black / White / Gray / Light Gray
Dimension 225 x 200 x 65 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 Mid-span ports
Branch Cable Ports 1 Blind port (PG16)
Drop Cable Ports 12
Fusion Splice 12/24 Fibers
Number of Splice Tray 1 PC (Max.)
Suitable Splitter 1:8 Cassette Splitter
Number of Adapters 8 SC
Mount Way Wall-mounted or Pole-mounted
