Part No.: FDB-16PS

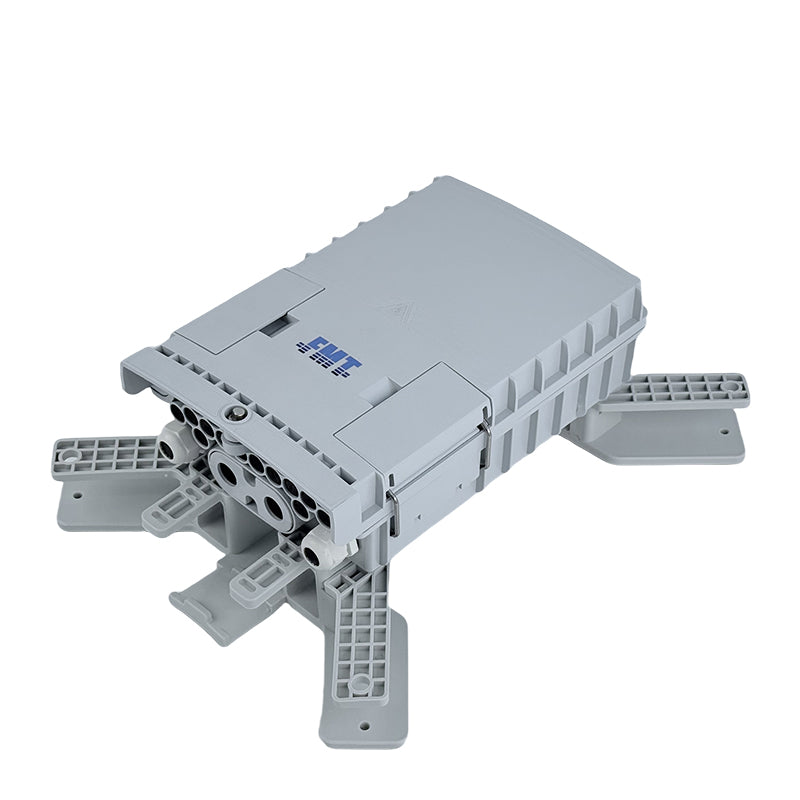

FDB-16PS Fiber Optic Distribution Box

FDB-16PS Fiber Optic Distribution Box

The FDB-16PS Fiber Optic Distribution Box is designed for FTTx projects, offering robust mechanical protection for fiber management systems. It supports key functions such as splicing, splitting, patching, and passive component integration. With an IP65 rating, this distribution box is suitable for both indoor and outdoor environments, ensuring reliable performance under various conditions.

Specification

Dimension (WxHxD): 285mm x 175mm x 84mm

Inlet / Outlet: 2 Mid-span ports / 16 x 2*3mm

Branch (Blind) ports: 2 x PG13.5

Splicing capacity: 12/24 Fibers

Patching capacity: 16 SC

Suitable splitter: Either One 1:16 or Two 1:8 Cassette Splitters

Packing List

Carton Size: 58x31x49CM

Pieces per Carton: 15 PCS/CTN

Download File
Request for Quotation View full details

  • Description

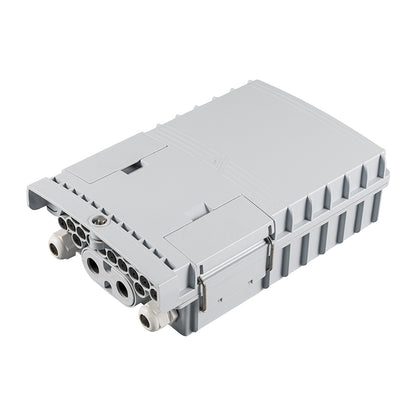

    The FDB-16PS Fiber Optic Distribution Box is a compact and durable solution for managing fiber optic connections. Constructed from high-quality ABS or ABS+PC material, it measures 274 x 175 x 82 mm and provides IP65 protection against dust and water. This box supports a drawer-type PLC cassette splitter, accommodating either one 1:16 or two 1:8 splitters. It features mid-span ports for loop-through cables, 16 individual ports for drop cables, and 2 PG gland ports for branch cables, making it highly versatile for diverse installation needs.

  • Feature & Benifits

    Port capacities of the FDB-16PS Fiber Optic Distribution Box:
    • Splicing capacity: 12/24 Fibers
    • Patching capacity: 16 SC
    • Splitter capacity: Either One 1:16 or Two 1:8 Cassette Splitters
    Key features for the FDB-16PS Fiber Optic Distribution Box:
    • Material and Protection: Made from ABS or ABS+PC, it offers excellent durability and IP65-rated protection against dust and water, ensuring longevity in indoor and outdoor settings.
    • Compact Design: Measuring 274 x 175 x 82 mm, it saves space while providing ample capacity for fiber management.

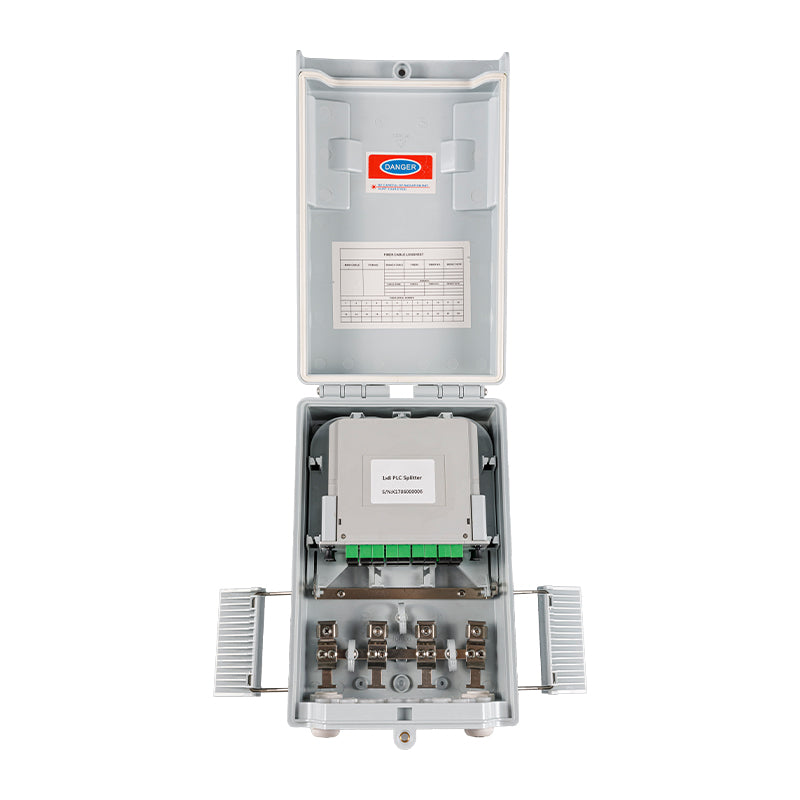

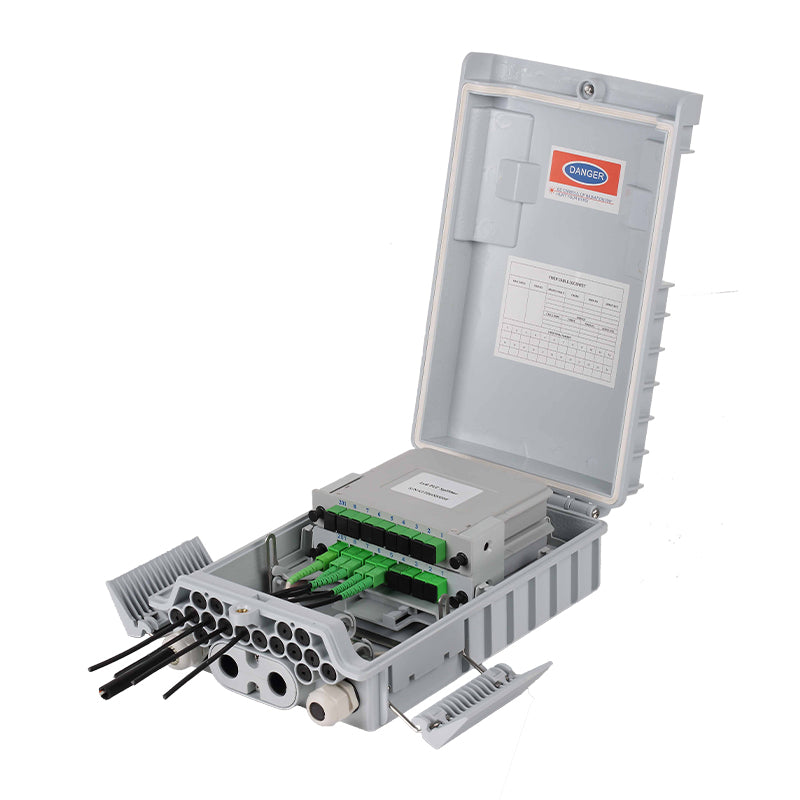

    • Splitter Compatibility: Supports a drawer-type PLC cassette splitter, configurable with either one 1:16 or two 1:8 splitters for flexible setups.

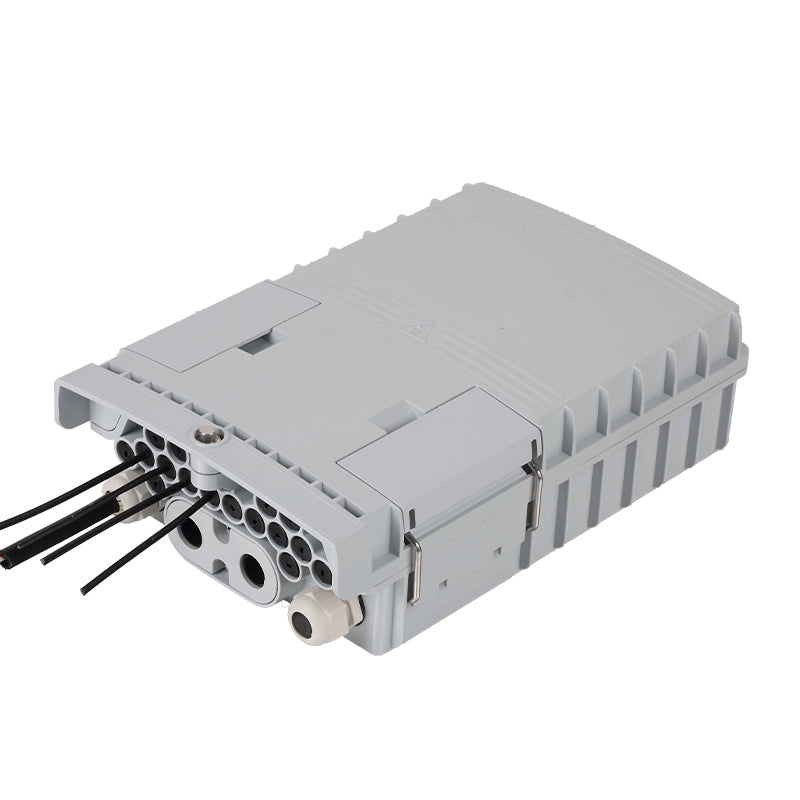

    • Versatile Ports: Includes 2 mid-span ports for uncut cables (⌀14 mm), 2 PG13.5 ports for branch cables, and 16 ports for drop cables (⌀2.0-⌀4.6 mm), meeting various connectivity needs.

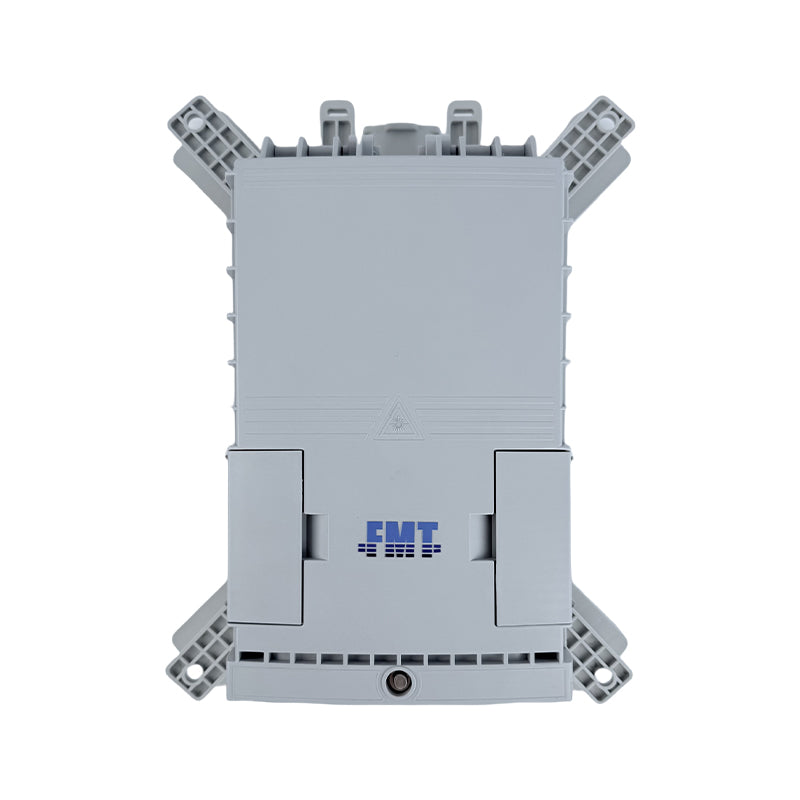

    • Secure Locking Mechanism: Features one screw lock and two hasp locks for enhanced security.

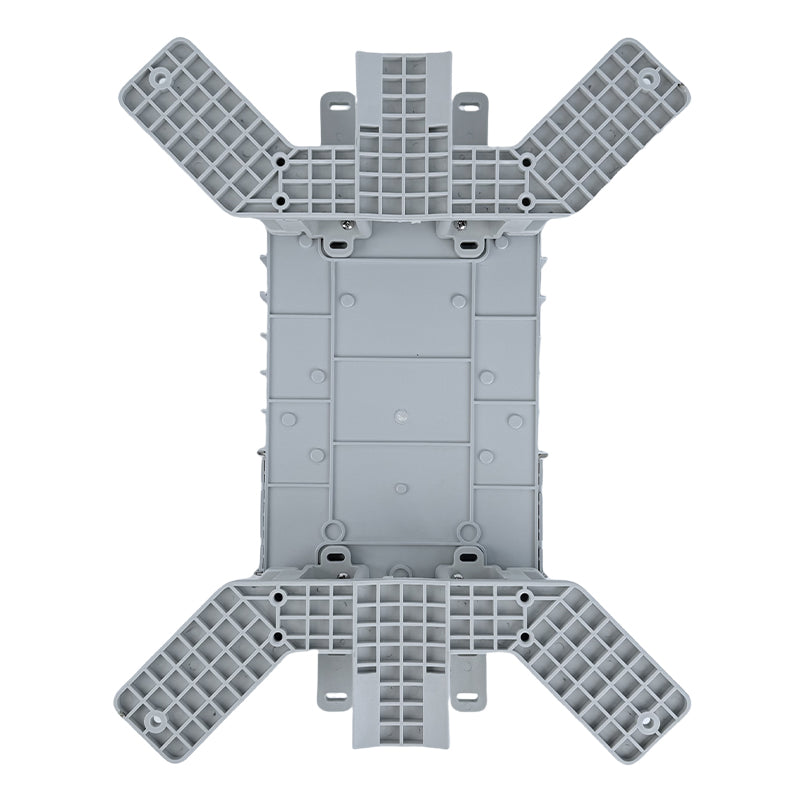

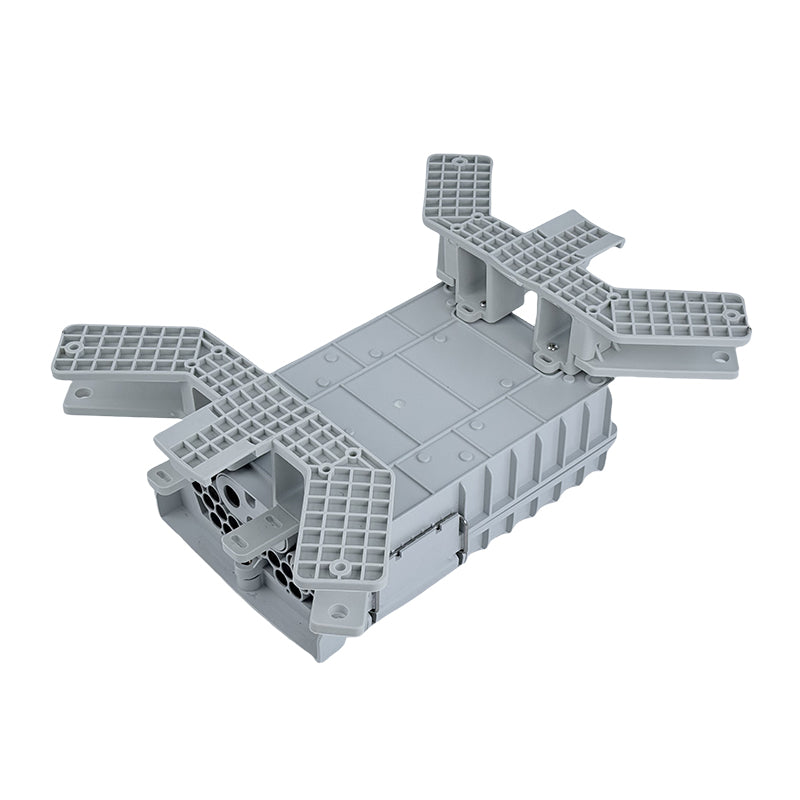

    • Easy Installation: Supports wall-mounted or pole-mounted options, providing deployment flexibility.

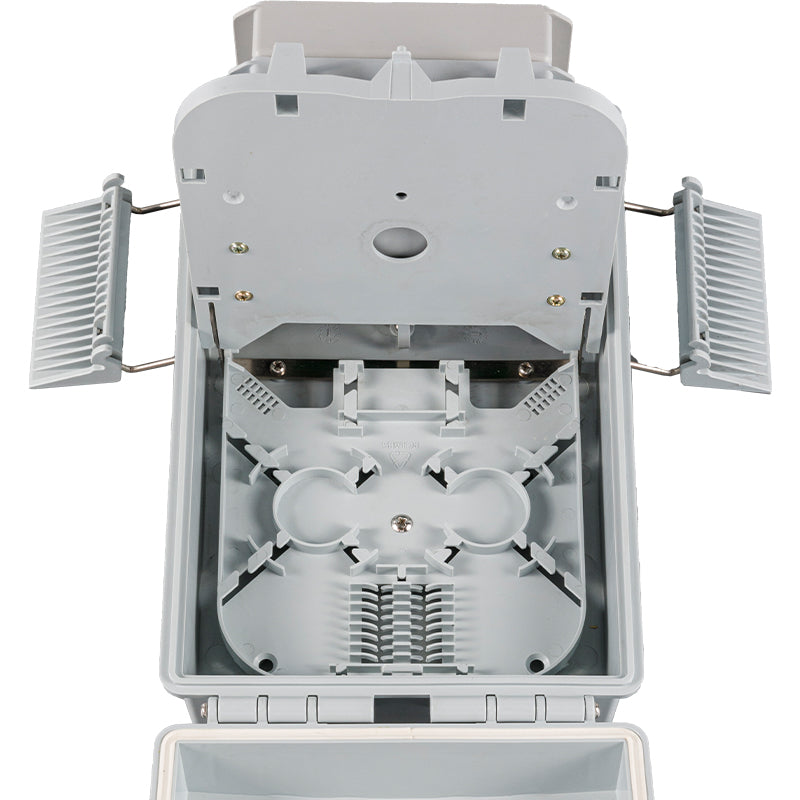

    • Splice Tray Capacity: Accommodates 8 to 16 fusion splices, ensuring efficient fiber organization.

Specifications

Part No. FDB-16PS
Color Black / White / Gray / Light Gray
Dimension 285mm x 175mm x 84mm
Material of Housing ABS or PC/ABS
Protection class IP IP65
Main Cable Ports 2 Mid-span ports
Branch Cable Ports 2 x PG13.5
Drop Cable Ports 16 x 2*3mm
Fusion Splice 12/24 Fibers
Number of Splice Tray 4 Trays (Max)
Suitable Splitter Either One 1:16 or Two 1:8 Cassette Splitters
Number of Adapters 16 SC
Mount Way Wall Mount or Pole Mount
