Name: FDB-16QS 8F 16 Ports Fiber Distribution Box
Brand: FIBERMINT
Availability: InStock

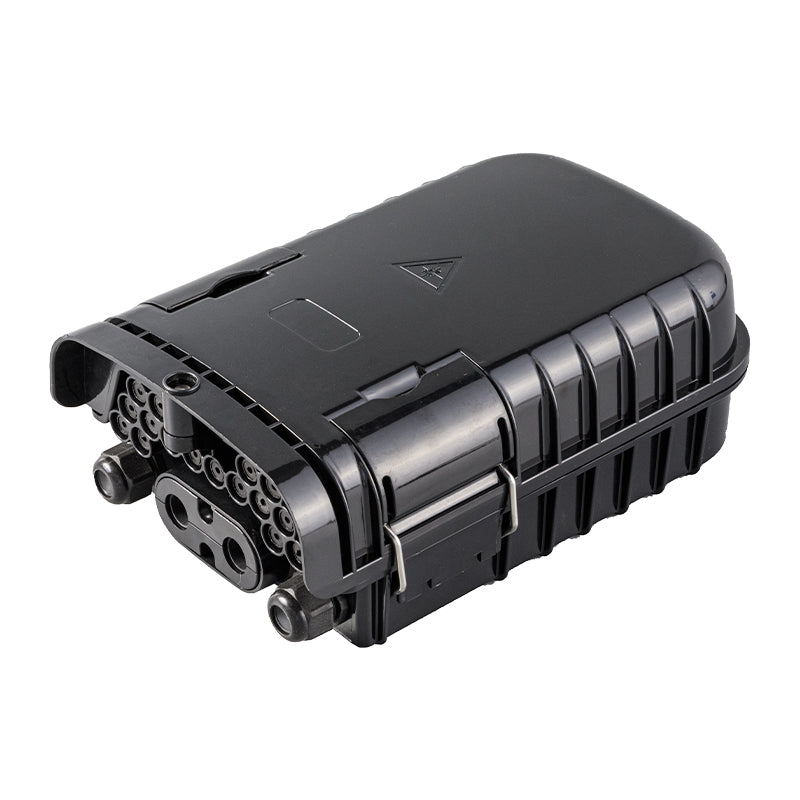

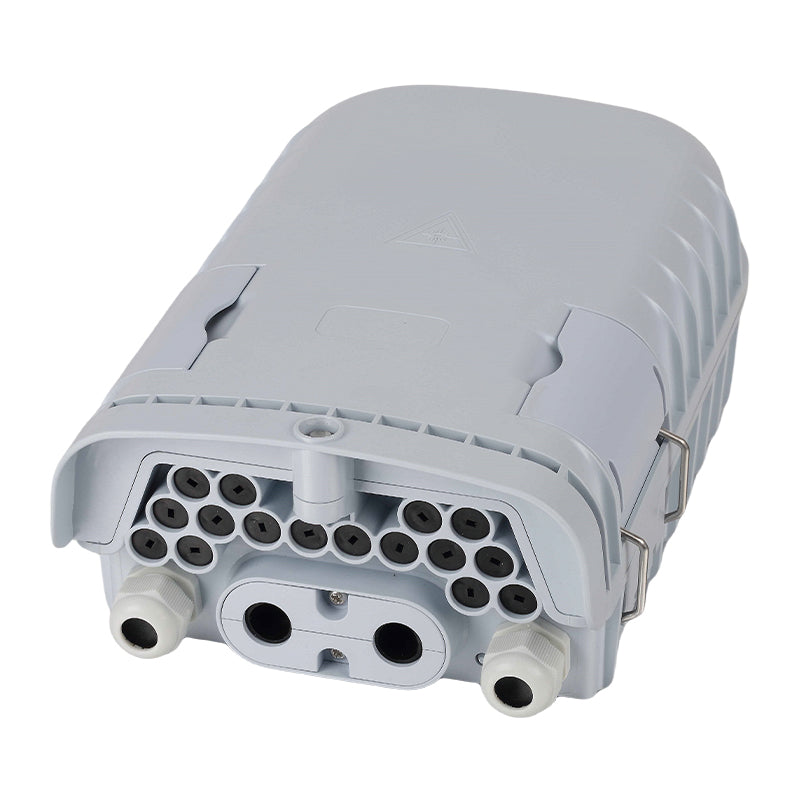

FDB-16QS 8F 16 Ports Fiber Distribution Box

B2B Inquiry

Request a Quote

Tell us what you need and the Fibermint team will reply with product options, MOQ, lead time, and OEM/ODM support.

Related Fiber Optic Products

Product Description

The FDB-16QS 8F 16 Ports Fiber Distribution Box is used as a fiber access and distribution point for terminating, splicing, splitting, and managing optical fibers between feeder cables and drop cables. It supports organized fiber management for FTTH, FTTx, and building access networks.

Application

Applicable for the FTTH project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.
Rated to IP65, suitable for outdoor wall or pole mount application.

Key Features

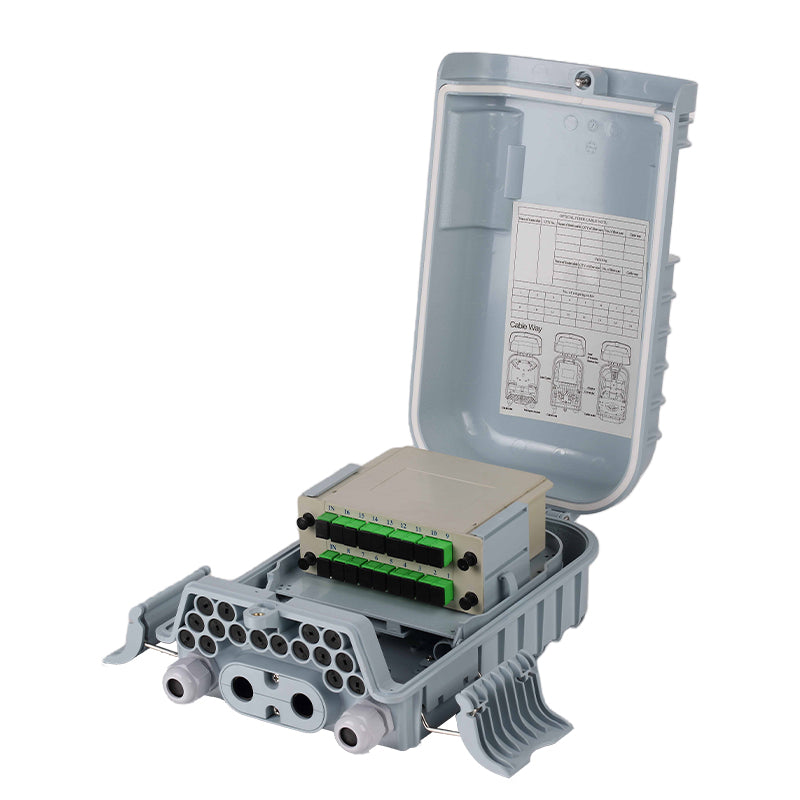

Integrated space for fiber splicing, routing, storage, and splitter installation.
Compact enclosure structure supports efficient drop cable access and maintenance.
Adapter ports and splice tray capacity can be configured for project requirements.
Designed for quick installation and organized fiber protection at access nodes.
Suitable for OEM branding and operator-specific FTTH deployment packages.

Specifications

Mechanical

Item	Specification
Part No.	FDB-16QS
Color	Light Gray
Product Type	Fiber Distribution Box
Dimension	276x172x103mm
Housing Material	PC / ABS
IP Rating	IP65
Mounting	Wall or pole mount

Optical

Item	Specification
Cable Ports	16 ports
Splicing Capacity	8 fibers
Suitable Splitter	1x16 Chassis splitters

Packing List

Item	Specification
Part No.	ODB-16Q
PCS/CTN	10
Carton Size (CM)	62x41x35CM
GW/CTN (KG)	13KGS

Frequently asked questions

Yes. We support OEM & ODM customization including logo printing, color, structure, packaging, cable configuration, and accessory options based on project requirements.
