Product Description

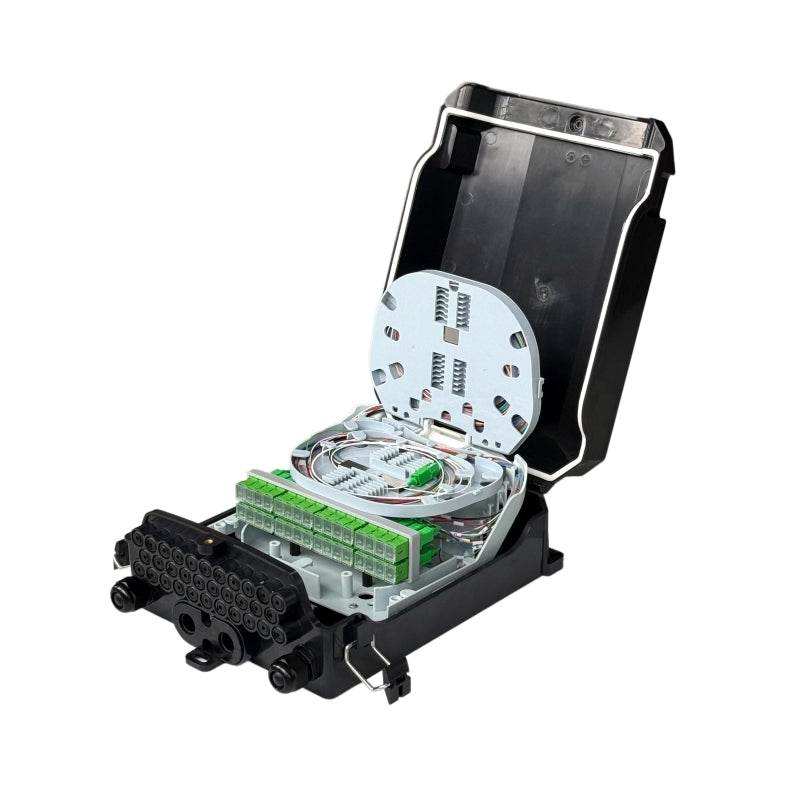

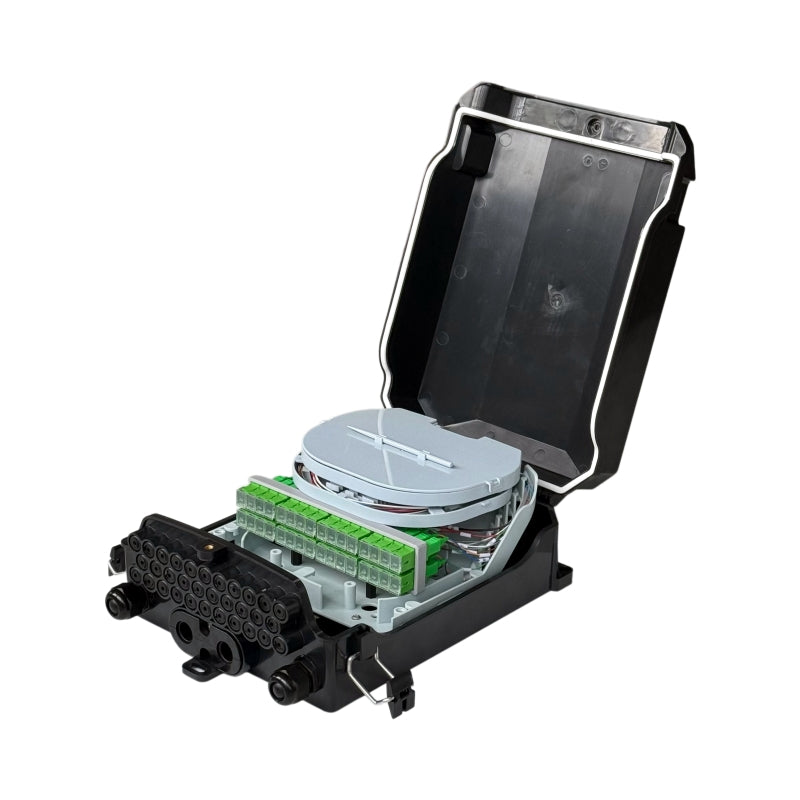

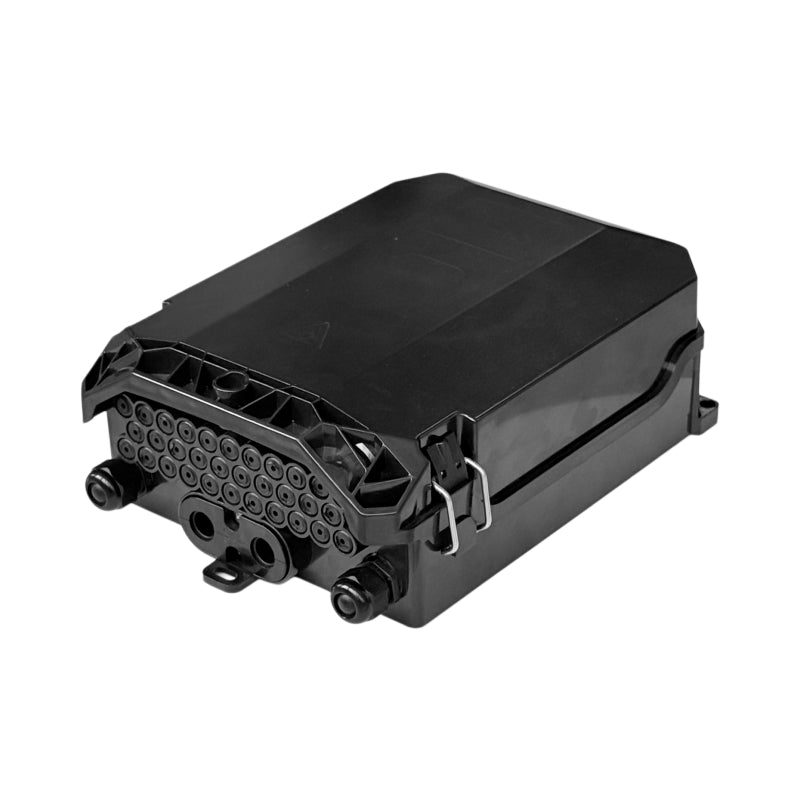

The FDB-32RN 48F 32 Ports Fiber Distribution Box is a compact FTTH fiber distribution enclosure for high-density subscriber access points in PON networks. It supports fiber splicing, patching, splitter installation, and drop cable management in one IP65-rated housing for indoor or outdoor deployment.

Application

FTTH distribution points in PON networks requiring 32-port SC/APC access and integrated PLC splitter deployment.
Outdoor or indoor fiber access nodes where compact 1×32 splitting, using two 1×16 Micro PLC splitters, is required in a single enclosure.
Wall-mounted or pole-mounted fiber distribution for feeder cable entry, branch routing, subscriber drop cable connection, and field maintenance.

Key Features

Supports 32 SC adapters for high-density FTTH drop cable access.
Includes 2 splice tray positions, with each tray supporting up to 24F splicing.
Each splice tray can integrate one 1×16 Micro PLC splitter or two 1×8 Micro PLC splitters.
Provides 32 drop cable ports for round drop cable or flat drop cable installation.
IP65-rated housing with EPDM and rubber sealing for protected outdoor and indoor use.
Supports wall mount or pole mount installation according to project requirements.

Specifications

Mechanical

Item	Specification
Part No.	FDB-32RN
Product Type	Fiber Distribution Box
Dimension	300 × 214 × 105 mm
Housing Material	PC+ABS
Sealing	EPDM and rubber sealing
IP Rating	IP65
Mounting	Wall / Pole Mount

Optical

Item	Specification
Cable Ports	2 mid-span ports, 2 branch ports, and 32 drop cable ports
Splicing Capacity	48 Fibers (Single-core)
No. of Splice Tray	2 Trays
Splices per Tray	24F / Tray
Patching Capacity	32 SC Adapters
Suitable Splitter	1×8 or 1×16 Micro PLC Splitters / Tray

Packing List

Item	Specification
Part No.	FDB-32RN-WM
PCS/CTN	10
Carton Size (CM)	46 × 34 × 58 CM
GW/CTN (KG)	17 KG

Frequently asked questions

Yes. We support OEM & ODM customization including logo printing, color, structure, packaging, cable configuration, and accessory options based on project requirements.
