Part No.: FDB-72C-72SC

FDB-72C 72-Core Floor Distribution Box

FDB-72C 72-Core Floor Distribution Box

The FDB-72C-72SC Fiber Distribution Box is designed for high-capacity fiber optic network applications, providing secure and efficient fiber management. It features an inline design with 6+6 fiber optic cable ports, making it ideal for inline riser cable installations. With an IP55 rating, the box ensures excellent protection against dust, water, and other environmental factors, making it suitable for both indoor and outdoor installations.

Specification

Dimension (WxHxD): 420 x 356 x 185 mm

Inlet / Outlet: 2 & 2 (Inline) / 2 & 2 (Inline)

Branch (Blind) ports: 2 & 2 (Inline)

Splicing capacity: 36/72 Fusion splices

Patching capacity: 72 SC Adapters

Suitable splitter: -

Packing List

Carton Size: 73x43x68CM

Pieces per Carton: 6 PCS/CTN

Request for Quotation View full details
  • Description

    The FDB-72C-72SC Fiber Distribution Box is a versatile, high-capacity solution for fiber optic networks. It is designed to hold up to 72 subscribers and acts as the termination point where the feeder cable connects with drop cables. Integrating fiber splicing, distribution, storage, and cable management in one compact unit, the box simplifies FTTX network deployment. It also features 72 adapter slots for SC or LC Duplex connectors, providing flexibility for various configurations. The durable ABS material ensures long-lasting performance, and the IP55 rating guarantees excellent protection for outdoor and harsh environment use.

  • Feature & Benifits

    Port capacities of the FDB-72C 72-Core Floor Distribution Box:
    • Splicing capacity: 36/72 Fusion splices
    • Patching capacity: 72 SC Adapters
    • Splitter capacity: -
    Key features for the FDB-72C 72-Core Floor Distribution Box:

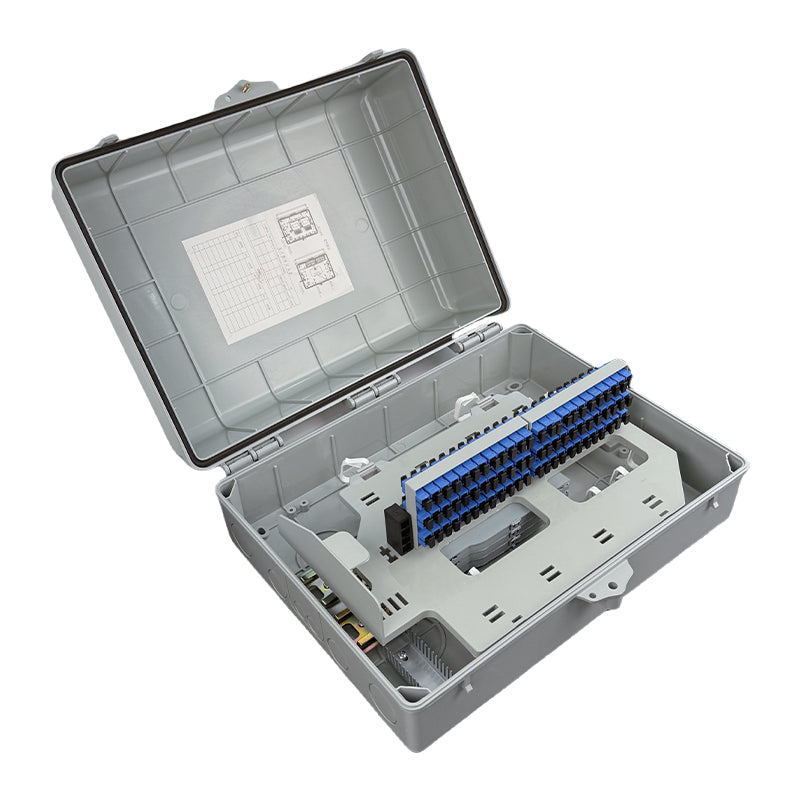

    • High Capacity: Holds up to 72 subscribers with 72 SC or LC Duplex adapter slots.
    • IP55 Protection: Enclosed structure offers water-proof, dust-proof, and anti-aging features for durability in outdoor and harsh environments.
    • Inline Design: 6+6 fiber optic ports for inline riser cable applications, offering easy cable management and improved organization.
    • All-in-One Functionality: Combines fiber splicing, storage, and distribution in a single unit to simplify network management.

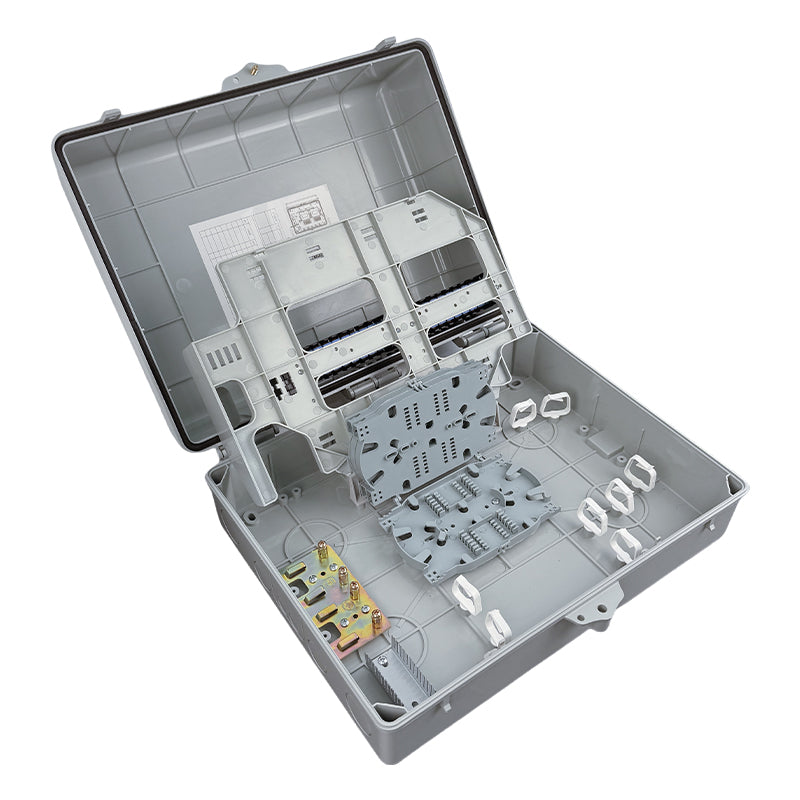

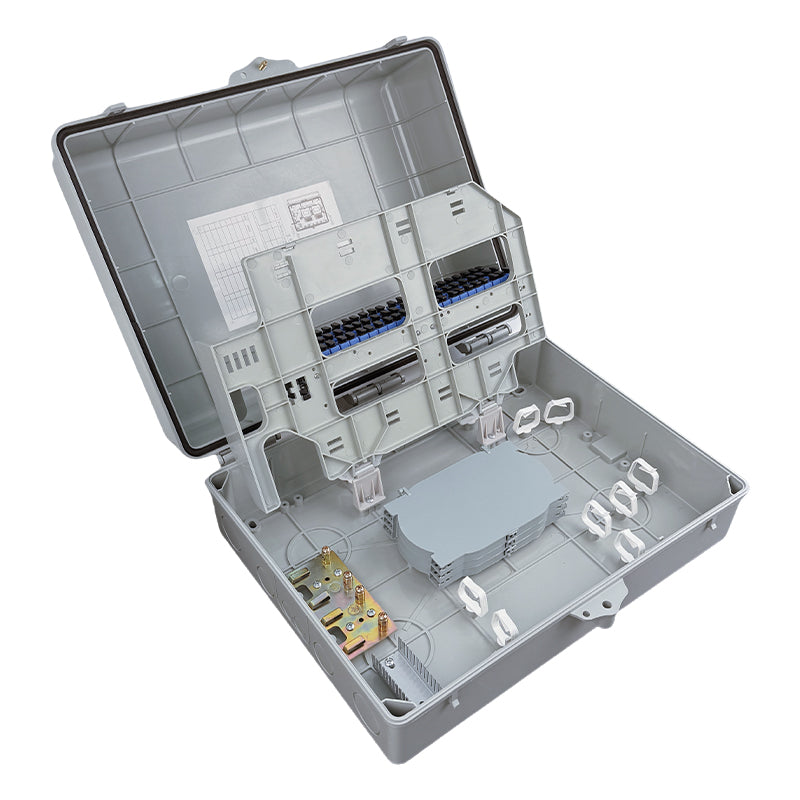

    • Easy Installation & Maintenance: The distribution panel can be flipped up for easy access, while the cassette-type SC adapter installation ensures simple maintenance.
    • Flexible Mounting Options: Can be wall-mounted or pole-mounted to fit various installation needs.
    • Environmentally Friendly: Made from RoHS-compliant ABS material for sustainability.

Specifications

Part No. FDB-72C-72SC
Color Black / White / Gray / Light Gray
Dimension 420 x 356 x 185 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 & 2 (Inline)
Branch Cable Ports 2 & 2 (Inline)
Drop Cable Ports 2 & 2 (Inline)
Fusion Splice 36/72 Fusion splices
Number of Splice Tray 3 PCS (Max.)
Suitable Splitter -
Number of Adapters 72 SC Adapters
Mount Way Wall-mounted or Pole-mounted
