Part No.: FDB-72C-72LC

FDB-72C-72LC 144F Floor Distribution Box

FDB-72C-72LC 144F Floor Distribution Box

The FDB-72C-72LC Fiber Distribution Box is engineered for high-capacity fiber optic network deployments, delivering secure and efficient fiber management. Featuring an inline design with 6+6 fiber optic cable ports, this box is optimized for inline riser cable installations. With an IP55 rating, it offers robust protection against dust, water, and environmental wear, making it an ideal choice for both indoor and outdoor applications.

Specification

Dimension (WxHxD): 420 x 356 x 185 mm

Inlet / Outlet: 2 & 2 (Inline) / 2 & 2 (Inline)

Branch (Blind) ports: 2 & 2 (Inline)

Splicing capacity: 72/144 Fusion splices

Patching capacity: 72 LC Duplex Adapters

Suitable splitter: -

Packing List

Carton Size: 73x43x68CM

Pieces per Carton: 6 PCS/CTN

Request for Quotation View full details
  • Description

    The FDB-72C-72LC Fiber Distribution Box is a high-capacity, all-in-one solution tailored for fiber optic networks. Designed to support up to 72 subscribers, it serves as a termination point where feeder cables connect to drop cables. This unit integrates fiber splicing, distribution, storage, and cable management into a single compact design, streamlining FTTX network installations. Equipped with 72 duplex LC adapter slots and 6 splice trays supporting up to 144 fusion splices, it offers exceptional flexibility and capacity. Constructed from durable ABS material and rated IP55, this box ensures reliable performance in harsh outdoor environments.

  • Feature & Benifits

    Port capacities of the FDB-72C-72LC 144F Floor Distribution Box:
    • Splicing capacity: 72/144 Fusion splices
    • Patching capacity: 72 LC Duplex Adapters
    • Splitter capacity: -
    Key features for the FDB-72C-72LC 144F Floor Distribution Box:
    • High Capacity: Supports up to 72 subscribers with 72 duplex LC adapter slots and a maximum of 144 fusion splices.
    • IP55 Protection: Fully enclosed structure provides waterproof, dustproof, and anti-aging properties, ensuring durability in outdoor and harsh conditions.
    • Inline Design: Features 6+6 fiber optic ports for seamless inline riser cable applications, enhancing cable organization and management.
    • All-in-One Functionality: Combines splicing, storage, and distribution in a single unit, simplifying network deployment and maintenance.

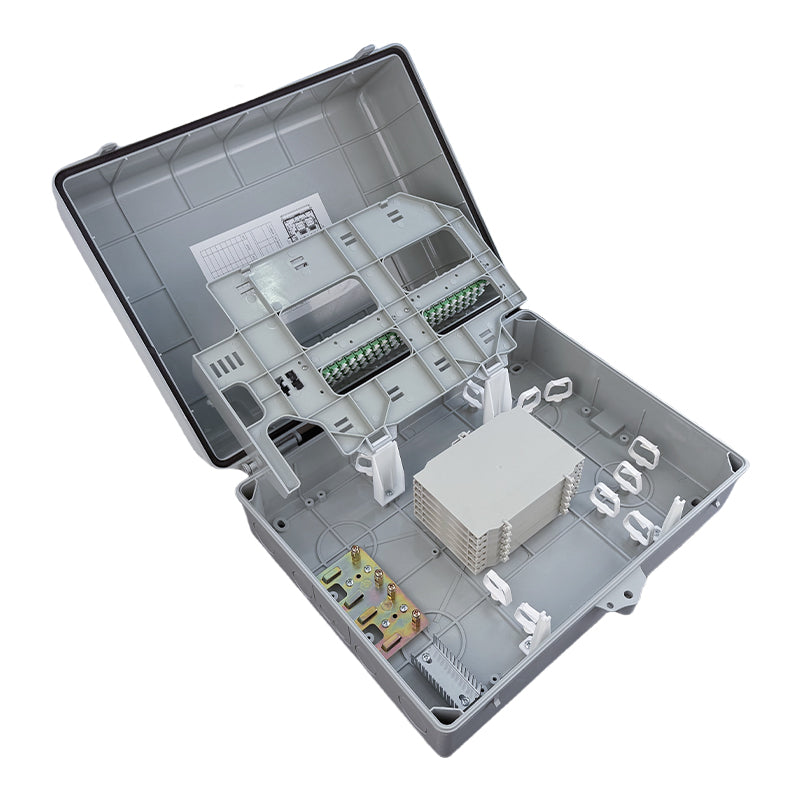

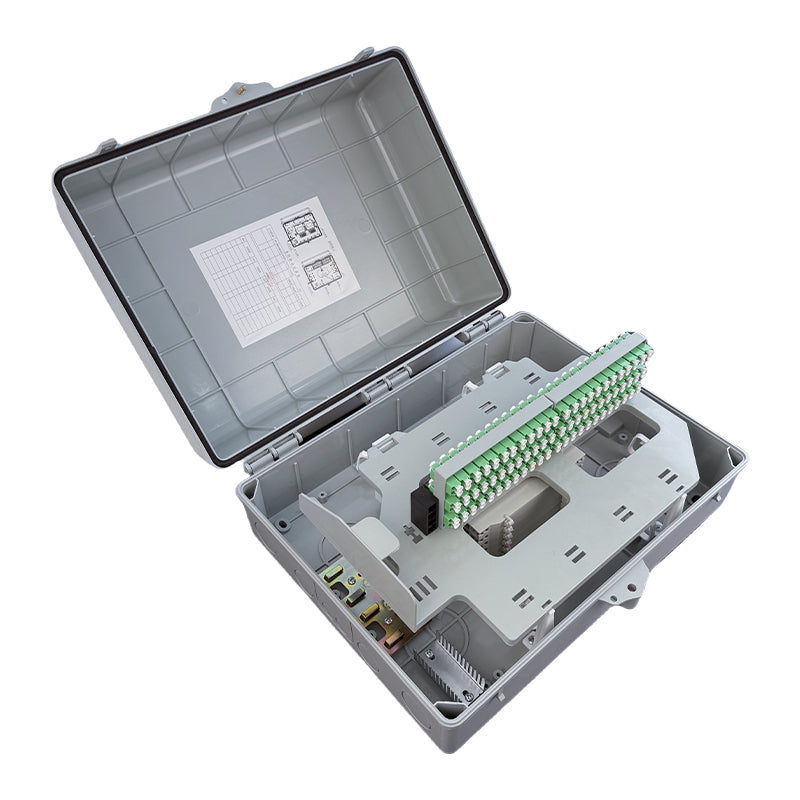

    • Easy Installation & Maintenance: Flip-up distribution panel and cassette-type LC adapter installation allow for quick access and hassle-free upkeep.
    • Versatile Mounting Options: Supports wall-mounted or pole-mounted installations to accommodate diverse deployment scenarios.
    • Eco-Friendly Design: Manufactured from RoHS-compliant ABS material for sustainability and environmental responsibility.

Specifications

Part No. FDB-72C-72LC
Color Black / White / Gray / Light Gray
Dimension 420 x 356 x 185 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 & 2 (Inline)
Branch Cable Ports 2 & 2 (Inline)
Drop Cable Ports 2 & 2 (Inline)
Fusion Splice 72/144 Fusion splices
Number of Splice Tray 6 PCS (Max.)
Suitable Splitter -
Number of Adapters 72 LC Duplex Adapters
Mount Way Wall-mounted or Pole-mounted
