Part No.: ODB-72C-4S

ODB-72C 64-Core FTTH Distribution Box

ODB-72C 64-Core FTTH Distribution Box

The ODB-72C-4S Fiber Distribution Box is designed for FTTX communication networks, offering a high level of protection and flexibility in fiber optic cable management. With an IP55 rating, it is built to withstand harsh environments, ensuring protection from dust, water, and aging. The box is ideal for outdoor or indoor installations, featuring 6+6 fiber cable holes in an inline design, making it suitable for inline riser cables. This box is also perfect for integrating fiber splicing, splitting, and distribution in a single unit.

Specification

Dimension (WxHxD): 420 x 356 x 185 mm

Inlet / Outlet: 2 & 2 (Inline) / 2 & 2 (Inline)

Branch (Blind) ports: 2 & 2 (Inline)

Splicing capacity: 36/72 Fusion splices

Patching capacity: 64 SC or LC Duplex Adapters

Suitable splitter: 1:16 Cassette Splitter x 4pcs

Packing List

Carton Size: 73x43x68CM

Pieces per Carton: 6 PCS/CTN

Request for Quotation View full details
  • Description

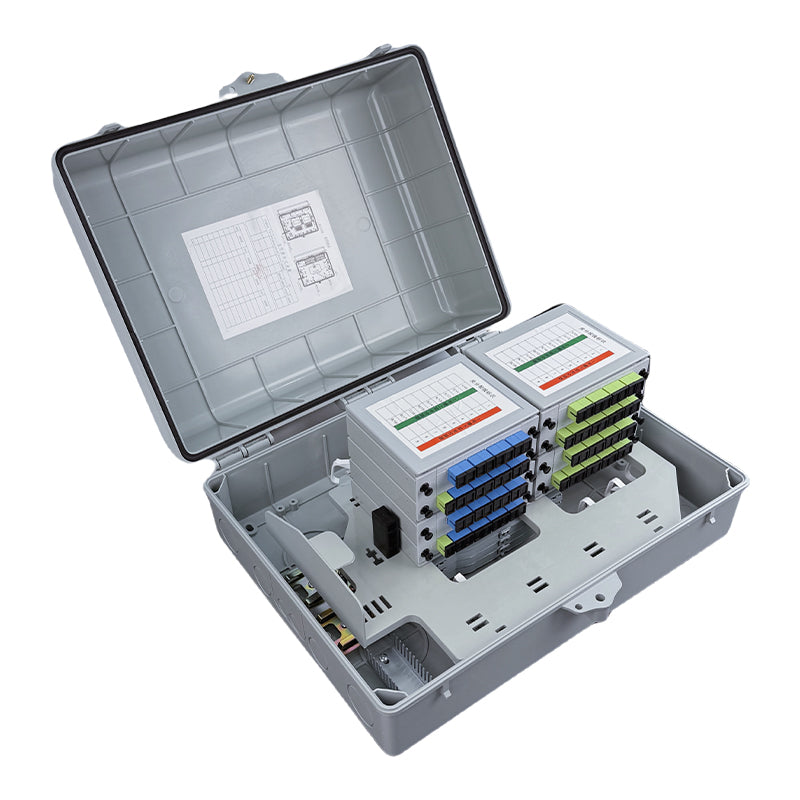

    The ODB-72C-4S is a robust and versatile fiber distribution box that supports up to 72 subscribers, acting as a termination point for feeder cables and drop cables. Its design integrates fiber splicing, splitting, and distribution, offering an all-in-one solution for FTTX network installations. The box comes equipped with two fiber distribution brackets, allowing the installation of four 1x16 SC cassette splitters or two 1x32 SC cassette splitters, providing scalability and ease of use for your network needs. This makes it perfect for organizing and managing fiber connections in a clean, efficient manner.

  • Feature & Benifits

    Port capacities of the ODB-72C 64-Core FTTH Distribution Box:
    • Splicing capacity: 36/72 Fusion splices
    • Patching capacity: 64 SC or LC Duplex Adapters
    • Splitter capacity: 1:16 Cassette Splitter x 4pcs
    Key features for the ODB-72C 64-Core FTTH Distribution Box:

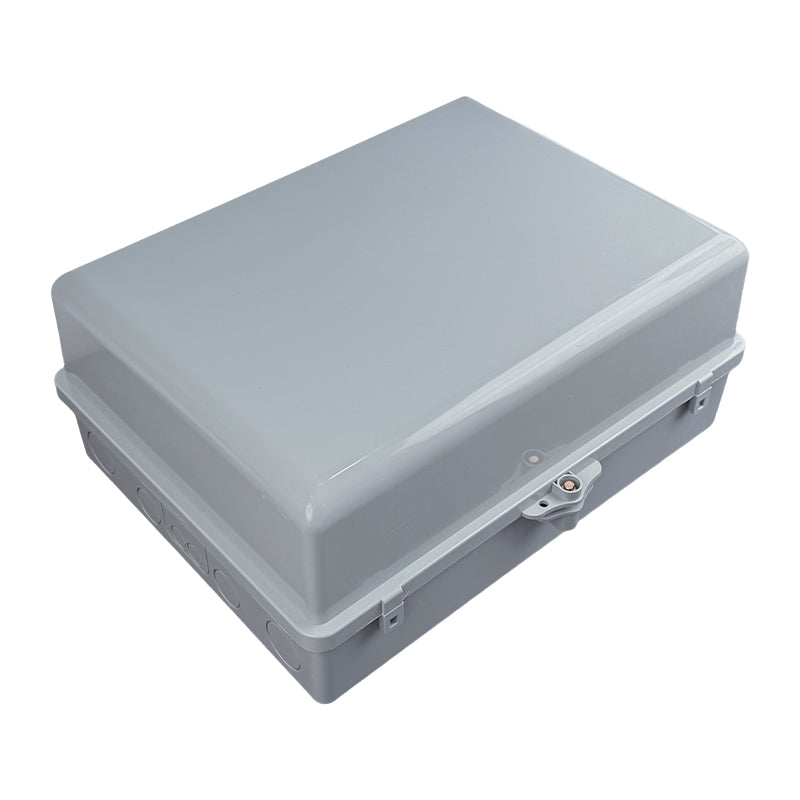

    • Total Enclosed Structure: Provides maximum protection from environmental elements like dust, water, and UV rays.
    • High IP Rating: With an IP55 rating, it is suitable for both indoor and outdoor installations, ensuring long-term reliability in various conditions.
    • Inline Riser Cable Compatibility: Equipped with 6+6 cable holes for inline riser cables, making it an ideal choice for vertical installations.
    • Flexible Fiber Distribution: Comes with two fiber distribution brackets that support the installation of up to four 1x16 SC cassette splitters or two 1x32 SC cassette splitters.
    • Compact and Easy Installation: Features a wall-mounted or pole-mounted design with a simple installation process and easy maintenance access.
    • Material: Constructed with ABS material, which is wet-proof, dust-proof, and anti-aging, complying with RoHS standards for environmental safety.

Specifications

Part No. ODB-72C-4S
Color Black / White / Gray / Light Gray
Dimension 420 x 356 x 185 mm
Material of Housing ABS or PC/ABS
Protection class IP IP55
Main Cable Ports 2 & 2 (Inline)
Branch Cable Ports 2 & 2 (Inline)
Drop Cable Ports 2 & 2 (Inline)
Fusion Splice 36/72 Fusion splices
Number of Splice Tray 3 PCS (Max.)
Suitable Splitter 1:16 Cassette Splitter x 4pcs
Number of Adapters 64 SC or LC Duplex Adapters
Mount Way Wall-mounted or Pole-mounted
