Part No.: GJS-D1449

144-Core 8 Round ports Fiber Dome Closure

144-Core 8 Round ports Fiber Dome Closure

Specification

Dimension (WxHxD): 455 × Ø188 mm

Inlet / Outlet: 1 Oval Port / 8 Round Port

Branch (Blind) ports: N/A

Splicing capacity: 144 Fusion splices

Patching capacity: N/A

Suitable splitter: N/A

Collapsible row

Carton Size: 60.0*48.5*48.5CM

PCS/CTN: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

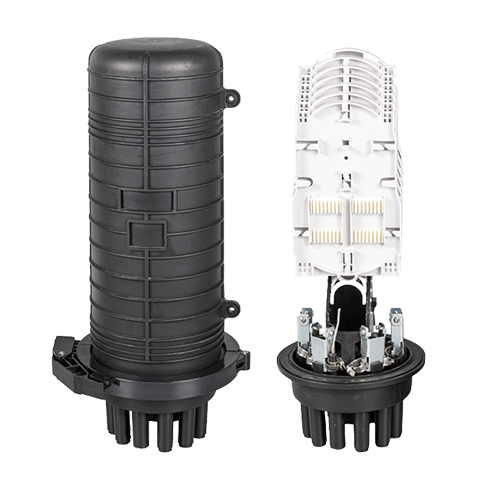

    The GJS-D1449 is a high-performance fiber optic splice closure that ensures the secure sealing and protection of fiber optic splices in demanding conditions. Constructed from durable engineering plastic, the closure is equipped with 1 oval port and 8 circular ports, accommodating up to 144 fibers across 6 splice trays. The heat-shrinkable sealing system delivers excellent resistance to water and dust, making it ideal for outdoor installations. With a design that supports both wall-mounted and pole-mounted configurations, the GJS-D1449 offers flexibility and reliability for a wide range of fiber optic network deployments.

  • Feature & Benifits

    Port capacities of the 144-Core 8 Round ports Fiber Dome Closure:
    • Splicing capacity: 144 Fusion splices
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 144-Core 8 Round ports Fiber Dome Closure:
    • IP68 Protection: Ensures maximum resistance against water, dust, and environmental challenges, suitable for aerial, duct, direct buried, and pole-mounted installations.
    • High Capacity: Supports up to 144 fibers across 6 splice trays, with additional storage for uncut cables.
    • Durable Construction: Made from high-quality MPP engineering plastic, offering excellent mechanical performance and chemical resistance.
    • Reliable Sealing System: Features heat-shrinkable sleeves and reusable rubber grommets to maintain a secure seal.
    • Versatile Installation: Designed for wall-mounted or pole-mounted setups, offering flexibility in deployment options.

General Specifications

Part No. GJS-D1449
Color Black (Customizable)
Dimension 455 × Ø188 mm
Material of Housing MPP
Protection class IP IP68
Main Cable Ports 1 Oval Port
Branch Cable Port N/A
Drop Cable Ports 8 Round Port
Fusion Splice 144 Fusion splices
Number of Splice Tray 6 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Underground / Aerial / Pole / Wall Mounted

  • Accessories

    • Aerial kit / Pole-mounting kit / Wall-mounting kit * 1 SET
    • Fiber Splice Sleeves (1.2/60mm) * 6 BAGS (24PCS/BAG)
    • Nylon Tie ( 3X100 mm) * 9 PCS
    • Buffer Tube (50mm) * 8 PCS
    • Branch off Clip * 1 PC
    • Heat Shrink Sleeve Round (Ø40 - 45mm) * 8 PCS
    • Heat Shrink Sleeve Oval (Ø100 - 105) * 1 PC
    • Aluminum foil * 1 PC

  • Packing List

    Configuration - Standard accessories, no adapters nor pigtails included.

    • Carton Size - 60.0*48.5*48.5CM
    • Carton G.W. - 20 KG
    • Carton Capacity - 6 PCS/CTN

  • Regulatory Compliance/Certifications
