Part No.: GJS-M1446D

2-IN 4-OUT Mechanical Seal Dome Closure

2-IN 4-OUT Mechanical Seal Dome Closure

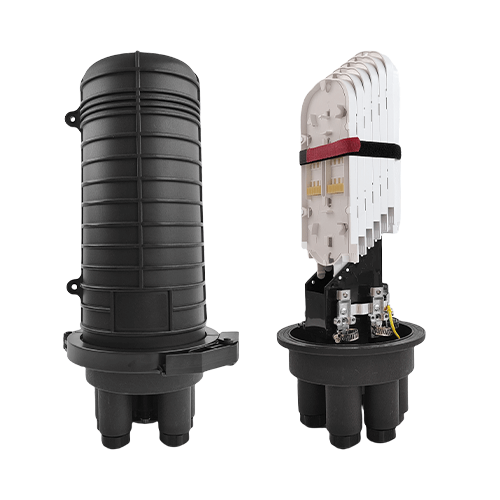

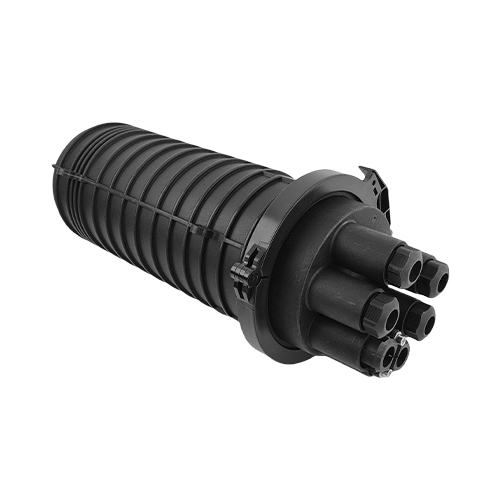

The GJS-M1446D Fiber Optic Dome Closure is engineered to protect fiber optic splice points in outdoor environments, offering robust defense against water ingress and other environmental factors. With an IP68 rating, this dome closure is suitable for aerial, wall-mounted, pole-mounted, and direct-buried installations, making it ideal for versatile deployment in FTTX networks.

Specification

Dimension (HxDia.): 460 x 189 x 225mm (Including Clamp)

Inlet / Outlet: 2 Mid-span Port / 4 Round Port

Sealing Type:

Splicing capacity: 144 Fusion splices

Packing List

Carton Size: 48x46x46CM

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

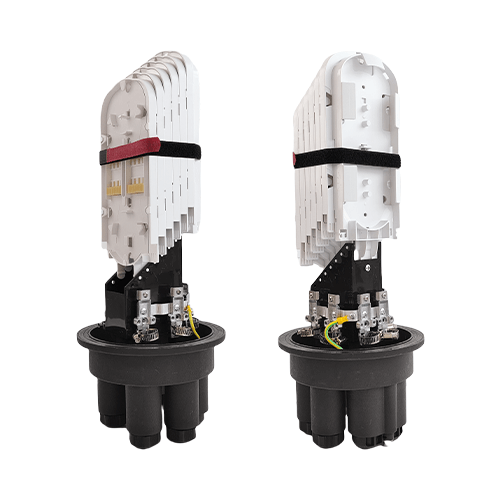

    The GJS-M1446D Dome Closure boasts a robust enclosure constructed from PP+GF, engineered to endure extreme environments. It features a mechanical sealing technique for cable ports and a silicone seal ring with clamps for the dome, guaranteeing superior reliability and safeguarding. The closure accommodates up to 144 single-core fiber splices, distributed over six splice trays, each with a 24-fiber capacity. With several entry ports for mid-span and circular cables, the GJS-M1446D provides adaptable arrangements to meet diverse networking requirements.

  • Feature & Benifits

    Port capacities of the 2-IN 4-OUT Mechanical Seal Dome Closure:
    • Splicing capacity: 144 Fusion splices
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 2-IN 4-OUT Mechanical Seal Dome Closure:
    • High Splice Capacity: Supports up to 144 single-core fibers across 6 splice trays.
    • IP68 Protection: Rated for outdoor use, providing excellent water and dust resistance.
    • Flexible Installation: Suitable for aerial, wall, pole-mounted, and direct-buried applications.
    • Reliable Sealing: Mechanical sealing for cable ports and silicone seal ring with clamps for enclosure integrity.
    • Durable Construction: Enclosure made from PP+GF for enhanced durability in challenging environments.
    • Versatile Cable Entry: Includes 2 mid-span ports (Ø15-18mm) and 4 round ports (Ø6-18mm) for diverse cable configurations.
    • Comprehensive Accessories: Includes various rubber plugs and a ground wire for easy installation and secure connections.

Specifications

Part No. GJS-M1446D
Color Black (customizable )
Dimension 460 x 189 x 225mm (Including Clamp)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 Mid-span Port
Cable Exit port 4 Round Port
Fusion Splice 144 Fusion splices
Number of Splice Tray 6 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Aerial / Pole-mounted / Wall-mounted
