Part No.: GJS-M0039

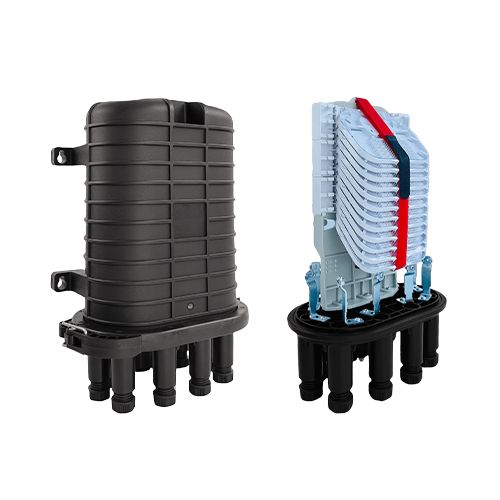

GJS-M0039 288FO 8 Round ports Fiber Dome Closure

GJS-M0039 288FO 8 Round ports Fiber Dome Closure

The GJS-M0039 Fiber Dome Closure provides robust mechanical protection and fiber management for outdoor environments. With its IP68 rating, this closure is ideal for secure splicing and passive component integration in a wide range of applications, including aerial, wall-mounted, and pole-mounted installations. Its design makes it suitable for mid-span cable splicing and distribution in fiber optic networks.

Specification

Dimension (HxDia.): 420x309x175mm

Inlet / Outlet: 2 Mid-span ports / 6 Round Port (Mechanical Seal)

Sealing Type:

Splicing capacity: 144/288FO

Packing List

Carton Size: 63x63x58cm

Pieces per Carton: 4PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M0039 Dome Closure is engineered with high-quality reinforced PP housing and stainless steel (SUS 304) external parts, ensuring both durability and resistance to harsh environmental conditions. This mechanical-seal closure supports up to 288 fiber splices, with a maximum of 12 splice trays, and can accommodate 1:8 PLC splitters for advanced fiber management. With its mid-span ports for uncut cable and multiple branch cable ports, the closure offers versatile options for fiber routing. Designed to last up to 20 years and built with UV resistance, this dome closure ensures long-term reliability.

  • Feature & Benifits

    Port capacities of the GJS-M0039 288FO 8 Round ports Fiber Dome Closure:
    • Splicing capacity: 144/288FO
    • Patching capacity: -
    • Splitter capacity: -
    Key features for the GJS-M0039 288FO 8 Round ports Fiber Dome Closure:
    • Durable Construction: The housing is made from reinforced PP material, with external stainless steel parts (SUS 304) for enhanced durability and impact resistance.
    • High Capacity: Accommodates up to 288 fiber splices, with support for 12 splice trays and 1:8 micro PLC splitters.
    • IP68 Protection: Offers full protection against dust and water ingress, suitable for challenging outdoor conditions.
    • Mechanical Sealing: Uses a mechanical seal with nut axial compression for secure and reliable cable protection.
    • Flexible Installation: Suitable for aerial, wall-mounted, and pole-mounted installations, making it adaptable to various installation environments.
    • Mid-span Port Support: Features two mid-span ports for uncut cable, allowing efficient management of through cables.

Specifications

Part No. GJS-M0039
Color Black (customizable )
Dimension 420x309x175mm
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 Mid-span ports
Cable Exit port 6 Round Port (Mechanical Seal)
Fusion Splice 144/288FO
Number of Splice Tray 12 PCS (Max.)
Suitable Splitter -
Number of Adapters -
Mount Way Underground / Aerial / Pole / Wall Mounted
