Part No.: GJS-NJ1447

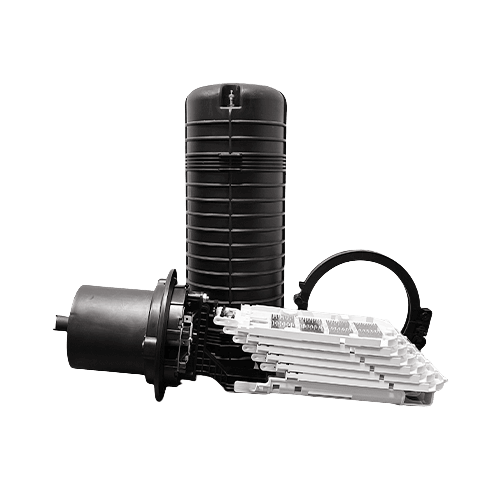

288FO Gel Cable Sealing Dome Closure

288FO Gel Cable Sealing Dome Closure

The GJS-NJ1447 Gel Cable Sealing Dome Closure uses advanced gel sealing technology to achieve IP68 protection, making it perfect for demanding environments like aerial, pedestal, and underground installations up to 5 meters deep. It ensures reliable protection for fiber optic splices in the harshest conditions.

Specification

Dimension (HxDia.): 590x262x224 mm (Include clamp)

Inlet / Outlet: 6 Round Ports / -

Sealing Type: Compressed Gel for Cable Sealing

Splicing capacity: 144/288FO

Packing List

Carton Size: 63x58x53CM

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

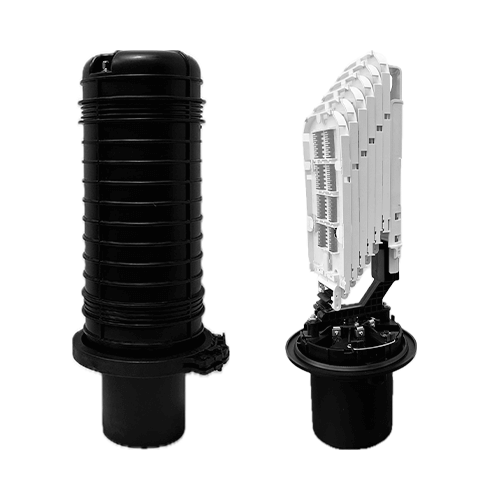

    The GJS-NJ1447 Gel Cable Sealing Dome Closure provides exceptional environmental protection for fiber optic cable splice points. Utilizing advanced compressed-gel cable seals, this single-ended, O-ring sealed dome closure ensures a secure and durable seal against water, dust, and other contaminants. Capable of accommodating up to 144 or 288 splices across 6 splice trays, this closure is perfect for high-density applications. Its IP68-rated design allows it to withstand challenging conditions, making it suitable for aerial, pedestal, and underground installations, including depths of up to 5 meters.

  • Feature & Benifits

    Port capacities of the 288FO Gel Cable Sealing Dome Closure:
    • Splicing capacity: 144/288FO
    • Patching capacity: -
    • Splitter capacity: -
    Key features for the 288FO Gel Cable Sealing Dome Closure:

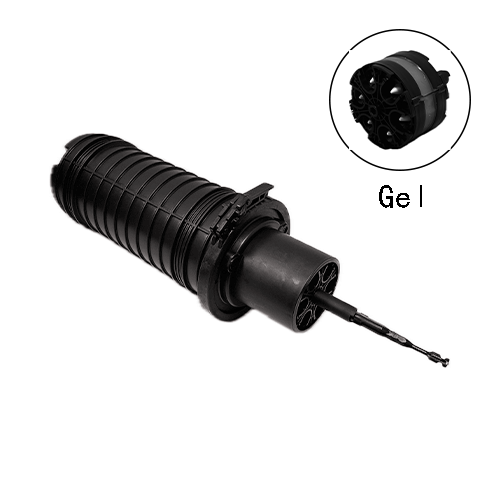

    • Compressed Gel Cable Sealing: Ensures superior environmental protection with IP68 rating.
    • Dome-to-Base Clamp with O-ring: Provides a secure and reliable seal between the dome and base.

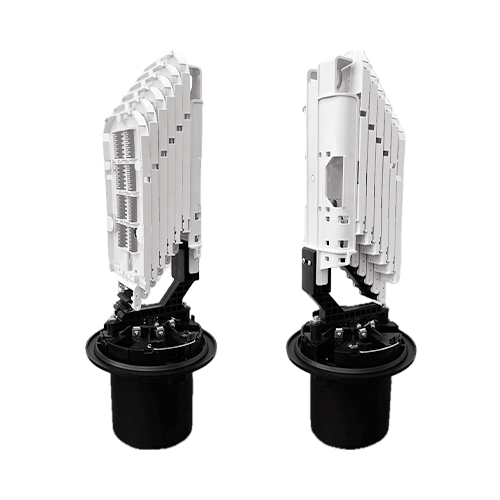

    • High Splice Capacity: Accommodates up to 288 fibers across 6 trays, supporting both 24 and 48 FO configurations.
    • Durable Construction: Reinforced PP housing and PA6 clamp offer excellent mechanical strength and impact resistance (IK10).
    • Versatile Cable Ports: 6 round ports support cable diameters from Ø9 to 25mm.
    • Adaptable Installation: Suitable for aerial, pedestal, and underground applications.

Specifications

Part No. GJS-NJ1447
Color Black / White / Gray / Light Gray
Dimension 590x262x224 mm (Include clamp)
Material of Housing ABS or PC/ABS
Protection class IP IP68
Main Cable Ports 6 Round Ports
Branch Cable Ports -
Drop Cable Ports -
Fusion Splice 144/288FO
Number of Splice Tray 6 Trays (Max.)
Suitable Splitter -
Number of Adapters -
Mount Way Wall / Pole / Aerial / Underground

  • Accessories

    • Heat Shrink Tube x12
    • Cable Tie x10
    • Protective Tube x1
    • Cross Hose Clamp x2
    • Straight Hose Clamp x4
    • Straight Hose Clamp (Bigger) x6
    • Flat Washer x4
    • Self-Tapping Screw x4
    • Plastic Expansion Pipe x4
    • Spiral Wrap Tube x1
    • Velcro (Hook and Loop Fastener) x5
    • Protective Tube (43cm) x18
    • Plastic Plug x4
    • Cable Tie (3*150mm) x36
    • Spiral Wrap Tube (65cm) x1
    • Spiral Wrap Tube (98cm) x1
    • Adhesive-Backed Fuzzy Cloth x3
    • Instruction Manual x1

  • Packing List

    Configuration - Standard accessories, no adapters nor pigtails included.

    • Carton Size - 63x58x53CM
    • Carton G.W. - -
    • Carton Capacity - 4 PCS/CTN

  • Regulatory Compliance/Certifications
