Part No.: GJS-M5768E

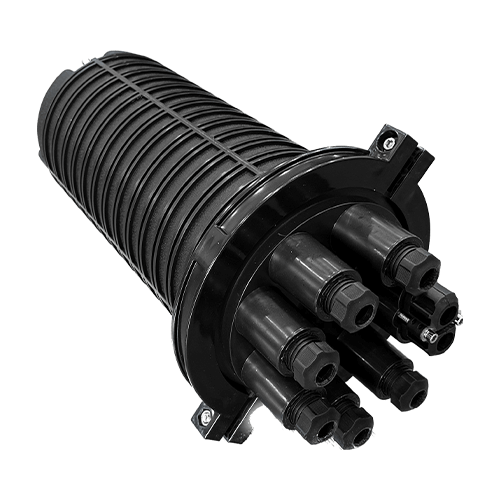

GJS-M5768E 576FO Mechanical Seal Fiber Dome Closure

GJS-M5768E 576FO Mechanical Seal Fiber Dome Closure

The GJS-M5768E Fiber Optic Dome Closure provides strong protection for fiber splice points from environmental elements, especially water infiltration. With an IP68 rating, it is ideal for outdoor use in various installations such as aerial, pole-mounted, and direct burial, guaranteeing dependable performance even in severe conditions.

Specification

Dimension (HxDia.): 550xØ305mm

Inlet / Outlet: 2 Mid-span ports / 6 Round Ports

Sealing Type:

Splicing capacity: 288/576 Fusion splices

Packing List

Carton Size: 30.5x29.5x56CM

Pieces per Carton: 1 PC/CTN

Download File
Request for Quotation View full details

  • Description

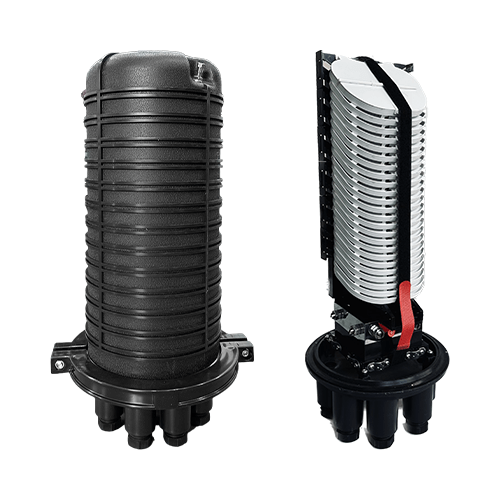

    The GJS-M5768E Dome Closure, made from superior engineering plastic, offers outstanding mechanical properties, hydrolysis resistance, and chemical durability. It can accommodate up to 576 single-core fusion splices over 24 splice trays arranged in a booklet format, providing considerable capacity and flexibility for fiber management. The closure's design includes ports for uncut cables to facilitate loop-through management and is compatible with micro PLC splitters in configurations from 1x8 to 1x16.

  • Feature & Benifits

    Port capacities of the GJS-M5768E 576FO Mechanical Seal Fiber Dome Closure:
    • Splicing capacity: 288/576 Fusion splices
    • Patching capacity: -
    • Splitter capacity: 1:16 Micro PLC Splitter
    Key features for the GJS-M5768E 576FO Mechanical Seal Fiber Dome Closure:
    • High-Quality Material: The housing is made from engineering plastic known for its mechanical robustness and resistance to environmental factors.

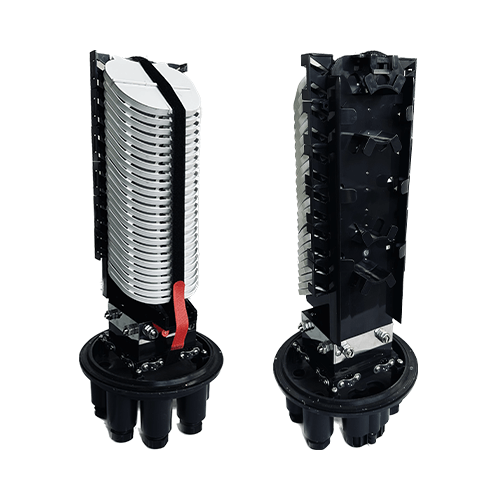

    • Extensive Splicing Capacity: Can accommodate a maximum of 576 fusion splices with 24 trays, each tray supporting up to 24 single-core splices.
    • Environmental Resistance: Offers IP68-rated protection against dust and water, ensuring functionality in various environmental settings.
    • Flexible Cable Management: Features uncut cable ports for seamless loop-through cable integration.
    • Efficient Fiber Routing: Maintains a fiber bend radius greater than 30mm, promoting efficient fiber management and minimizing signal loss.
    • Versatile Installation Options: Suitable for aerial, pole-mounted, or direct buried installations, providing flexibility based on deployment needs.

Specifications

Part No. GJS-M5768E
Color Black (customizable )
Dimension 550xØ305mm
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 Mid-span ports
Cable Exit port 6 Round Ports
Fusion Splice 288/576 Fusion splices
Number of Splice Tray 24 PCS (Max.)
Suitable Splitter 1:16 Micro PLC Splitter
Number of Adapters -
Mount Way Aerial / Pole-mounted / Direct buried
