Part No.: GJS-D0039C

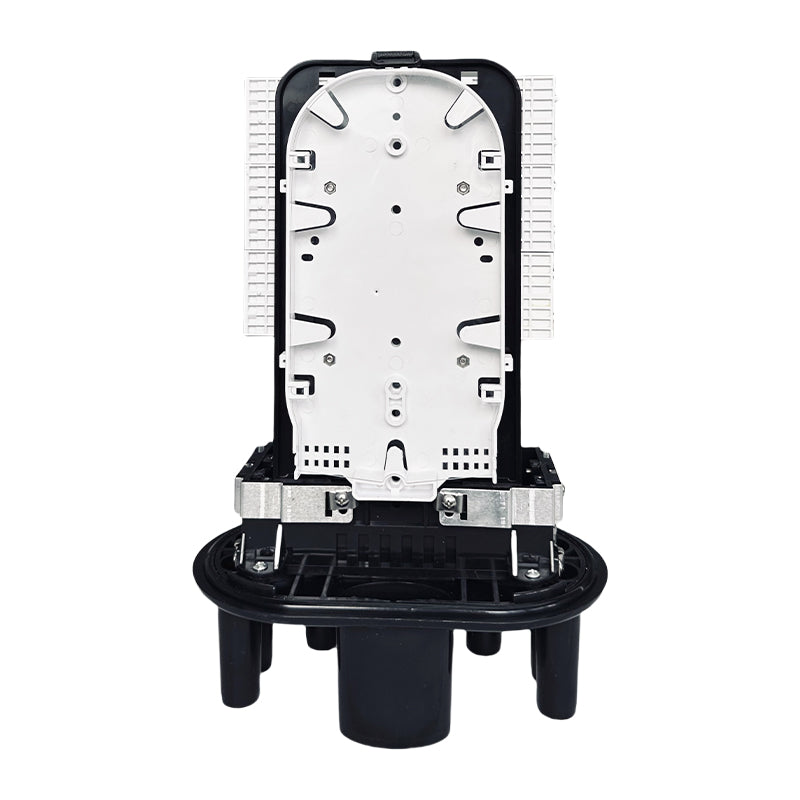

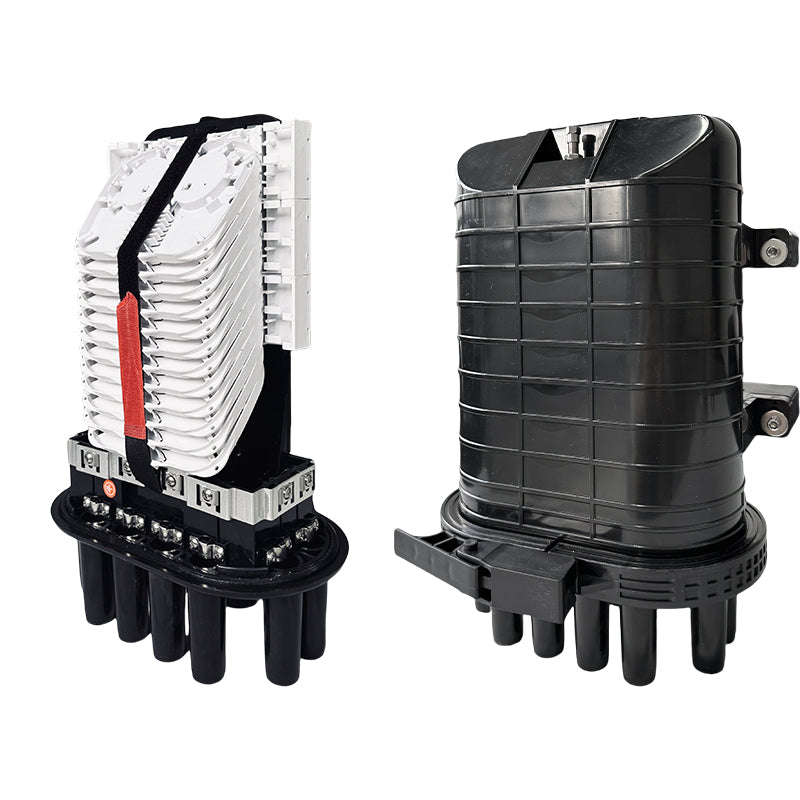

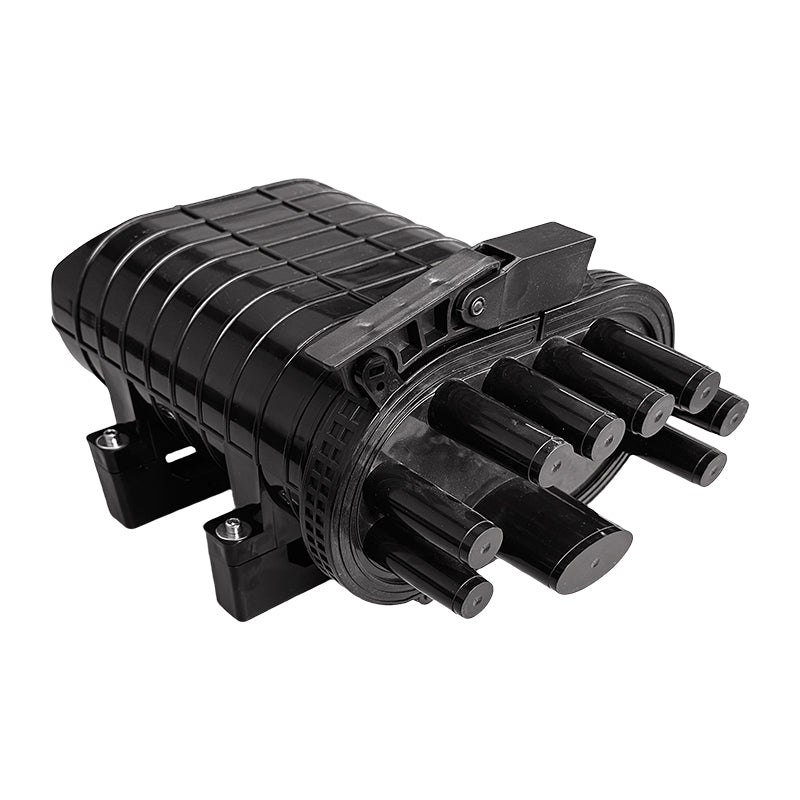

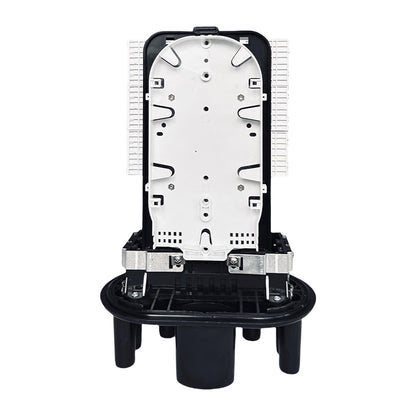

GJS-D0039C Fiber Optic Splice Closure 1IN-8OUT

GJS-D0039C Fiber Optic Splice Closure 1IN-8OUT

The GJS-D0039C Fiber Optic Splice Closure is a versatile, IP68-rated solution for protecting fiber splices in telecom, FTTH, and network infrastructure projects. With a splicing capacity of 144 fibers, it supports straight-through and branching connections. Ideal for overhead, underground duct, or direct burial applications, this closure ensures reliable, waterproof, and dustproof performance in extreme weather conditions.

Specification

Dimension (HxDia.): 390 × 280 × 200 mm (15.35 × 11.02 × 7.87 in)

Inlet / Outlet: 1 Oval Port (Ø8-18.5mm) / 8 Round Ports (Ø6-14mm)

Sealing Type:

Splicing capacity: 144 Fibers (Single-core, Max.)

Packing List

Carton Size: 630x630x580 mm

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D0039C Fiber Optic Splice Closure is a compact, high-capacity solution for protecting fiber splices in telecom, FTTH, and network infrastructure projects. With a splicing capacity of 144 fibers and an IP68 rating, it ensures reliable performance in harsh outdoor environments. Supporting aerial, wall, pole, or underground installations, this closure offers flexible configuration and easy maintenance for straight-through and branching fiber connections.

  • Feature & Benifits

    Port capacities of the GJS-D0039C Fiber Optic Splice Closure 1IN-8OUT:
    • Splicing capacity: 144 Fibers (Single-core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D0039C Fiber Optic Splice Closure 1IN-8OUT:

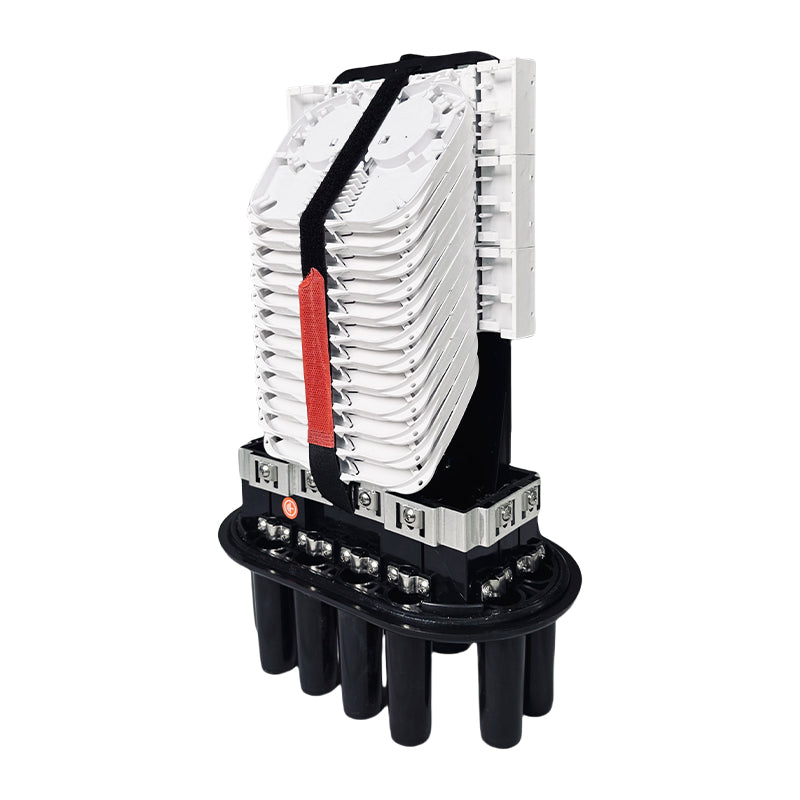

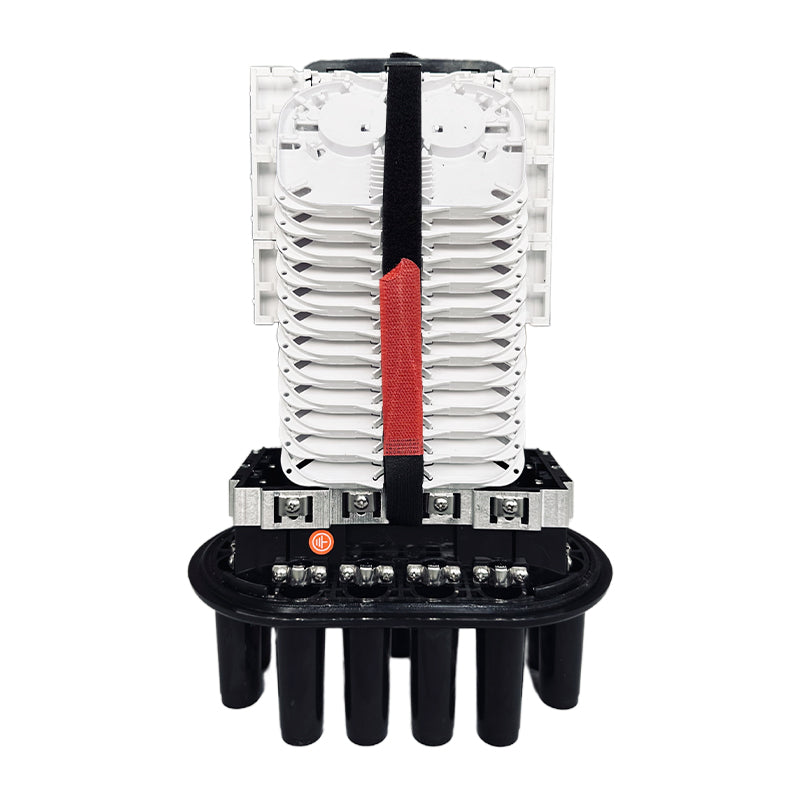

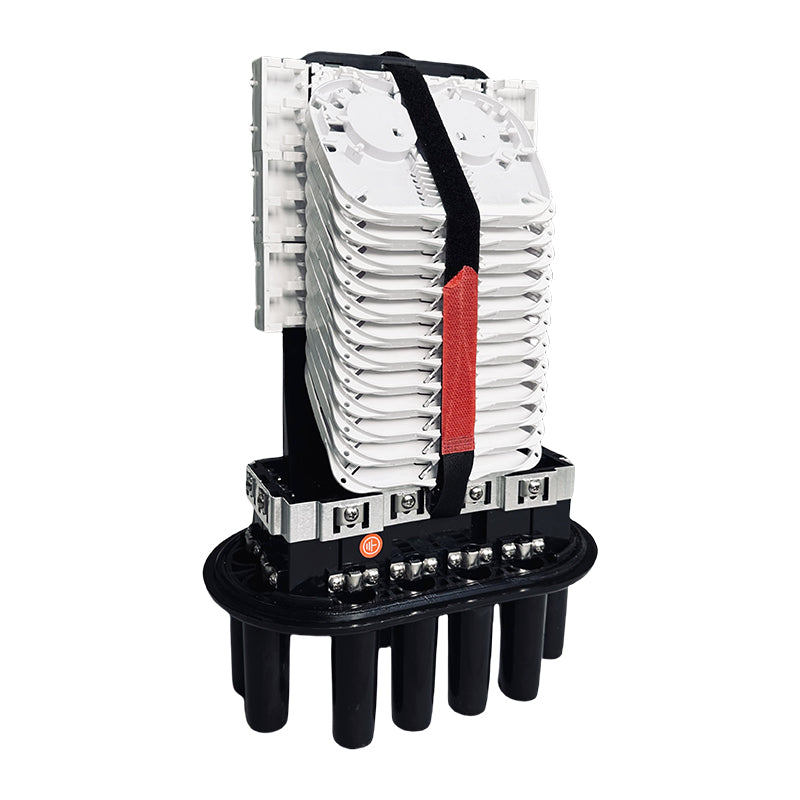

    • High Splicing Capacity: Supports 144 single-core fibers with 6 rotatable ABS splice trays for efficient fiber management.
    • IP68 Protection: Heat-shrink seals and silicon rubber gaskets provide airtight, waterproof, and dustproof performance in extreme conditions.
    • Durable Construction: Made from PC+ABS or PP+GF, resistant to corrosion, UV rays, and mechanical impacts for long-term reliability.
    • Flexible Port Configuration: 1 oval input port (Ø8–18.5 mm) and 8 round output ports (Ø6–14 mm) accommodate various cable sizes.
    • Easy Maintenance: Booklet-style rotatable trays allow quick access for splicing or repairs, with a reusable design to reduce costs.
    • Space-Efficient Design: Compact dimensions (390 × 280 × 200 mm) fit tight spaces while offering ample fiber winding space.
    • Customizable Options: Add a grounding device for electrical safety, an inflating valve for pressure testing, or mounting kits for aerial, wall, or pole setups.

Specifications

Part No. GJS-D0039C
Color Black (customizable )
Dimension 390 × 280 × 200 mm (15.35 × 11.02 × 7.87 in)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 1 Oval Port (Ø8-18.5mm)
Cable Exit port 8 Round Ports (Ø6-14mm)
Fusion Splice 144 Fibers (Single-core, Max.)
Number of Splice Tray 6 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Aerial / Wall / Pole Mounted
