Part No.: GJS-D1445

144FO 4 Round ports Fiber Dome Closure

144FO 4 Round ports Fiber Dome Closure

Specification

Dimension (WxHxD): 455 × Ø188 mm

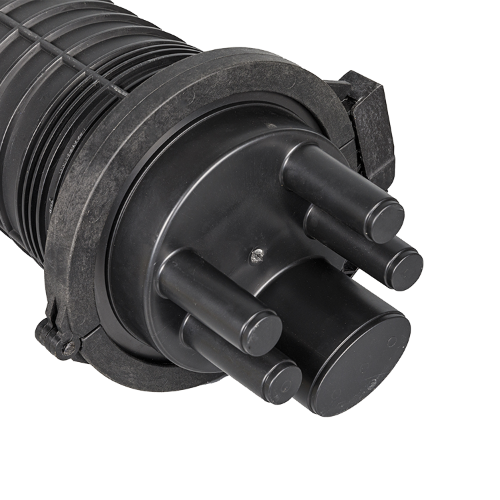

Inlet / Outlet: 1 Oval Port / 4 Round Port

Branch (Blind) ports: N/A

Splicing capacity: 144 Fusion splices

Patching capacity: N/A

Suitable splitter: N/A

Collapsible row

Carton Size: 60.0*48.5*48.5CM

PCS/CTN: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

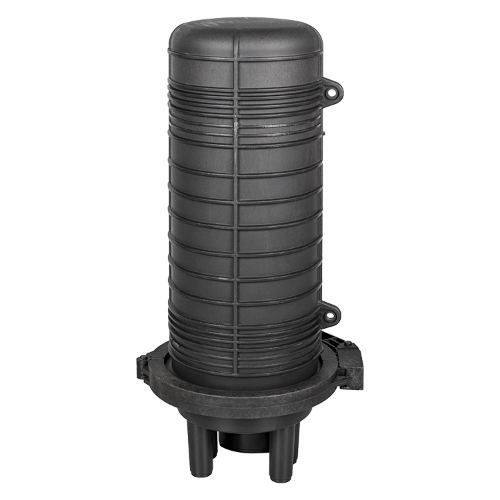

    The GJS-D1445 is a Dome type fiber optic splice closure designed for the FTTx network. It can house up to 144 fusion splices and distribute up to 4 branch cables. The closure is suitable for deployment in Aerial, Pole-mount, Wall-mount or direct burial applications.

  • Feature & Benifits

    Port capacities of the 144FO 4 Round ports Fiber Dome Closure:
    • Splicing capacity: 144 Fusion splices
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 144FO 4 Round ports Fiber Dome Closure:
    • Housing is made of high-quality engineering plastic (MPP) which has good mechanical performance and hydrolysis resistance, chemical resistance.

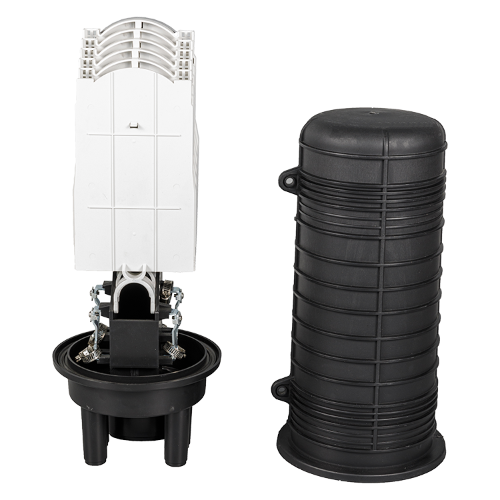

    • Max. 6 splice trays and Max. 144FO with storage tray for uncut cables.
    • Heat-shrink sealing, reliable waterproof and dustproof, rated to IP68.
    • Cable sheath and strength member fixed by reliable metal kits and grounding provided optionally.
    • Rubber grommet is re-useable and keep the sealing same.

General Specifications

Part No. GJS-D1445
Color Black (Customizable)
Dimension 455 × Ø188 mm
Material of Housing MPP
Protection class IP IP68
Main Cable Ports 1 Oval Port
Branch Cable Port N/A
Drop Cable Ports 4 Round Port
Fusion Splice 144 Fusion splices
Number of Splice Tray 6 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Aerial / Pole-mounted / Wall-mounted

  • Accessories

    • Aerial kit / Pole-mounting kit / Wall-mounting kit * 1 SET
    • Fiber Splice Sleeves (1.2/60mm) * 6 BAGS (24PCS/BAG)
    • Nylon Tie ( 3X100 mm) * 6 PCS
    • Buffer Tube (50mm) * 4 PCS
    • Branch off Clip * 1 PC
    • Heat Shrink Sleeve Round (Ø40 - 45mm) * 4 PCS
    • Heat Shrink Sleeve Oval (Ø100 - 105) * 1 PC
    • Aluminum foil * 1 PC

  • Packing List

    Configuration - Standard accessories, no adapters nor pigtails included.

    • Carton Size - 60.0*48.5*48.5CM
    • Carton G.W. - 20 KG
    • Carton Capacity - 6 PCS/CTN
