Part No.: GJS-D1445C

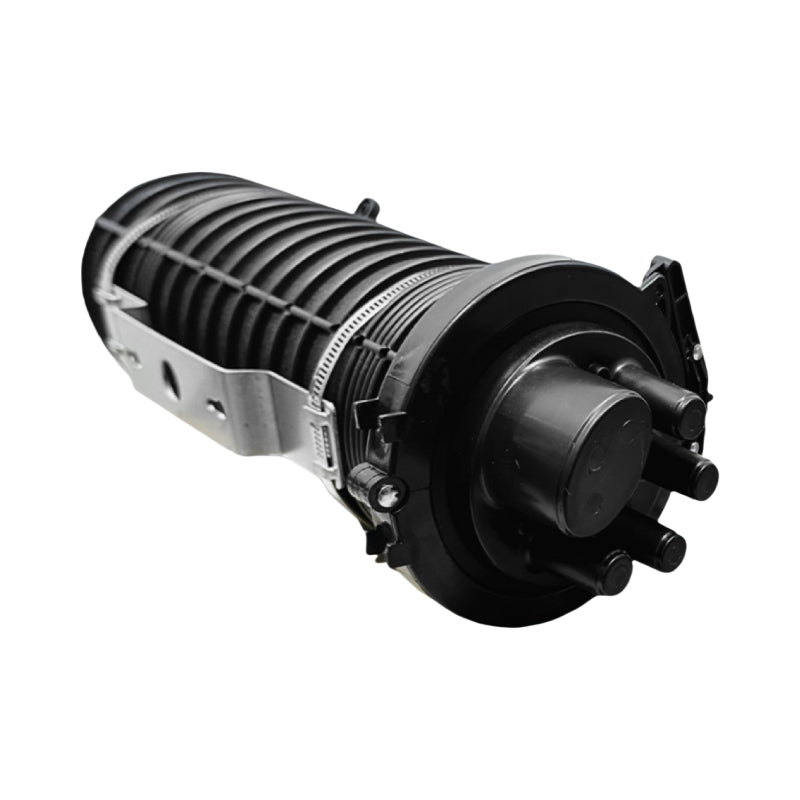

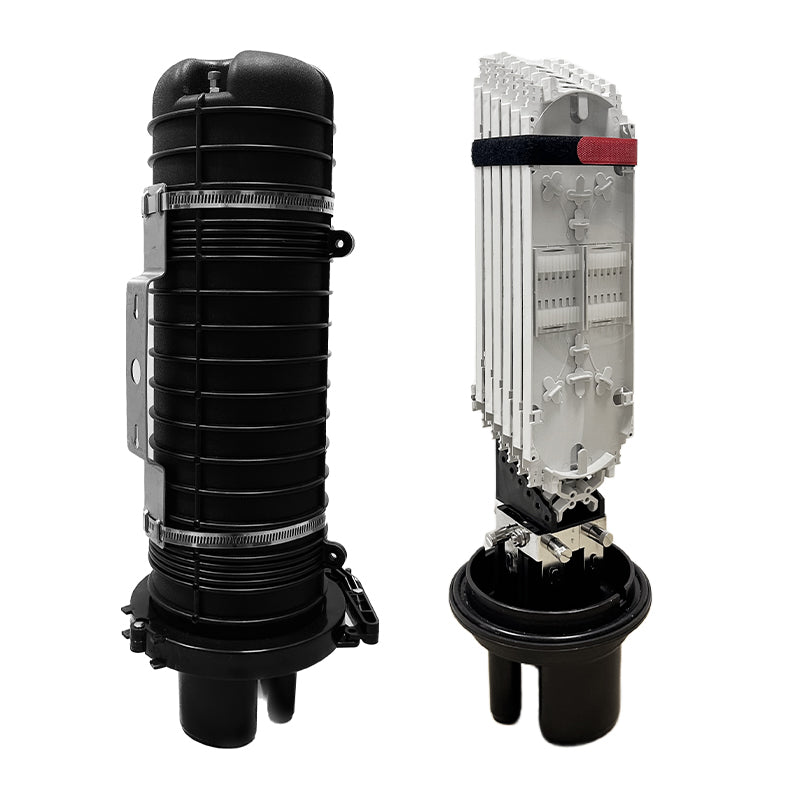

GJS-D1445C 144-Fiber Dome Fiber Optic Splice Closure

GJS-D1445C 144-Fiber Dome Fiber Optic Splice Closure

The GJS-D1445C Dome Fiber Optic Splice Closure is a robust solution for protecting fiber splices in telecom, FTTH, and large-scale fiber networks. With a splicing capacity of 144 fibers, it safeguards connections against water, dust, and mechanical damage. Ideal for aerial, underground duct, or direct-buried installations, this closure ensures reliable performance for high-capacity fiber deployments.

Specification

Dimension (HxDia.): 550 × Ø155 mm (21.65 × Ø6.10 inches)

Inlet / Outlet: 1 Oval Port (cable dia. Ø8–44.5 mm) / 4 Round Ports (cable dia. Ø6–22 mm)

Sealing Type:

Splicing capacity: 144 Fibers (Single-core, Max.)

Packing List

Carton Size: 640×490×580 mm (25.20×19.29×22.83 IN)

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D1445C 144-Fiber Dome Fiber Optic Splice Closure is a high-performance solution designed for telecom infrastructure, FTTH projects, and large-scale fiber deployments. Crafted from durable PP+GF material with an IP68 rating, it shields fiber splices from water, dust, and mechanical damage in aerial, underground, or direct-buried applications. Its compact design (550×Ø155 mm), high splicing capacity (144 fibers), and versatile mounting options (wall, pole, or direct burial) ensure reliable protection and efficient fiber management. Optimized routing (≥40 mm bend radius) minimizes signal loss and simplifies maintenance, making it ideal for network expansion.

  • Feature & Benifits

    Port capacities of the GJS-D1445C 144-Fiber Dome Fiber Optic Splice Closure:
    • Splicing capacity: 144 Fibers (Single-core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D1445C 144-Fiber Dome Fiber Optic Splice Closure:
    • Durable Construction: PP+GF housing resists harsh weather, chemicals, and UV radiation, ensuring over 20 years of outdoor reliability.

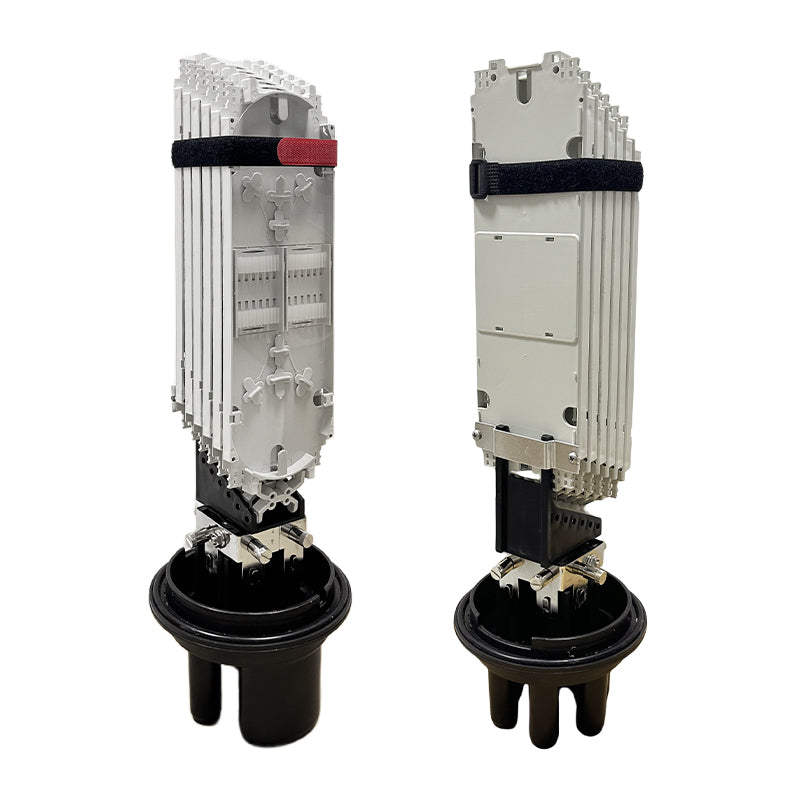

    • High Fiber Capacity: 6 removable ABS splice trays support up to 144 single-core fibers, perfect for large-scale network growth.
    • Superior Sealing Performance: Dome-to-base O-ring clamp and heat-shrink cable seals achieve IP68 rating, preventing water ingress even under immersion.
    • Flexible Cable Management: 1 oval trunk port (Ø8‒44.5 mm) and 4 round branch ports (Ø6‒22 mm) accommodate diverse cable sizes.
    • Versatile Installation: Supports aerial, wall, pole, or direct-buried mounting with optional pre-installed
      inflating valve for easy setup.
    • Optimal Fiber Protection: Engineered routing maintains ≥40 mm bend radius, reducing signal loss and simplifying maintenance.
    • Space-Efficient Design: Compact 550×Ø155 mm size maximizes fiber storage while fitting tight installation spaces.

Specifications

Part No. GJS-D1445C
Color Black (customizable )
Dimension 550 × Ø155 mm (21.65 × Ø6.10 inches)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 1 Oval Port (cable dia. Ø8–44.5 mm)
Cable Exit port 4 Round Ports (cable dia. Ø6–22 mm)
Fusion Splice 144 Fibers (Single-core, Max.)
Number of Splice Tray 6 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall / Pole Mounted
