Part No.: GJS-D1445M

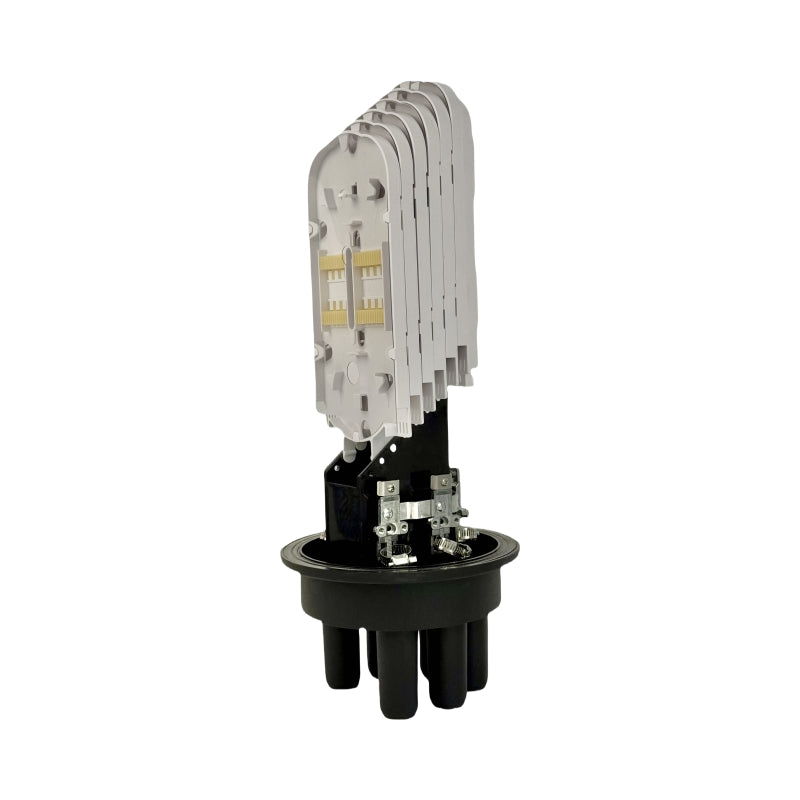

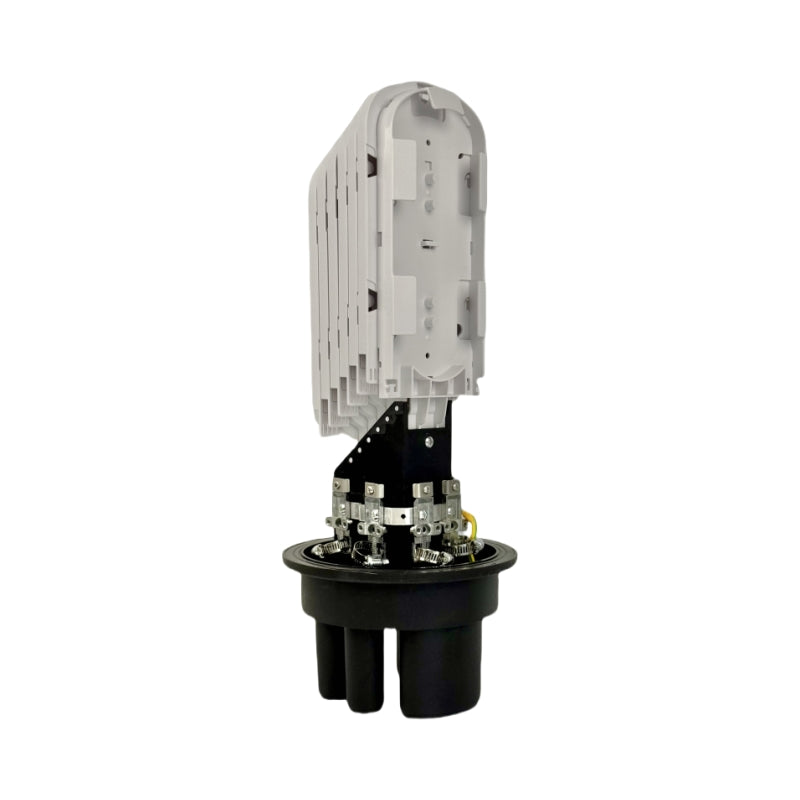

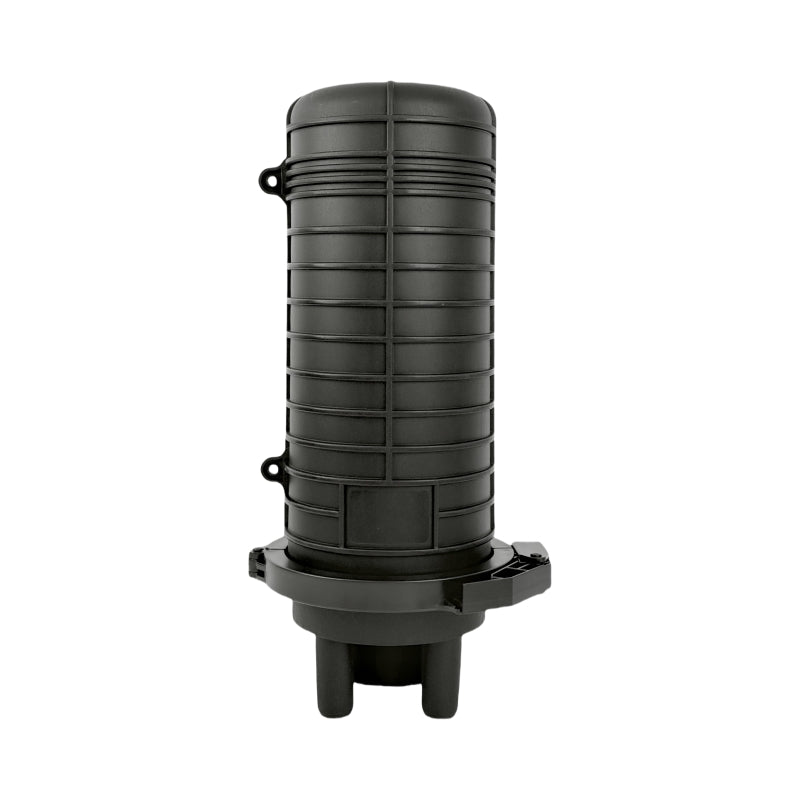

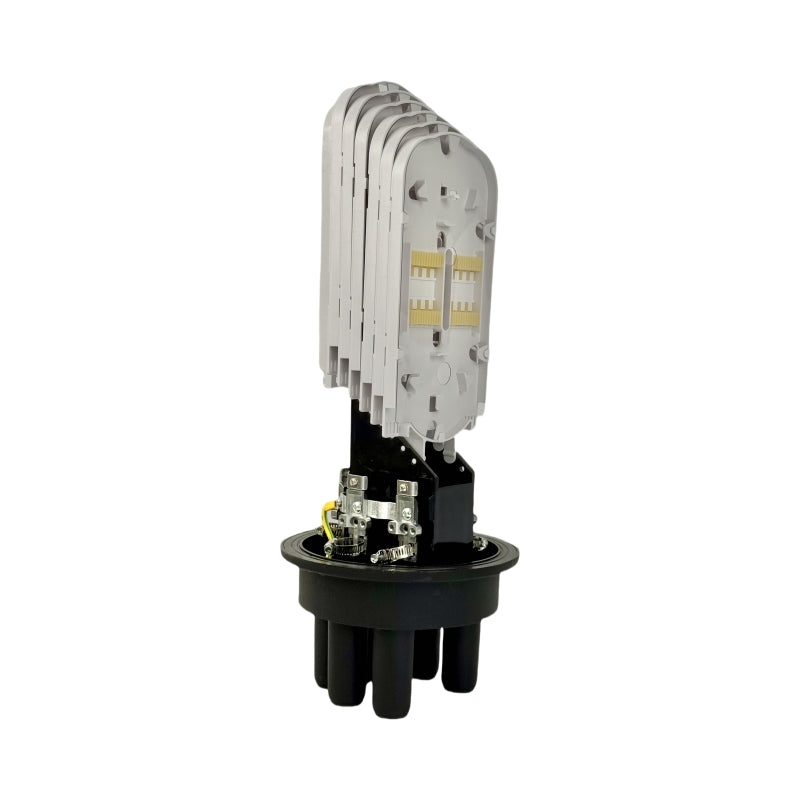

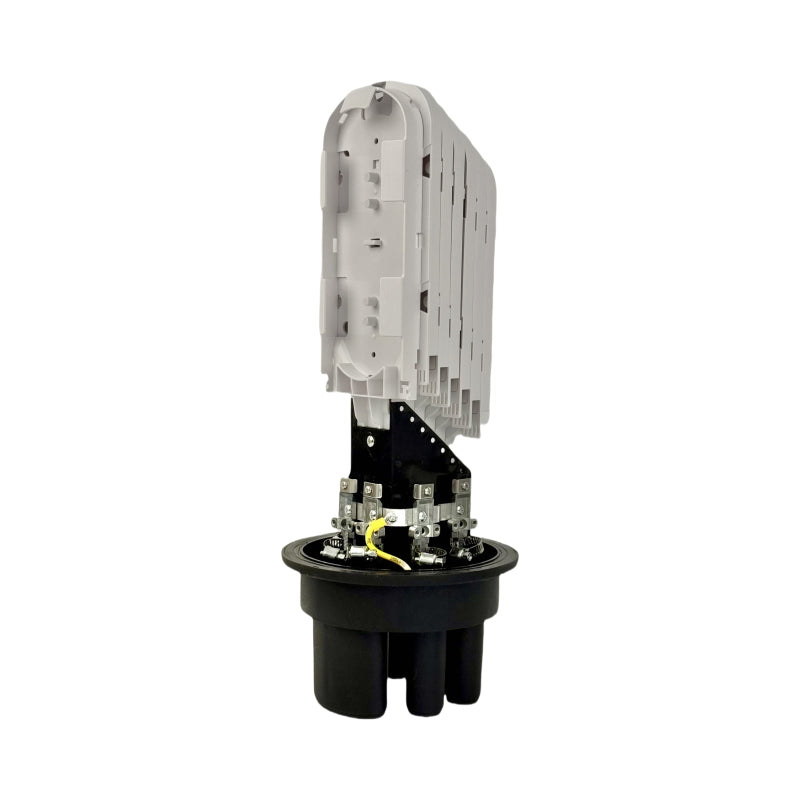

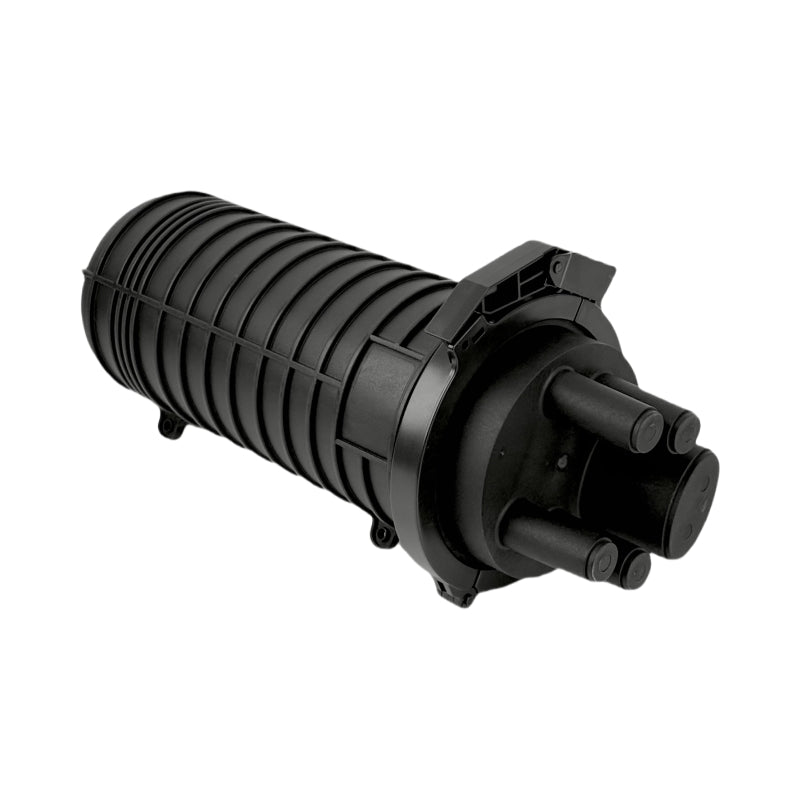

GJS-D1445M Dome Fiber Optic Splice Closure for 144 Fibers

GJS-D1445M Dome Fiber Optic Splice Closure for 144 Fibers

The GJS-D1445M Dome Fiber Optic Splice Closure is designed to protect fiber splices in demanding outdoor environments. With a splicing capacity of 144 fibers, it’s perfect for telecom, FTTH, and large-scale fiber networks. This robust enclosure shields against water, dust, and mechanical damage, making it ideal for aerial, wall/pole, underground, or direct-buried installations, ensuring reliable performance for critical infrastructure projects.

Specification

Dimension (HxDia.): 460 × Ø 180mm (18.1× Ø7.1 in)

Inlet / Outlet: 1 Oval Port (67× 37 mm) / 4 Round Ports ( Ø24 mm)

Sealing Type:

Splicing capacity: 144 Fibers (Single-core)

Packing List

Carton Size: 650×470×490 mm (25.6×18.5×19.3 IN)

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D1445M Dome Fiber Optic Splice Closure is a high-capacity, durable solution for protecting fiber splices in telecom, FTTH, and large-scale fiber networks. Engineered for versatility, it supports aerial, wall, pole, duct, or direct-buried installations. With a splicing capacity of 144 fibers and an IP68 rating, this closure ensures reliable performance in harsh environments, safeguarding connections against water, dust, and mechanical damage.

  • Feature & Benifits

    Port capacities of the GJS-D1445M Dome Fiber Optic Splice Closure for 144 Fibers:
    • Splicing capacity: 144 Fibers (Single-core)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D1445M Dome Fiber Optic Splice Closure for 144 Fibers:
    • High Splicing Capacity: Supports up to 144 single-core fibers with 6 removable ABS splice trays, ideal for expanding network demands.
    • Robust Construction: Made from PP+GF (polypropylene with glass fiber), resistant to harsh weather, chemicals, and UV radiation for long-term durability.
    • IP68 Sealing: Dome-to-base O-ring clamp provides waterproof and dustproof protection, ensuring reliability in extreme conditions.
    • Versatile Mounting: Compatible with aerial, wall, pole, duct, or direct-buried setups, with optional aerial hanging hook for flexible deployment.
    • Optimized Fiber Management: Engineered routing maintains safe bend radius, reducing signal loss and simplifying maintenance.
    • Flexible Port Configuration: Features 1 oval port (67×37 mm) and 4 round ports (Ø24 mm) for various cable sizes, supporting trunk and branch cables.
    • Optional Grounding: Pre-installed grounding device available for enhanced electrical safety.

Specifications

Part No. GJS-D1445M
Color Black (customizable )
Dimension 460 × Ø 180mm (18.1× Ø7.1 in)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 1 Oval Port (67× 37 mm)
Cable Exit port 4 Round Ports ( Ø24 mm)
Fusion Splice 144 Fibers (Single-core)
Number of Splice Tray 6 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall / Pole Mounted
