Part No.: GJS-D1447C

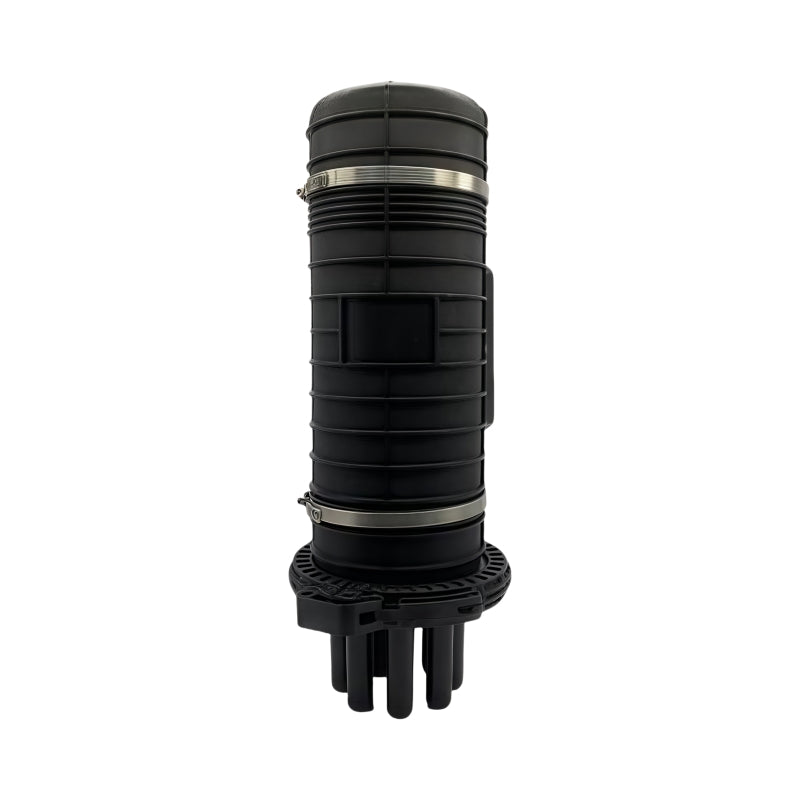

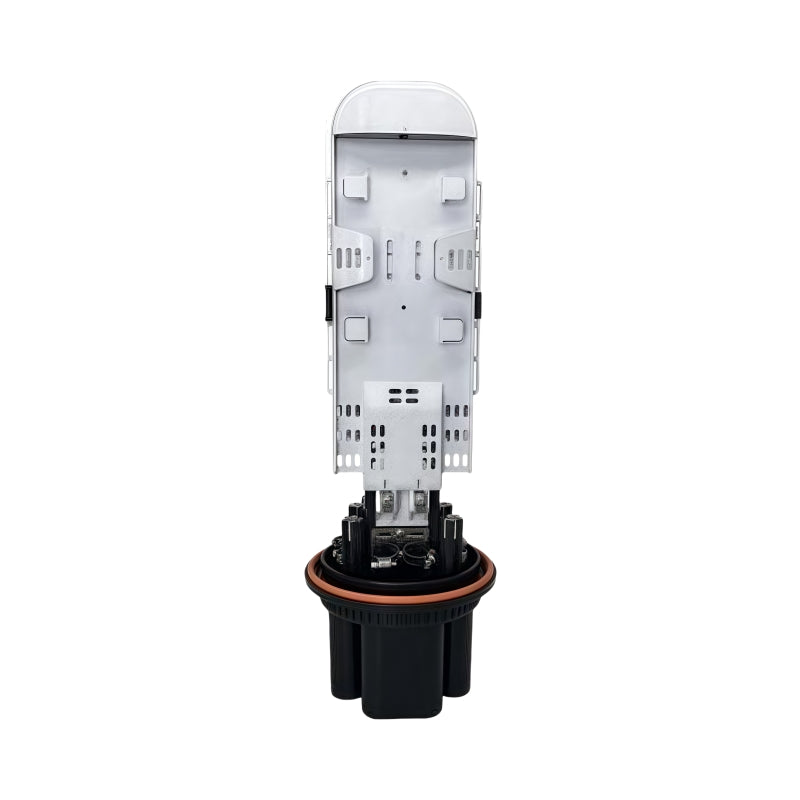

GJS-D1447C 144-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure

GJS-D1447C 144-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure

The GJS-D1447C Heat-Shrink Seal Dome Closure is designed to protect fiber splices in telecom and FTTX networks. With a splicing capacity of 144 fibers, it ensures reliable performance against water, dust, and mechanical damage. Ideal for pole-mounted, wall-mounted, or direct-buried setups, this closure supports aerial, pipeline, and underground cabling, making it a versatile solution for robust fiber optic deployments.

Specification

Dimension (HxDia.): 500 × Ø220 mm (enclosure body: Ø145 mm)

Inlet / Outlet: 1 Oval Port (cable dia. Ø8–39 mm) / 6 Round Ports (cable dia. Ø6–20 mm)

Sealing Type:

Splicing capacity: 144 Fibers (Single-core, Max.)

Packing List

Carton Size: 720×520×450 mm (28.35×20.47×17.72 inches)

Pieces per Carton: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D1447C Dome Fiber Optic Splice Closure is a high-capacity, durable solution for protecting fiber splices in telecom and FTTx networks. Designed for versatility, it supports aerial, wall, pole, or direct-buried installations. With a splicing capacity of 144 fibers and an IP68 rating, this closure ensures robust protection against water, dust, and mechanical damage, making it ideal for large-scale, demanding fiber optic deployments.

  • Feature & Benifits

    Port capacities of the GJS-D1447C 144-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure:
    • Splicing capacity: 144 Fibers (Single-core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D1447C 144-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure:

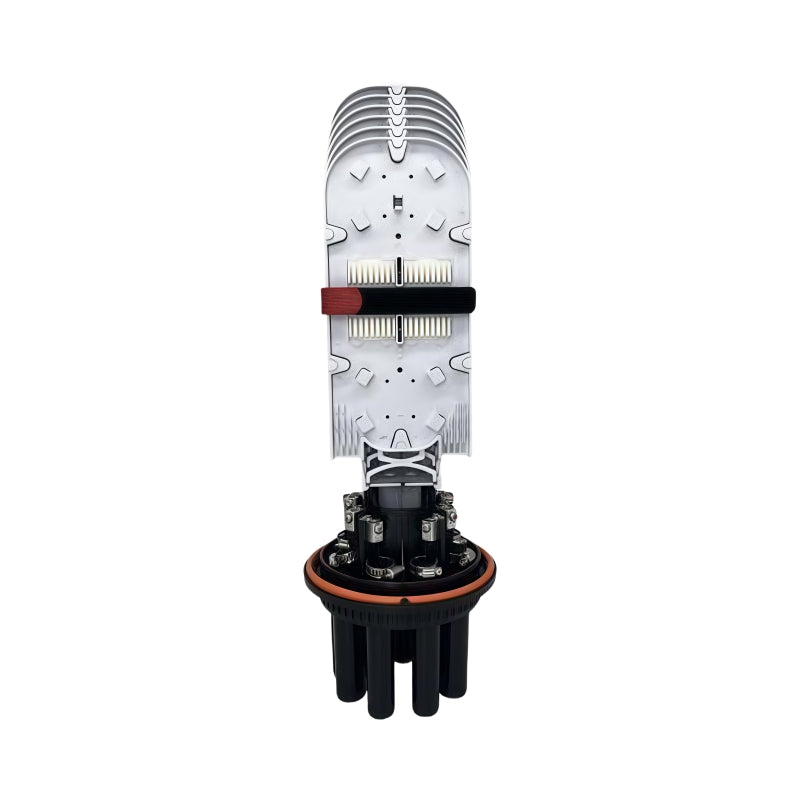

    • High Splicing Capacity: Supports 144 single-core fibers with 6 removable ABS splice trays, perfect for large-scale network expansions.
    • IP68 Protection: Heat-shrink seals and dome-to-base O-ring clamp provide waterproof and dustproof performance in extreme conditions (-40°C to 60°C).
    • Durable Construction: PP+GF (polypropylene with glass fiber) material resists corrosion, UV radiation, and temperature fluctuations for long-term reliability.
    • Flexible Port Configuration: 1 oval trunk port (Ø8–39 mm) and 6 round branch ports (Ø6–20 mm) accommodate various cable sizes.
    • Easy Maintenance: Reusable design with turnable trays allows quick reopening and hassle-free fiber access for splicing or repairs.
    • Versatile Mounting: Supports aerial, wall, pole, or direct-buried setups, with optional aerial hanging hook for flexible deployment.
    • Reliable Sealing: Heat-shrink cable seals and O-ring clamp ensure airtight barriers, preventing water ingress and signal degradation.

Specifications

Part No. GJS-D1447C
Color Black (customizable )
Dimension 500 × Ø220 mm (enclosure body: Ø145 mm)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 1 Oval Port (cable dia. Ø8–39 mm)
Cable Exit port 6 Round Ports (cable dia. Ø6–20 mm)
Fusion Splice 144 Fibers (Single-core, Max.)
Number of Splice Tray 6 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall / Pole Mounted
