Part No.: GJS-D2887Q

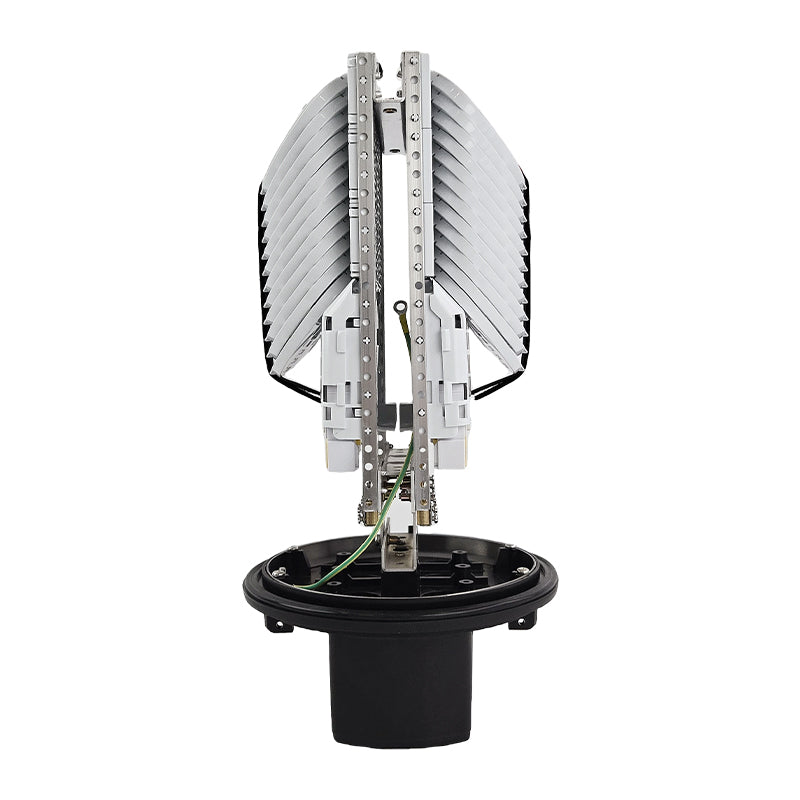

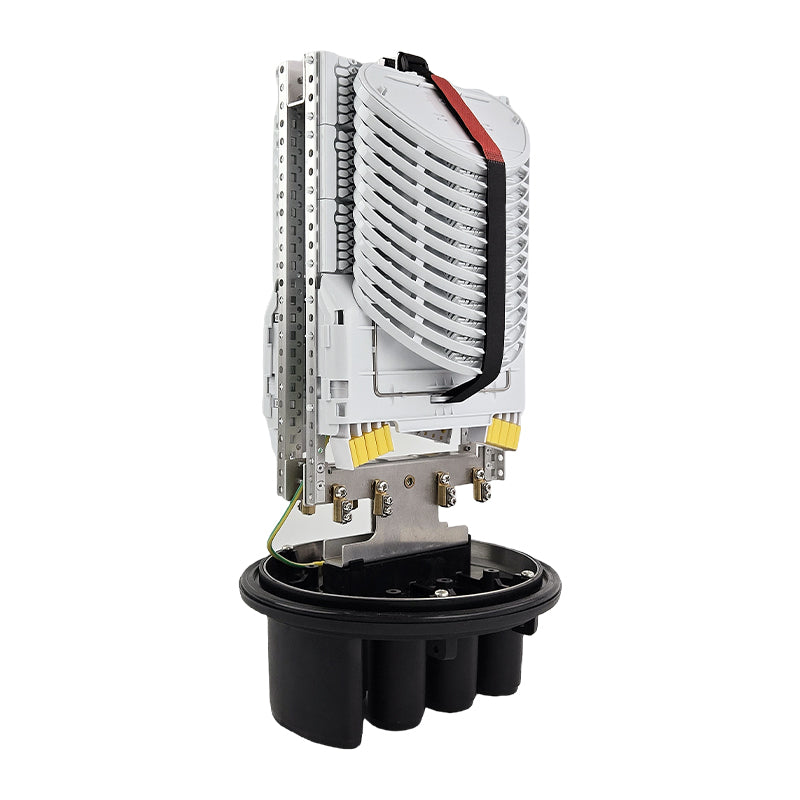

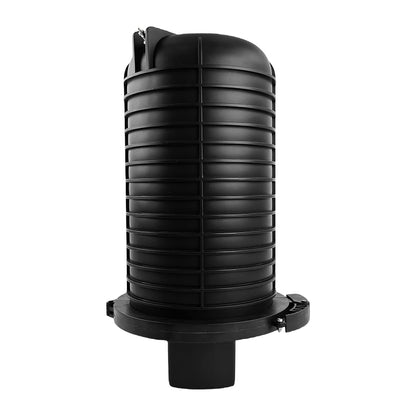

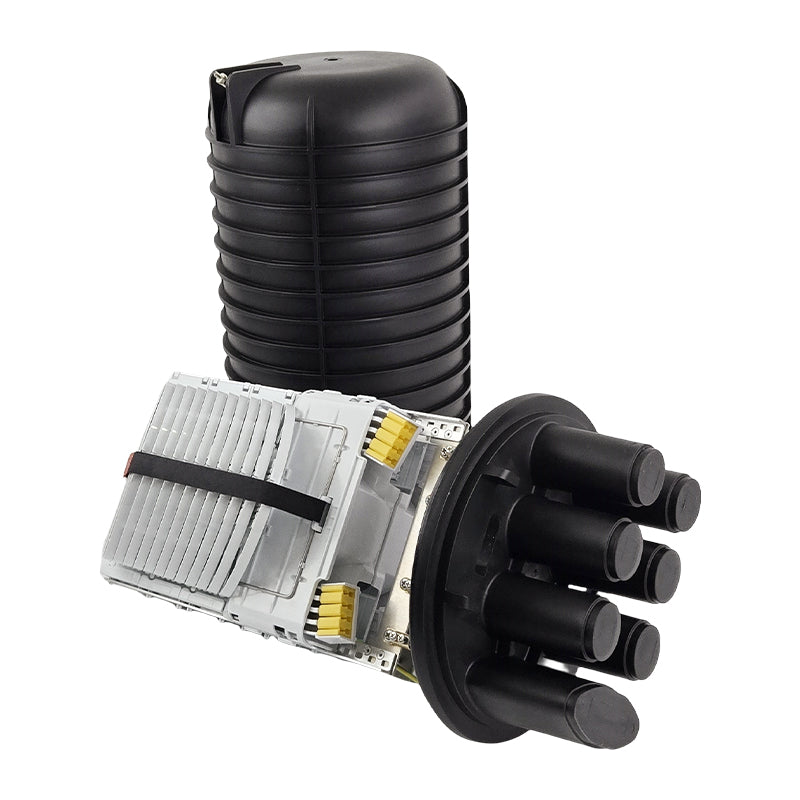

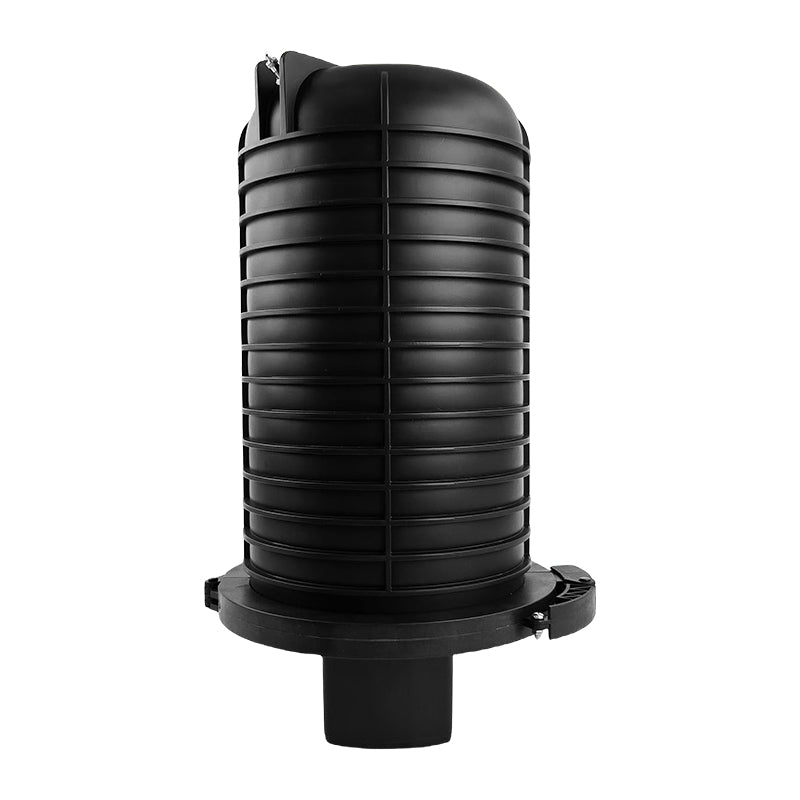

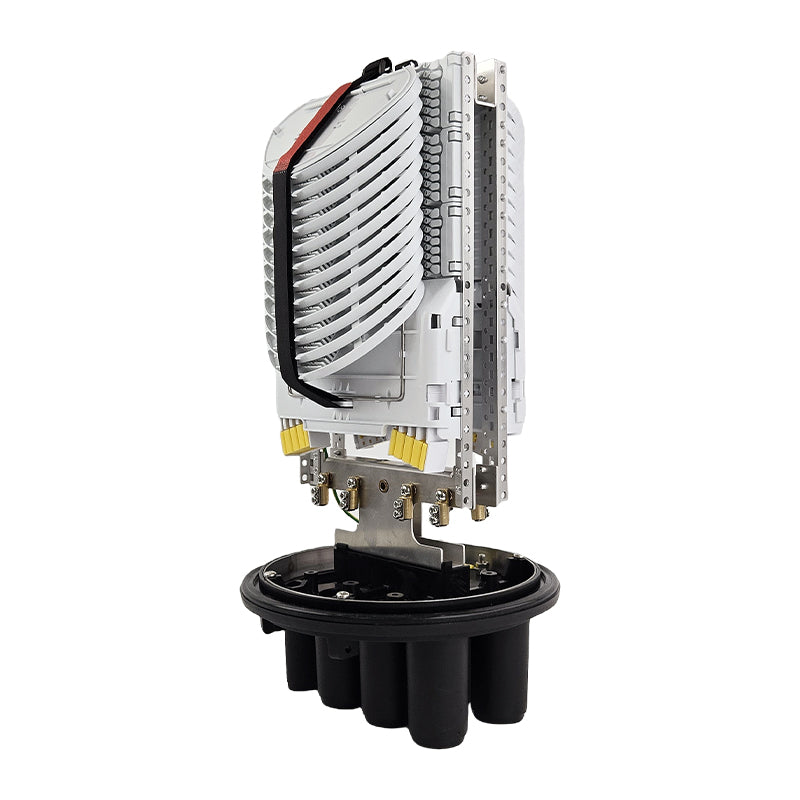

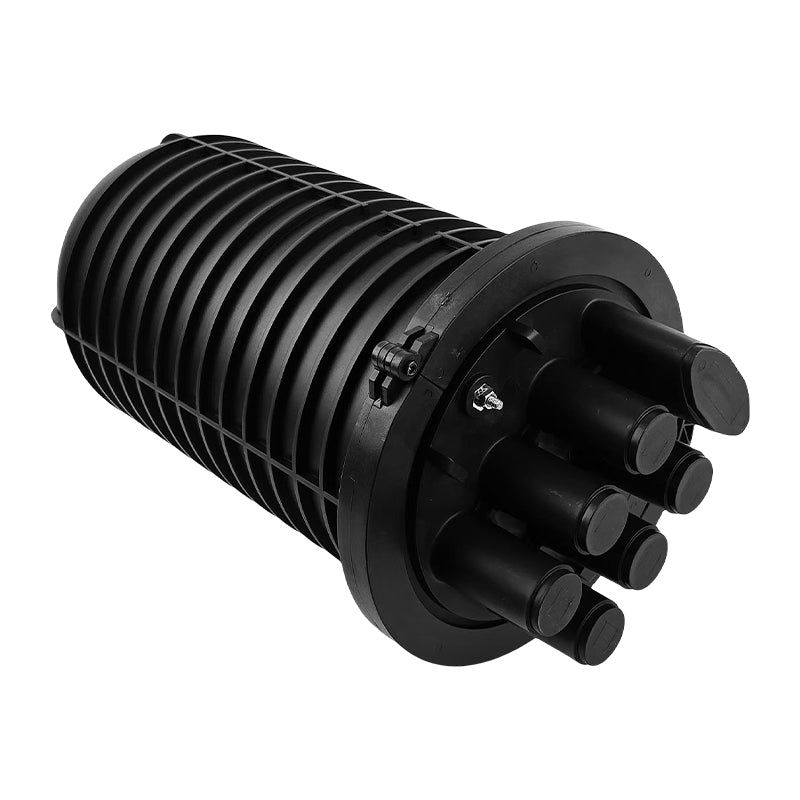

GJS-D2887Q 288-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure

GJS-D2887Q 288-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure

The GJS-D2887Q Fiber Optic Splice Closure is designed for reliable cable connections in telecom, CATV, and broadband networks. Ideal for various outdoor applications, including aerial cabling, pole/wall mounting, underground ducts, and direct burial. With IP68 protection, it ensures splices are safeguarded against water, dust, and harsh weather conditions. Supporting up to 288 fiber splices, this closure is perfect for high-density outdoor fiber networks.

Specification

Dimension (HxDia.): 506 × Ø310 mm (including clamp outer diameter) (20.31 × Ø12.20 inches)

Inlet / Outlet: 1 Oval Port for 2 cables (Ø10–30 mm) / 6 Round Ports for 1 cable each (Ø6–33 mm)

Sealing Type:

Splicing capacity: 288 Fibers (Single-core, Max.)

Packing List

Carton Size: 680×570×350 mm (26.77×22.44×13.78 IN)

Pieces per Carton: 6 Sets / CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D2887Q is a high-capacity, robust fiber optic splice closure engineered for telecom, CATV, and broadband networks. Designed to ensure secure and reliable connections, it excels in demanding outdoor environments, offering IP68 protection against water, dust, and extreme weather. With a splicing capacity of up to 288 single-core fibers, this closure supports large-scale network expansions. Its versatile design accommodates aerial, pole/wall-mounted, underground, and direct-buried installations, making it an ideal choice for diverse deployment scenarios. The reusable, maintenance-friendly structure and optional monitoring features enhance long-term reliability and ease of use.

  • Feature & Benifits

    Port capacities of the GJS-D2887Q 288-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure:
    • Splicing capacity: 288 Fibers (Single-core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D2887Q 288-Fiber Heat-Shrink Seal Dome Fiber Optic Splice Closure:
    • High Splicing Capacity: Supports up to 288 single-core fibers with 24 splice trays, perfect for high-density network applications.
    • IP68 Protection: Heat-shrink sealing and robust PP+GF housing ensure watertight and dustproof performance in harsh environments.
    • Flexible Port Configuration: Features 1 oval port (Ø10–30 mm) for two main cables and 6 round ports (Ø6–33 mm) for branch cables, accommodating various cable sizes.
    • Durable Construction: Made with corrosion-resistant PP+GF enclosure, ABS trays, and stainless steel components for UV and mechanical stress resistance.
    • Versatile Installation Options: Supports aerial, wall/pole mounting, and direct burial, with optional pole-mounting and grounding kits for flexible deployment.
    • Easy Maintenance: Reusable design with turnable trays allows quick access for installation, repairs, or upgrades.
    • Optional Monitoring: Pre-installed inflating valve for pressure testing enhances reliability in sealed environments.

Specifications

Part No. GJS-D2887Q
Color Black (customizable )
Dimension 506 × Ø310 mm (including clamp outer diameter) (20.31 × Ø12.20 inches)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 1 Oval Port for 2 cables (Ø10–30 mm)
Cable Exit port 6 Round Ports for 1 cable each (Ø6–33 mm)
Fusion Splice 288 Fibers (Single-core, Max.)
Number of Splice Tray 6 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall / Pole Mounted
