Part No.: GJS-D5049-288F

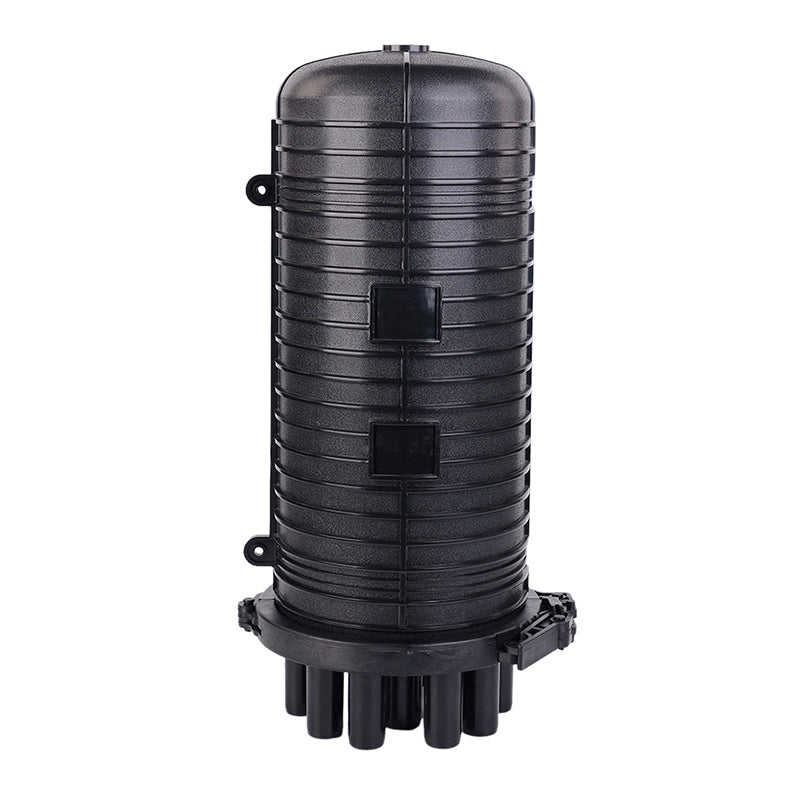

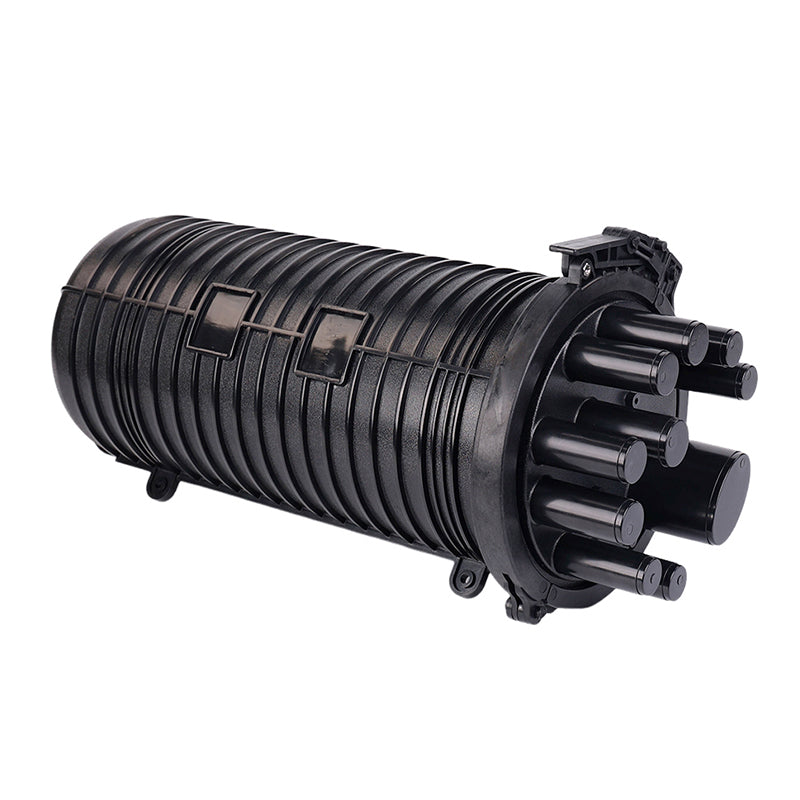

GJS-D5049-288F High-Capacity Dome Closure for Fiber Optic Networks

GJS-D5049-288F High-Capacity Dome Closure for Fiber Optic Networks

The GJS-D5049-288F dome closure is designed for large-scale fiber optic networks, offering robust IP68-rated protection against water and environmental factors. Ideal for aerial, wall-mounted, pole-mounted, or direct-buried installations, it ensures reliable fiber splice protection. With a high splicing capacity of 288 fibers, it provides ample space for efficient fiber storage and splicing in demanding telecommunications environments.

Specification

Dimension (HxDia.): 510 × Ø225 mm (20.1 × Ø8.9 in)

Inlet / Outlet: A: 63×40 mm (oval) / B: 4 × Ø23 mm C: 4 × Ø20 mm D: 1 × Ø26 mm

Sealing Type:

Splicing capacity: 288 Fibers

Packing List

Carton Size: 550×550×500 mm

Pieces per Carton: 4 Sets / CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D5049-288F High-Capacity Dome Closure is engineered for robust performance in large-scale fiber optic networks. With an IP68 rating, this closure ensures superior protection against water, dust, and environmental challenges, making it ideal for aerial, wall-mounted, pole-mounted, or direct-buried installations. Designed for telecommunications, it offers a high splicing capacity of up to 288 fibers (scalable to 432 with modular cassettes) and efficient fiber management to meet demanding connectivity needs.

  • Feature & Benifits

    Port capacities of the GJS-D5049-288F High-Capacity Dome Closure for Fiber Optic Networks:
    • Splicing capacity: 288 Fibers
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D5049-288F High-Capacity Dome Closure for Fiber Optic Networks:
    • Extreme Durability: Constructed from MPP engineering plastic with glass fiber reinforcement, it resists impact, compression, and chemical corrosion for long-lasting performance.

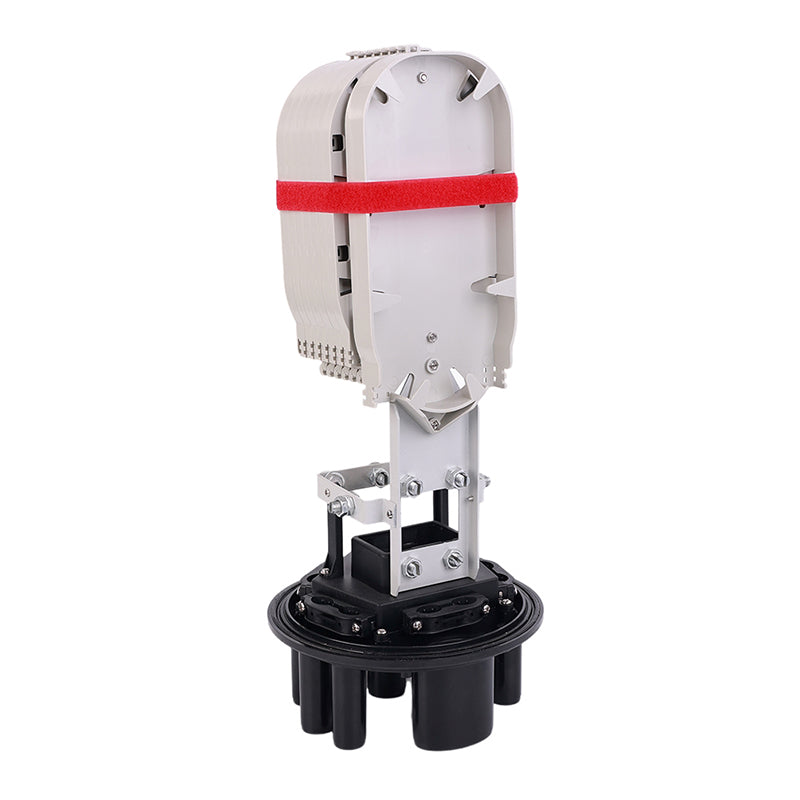

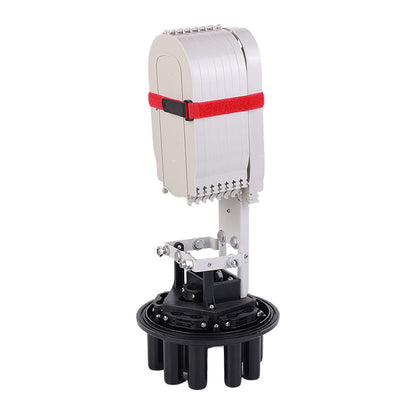

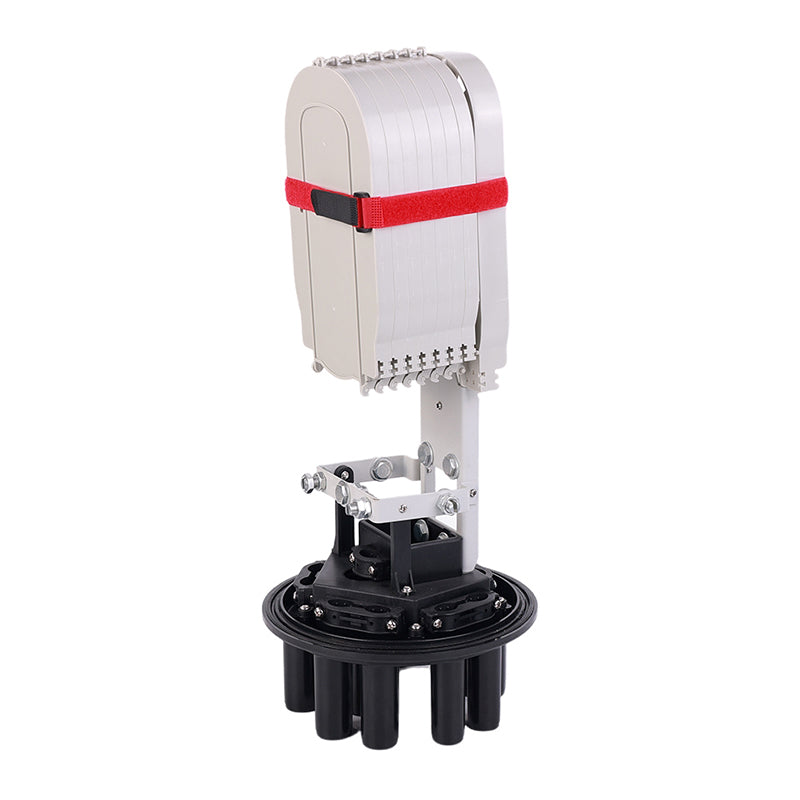

    • Optimized Fiber Management: Supports up to 7 large ABS splice trays, each holding 24–48 fibers, designed to prevent damage and ensure reliable connections.

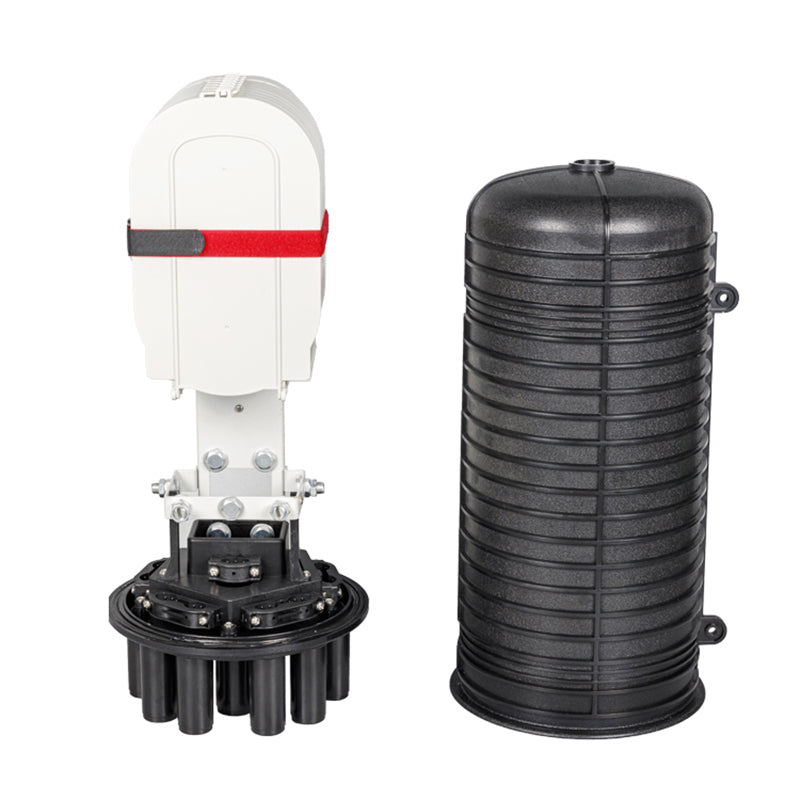

    • Secure Sealing: Dome-to-base clamp with O-ring delivers IP68 waterproof integrity, safeguarding splices in harsh environments.
    • Drop-Resistant Design: Splice trays withstand 1.5m drops without damage, ensuring reliability during installation and maintenance.
    • Scalable Capacity: Accommodates 288 fibers, expandable to 336–432 fibers with modular cassettes for future-proof scalability.
    • Flexible Installation: Supports multiple mounting options—wall, pole, aerial, or direct-buried—for versatile deployment in diverse settings.

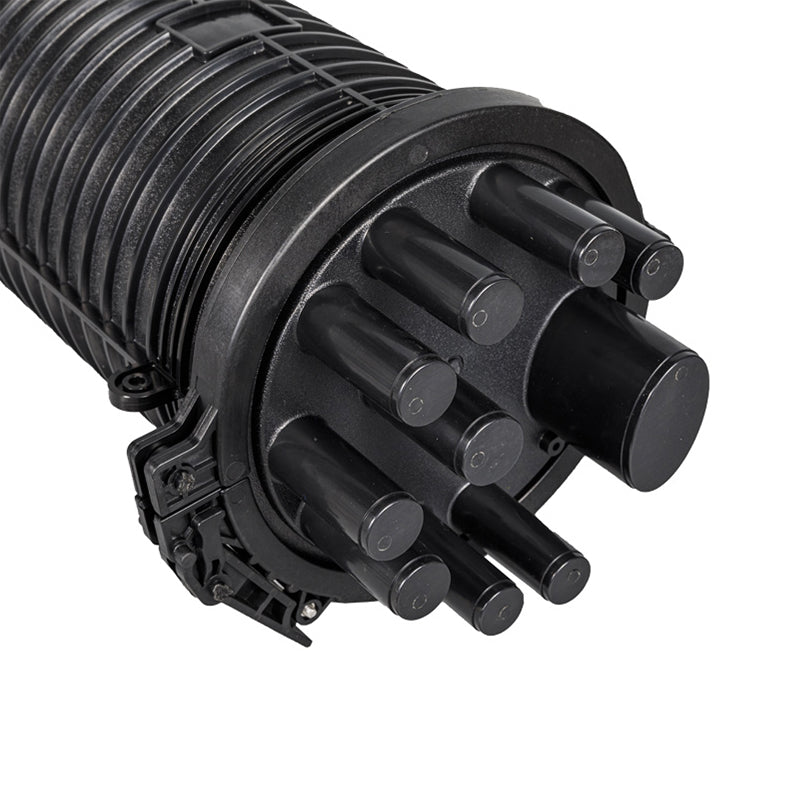

    • Advanced Cable Management: Features multiple cable entry/exit ports (1 oval, 4 Ø23 mm, 4 Ø20 mm, 1 Ø26 mm) with heat-shrink sealing for secure connections.

Specifications

Part No. GJS-D5049-288F
Color Black (customizable )
Dimension 510 × Ø225 mm (20.1 × Ø8.9 in)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports A: 63×40 mm (oval)
Cable Exit port B: 4 × Ø23 mm C: 4 × Ø20 mm D: 1 × Ø26 mm
Fusion Splice 288 Fibers
Number of Splice Tray 6 Trays
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall / Pole Mounted
