Part No.: GJS-D5049-336F

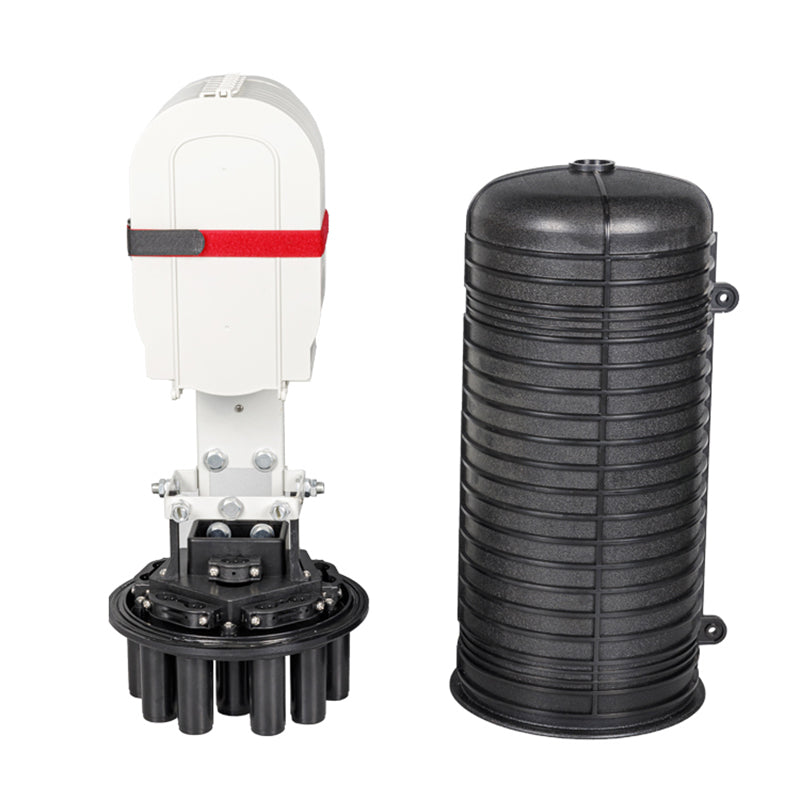

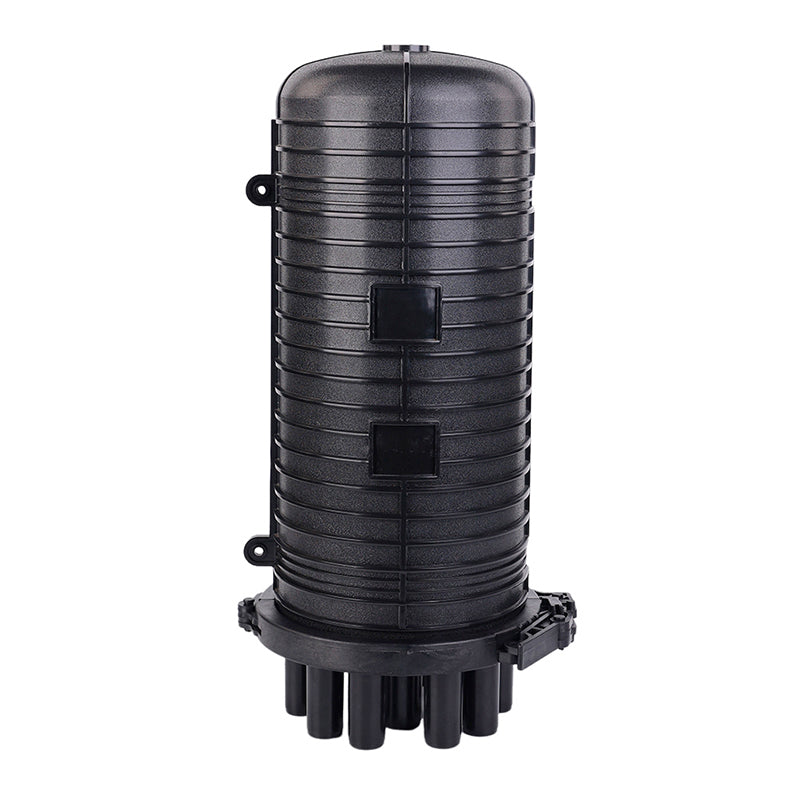

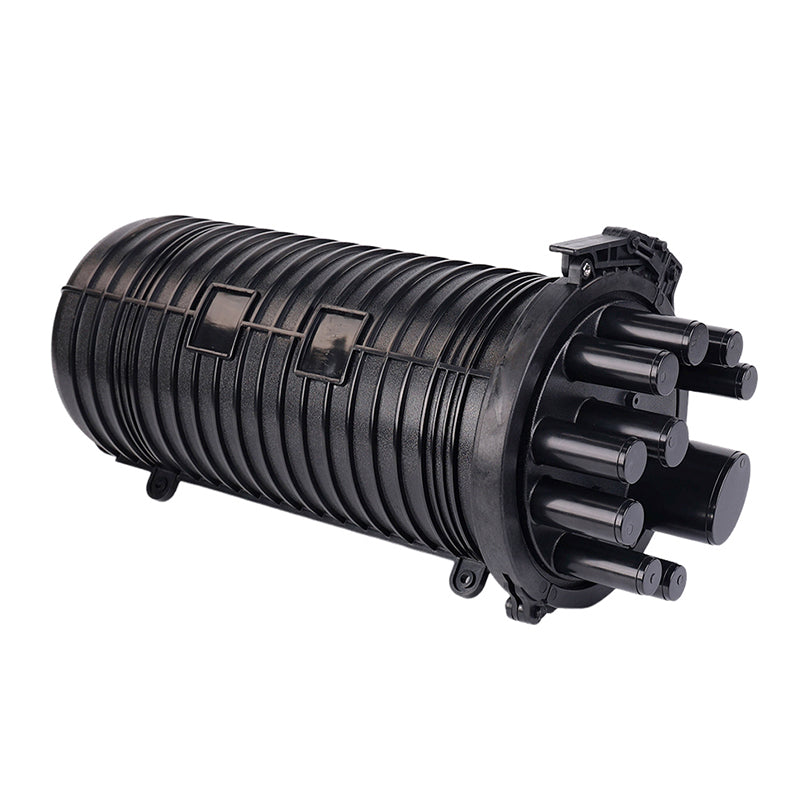

GJS-D5049-336F High-Density Fiber Splice Closure

GJS-D5049-336F High-Density Fiber Splice Closure

The GJS-D5049-336F High-Density Fiber Splice Closure is designed to secure high-count fiber splices in outdoor telecom networks. With a splicing capacity of 336 fibers, it is optimized for aerial hangs or duct layouts, providing modular fiber management for efficient and reliable connectivity in demanding environments.

Specification

Dimension (HxDia.): 510 × Ø225 mm (20.1 × Ø8.9 in)

Inlet / Outlet: A: 63×40 mm (oval) / B: 4 × Ø23 mm C: 4 × Ø20 mm D: 1 × Ø26 mm

Sealing Type:

Splicing capacity: 336 Fibers

Packing List

Carton Size: 550×550×500 mm

Pieces per Carton: 4 Sets / CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D5049-336F High-Density Fiber Splice Closure is engineered for securing high-count fiber splices in outdoor telecom networks. With a splicing capacity of 336 fibers, it is optimized for aerial hangs, duct layouts, or direct-buried installations, offering modular fiber management and robust IP68-rated protection. Its compact, durable design ensures reliable performance in harsh environments, making it ideal for demanding telecommunications applications.

  • Feature & Benifits

    Port capacities of the GJS-D5049-336F High-Density Fiber Splice Closure:
    • Splicing capacity: 336 Fibers
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D5049-336F High-Density Fiber Splice Closure:

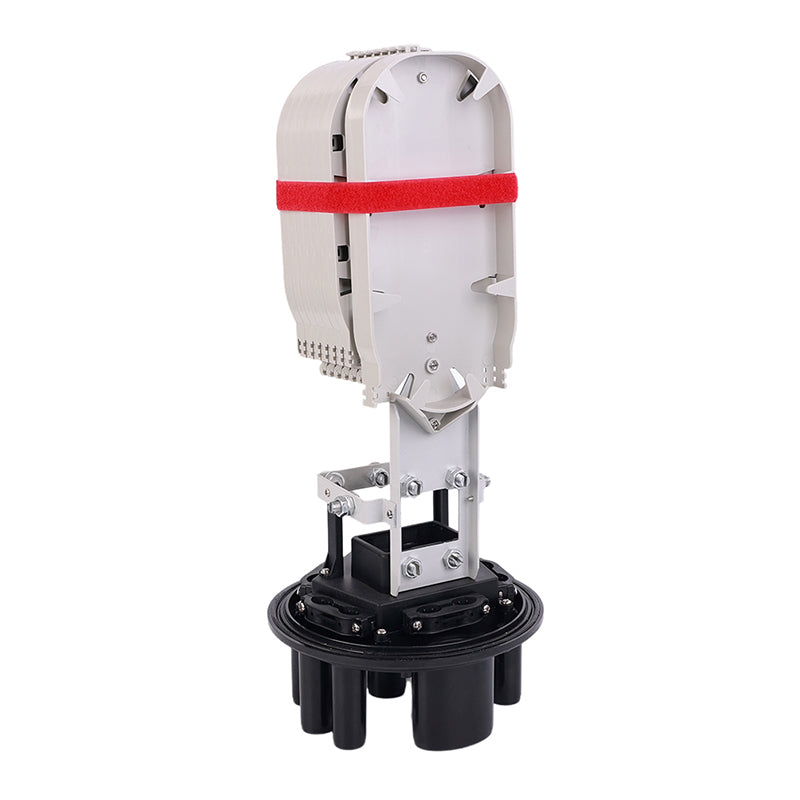

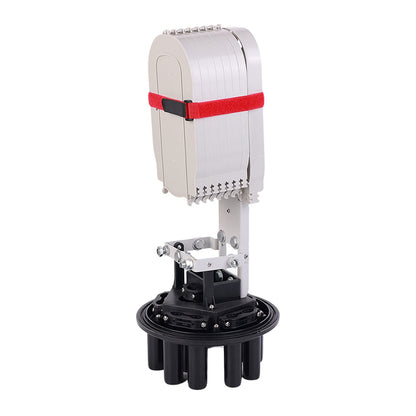

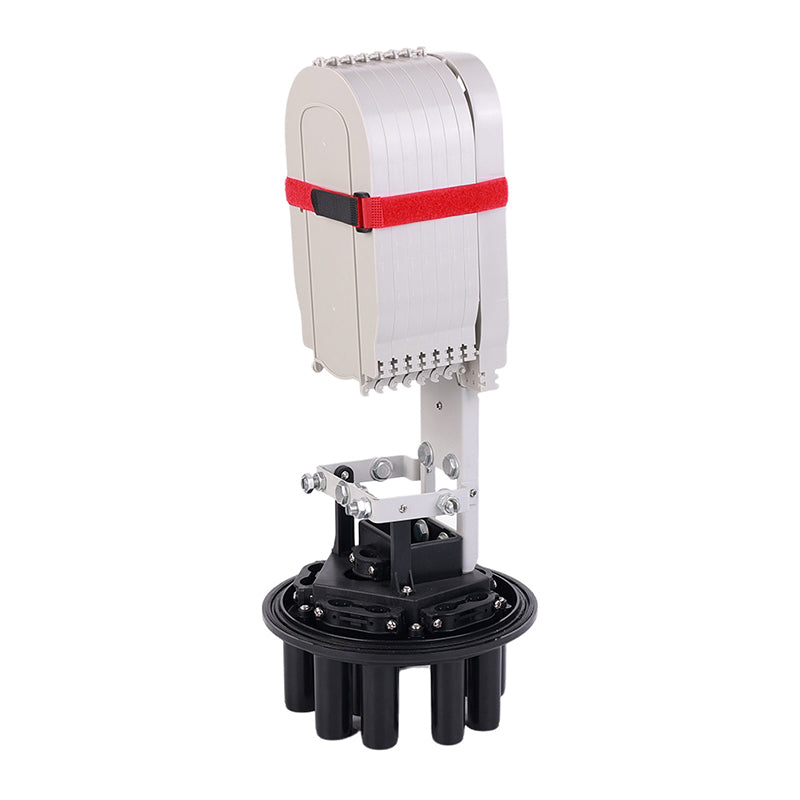

    • High-Density Capacity: Supports 336 fibers across 7 modular ABS splice trays (24/48 fibers per tray), enabling efficient fiber organization.
    • Impact-Resistant Durability: MPP housing with glass fiber reinforcement resists compression, chemicals, and 1.5m drops, ensuring long-term reliability.
    • Sealed for Life: Dome-to-base clamp, O-ring, and heat-shrink ports provide IP68 waterproofing, protecting splices in extreme conditions.
    • Space-Smart Design: Compact footprint (510 × Ø225 mm) fits confined spaces while maximizing fiber capacity.
    • Fast and Flexible Setup: Pre-installed grounding/inflating valves and a large oval entry port (63×40 mm) simplify cable routing and installation.
    • Versatile Installation: Supports aerial, wall-mounted, pole-mounted, or direct-buried deployments, with an optional aerial hanging hook for flexibility.

Specifications

Part No. GJS-D5049-336F
Color Black (customizable )
Dimension 510 × Ø225 mm (20.1 × Ø8.9 in)
Material of Housing PP+GF
Protection class IP IP68

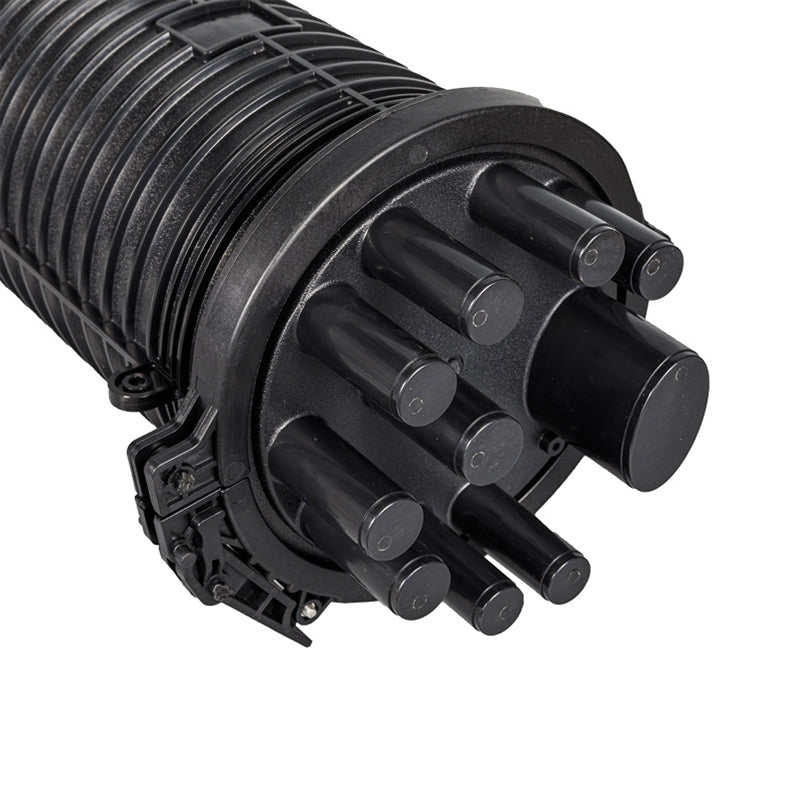

Cable Entry Ports A: 63×40 mm (oval)
Cable Exit port B: 4 × Ø23 mm C: 4 × Ø20 mm D: 1 × Ø26 mm
Fusion Splice 336 Fibers
Number of Splice Tray 7 Trays
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall Mount / Pole Mounted
