Part No.: GJS-D5049-432F

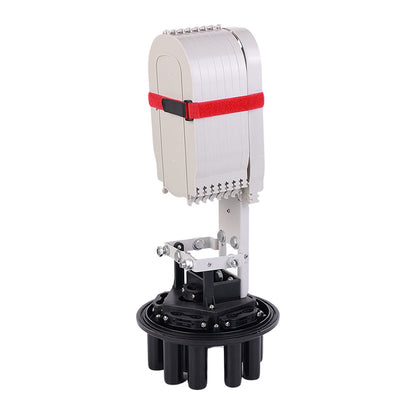

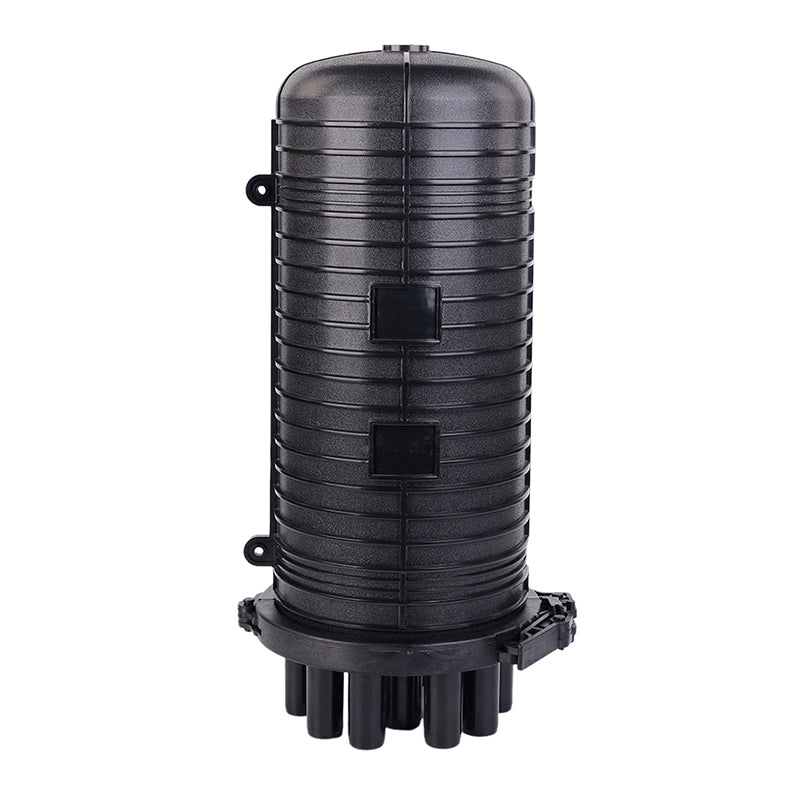

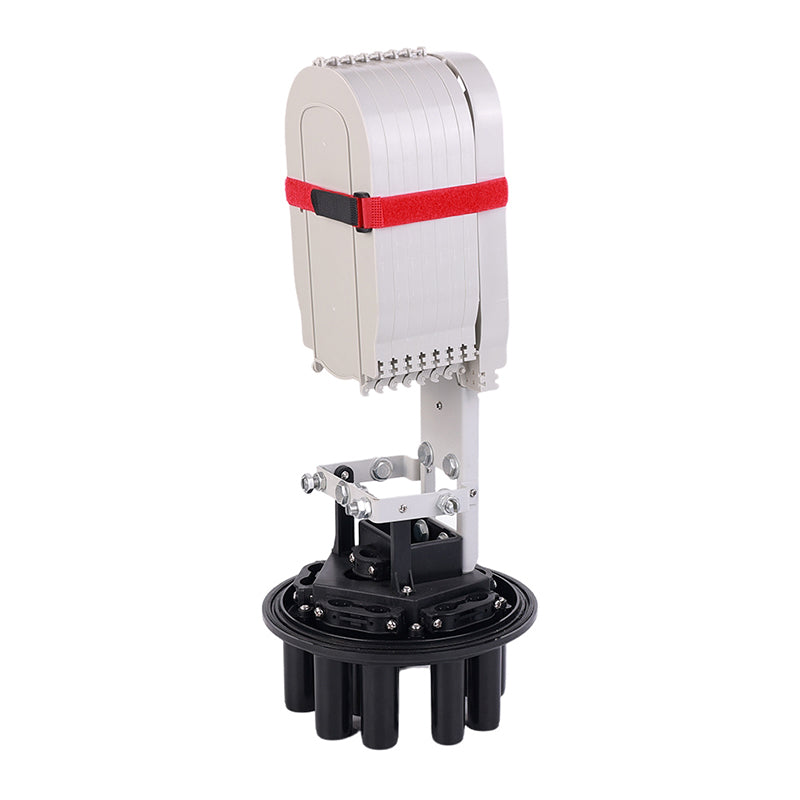

GJS-D5049-432F Ultra-High Capacity Splice Enclosure

GJS-D5049-432F Ultra-High Capacity Splice Enclosure

The GJS-D5049-432F Ultra-High Capacity Splice Enclosure is designed for backbone network splicing in FTTH projects requiring high fiber density. With a splicing capacity of 432 fibers, it is ideal for direct-burial or congested duct systems, ensuring reliable performance and efficient fiber management in demanding telecommunications environments.

Specification

Dimension (HxDia.): 510 × Ø225 mm (20.1 × Ø8.9 in)

Inlet / Outlet: A: 63×40 mm (oval) / B: 4 × Ø23 mm C: 4 × Ø20 mm D: 1 × Ø26 mm

Sealing Type:

Splicing capacity: 432 Fibers

Packing List

Carton Size: 550×550×500 mm

Pieces per Carton: 4 Sets / CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-D5049-432F Ultra-High Capacity Splice Enclosure is engineered for backbone network splicing in FTTH projects demanding maximum fiber density. With a splicing capacity of 432 fibers, this enclosure excels in direct-burial and congested duct systems. Its robust IP68-rated design ensures protection against moisture, soil pressure, and environmental challenges, making it ideal for large-scale telecommunications networks. The GJS-D5049-432F combines high capacity, rugged durability, and flexible installation to deliver reliable fiber optic connectivity in the most demanding conditions.

  • Feature & Benifits

    Port capacities of the GJS-D5049-432F Ultra-High Capacity Splice Enclosure:
    • Splicing capacity: 432 Fibers
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-D5049-432F Ultra-High Capacity Splice Enclosure:

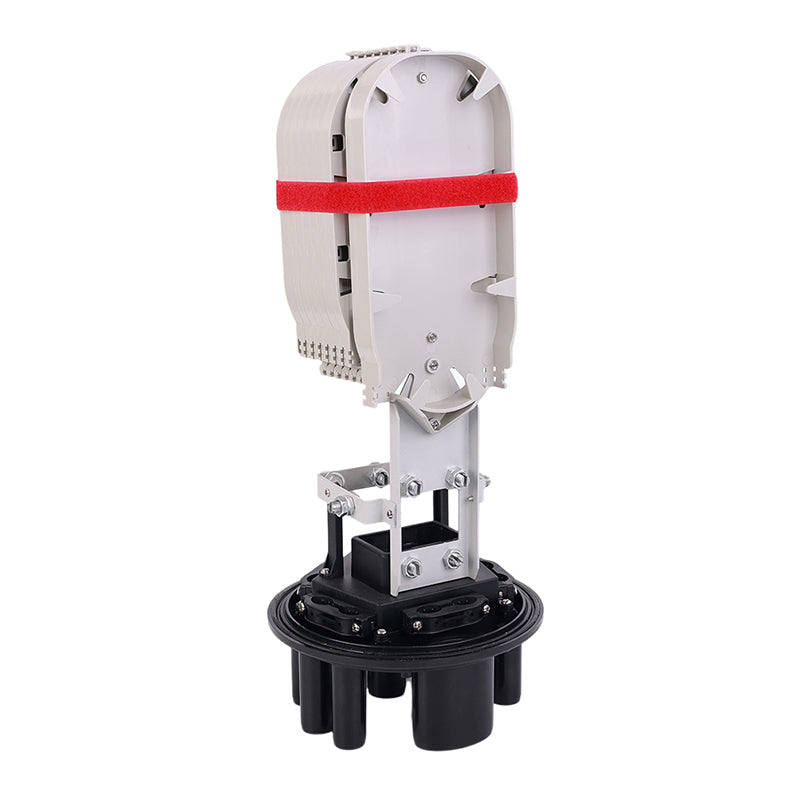

    • Maximized Fiber Density: Supports 432 fibers across 6 oversized ABS splice trays (36/72 fibers per tray), optimizing space for high-capacity networks.

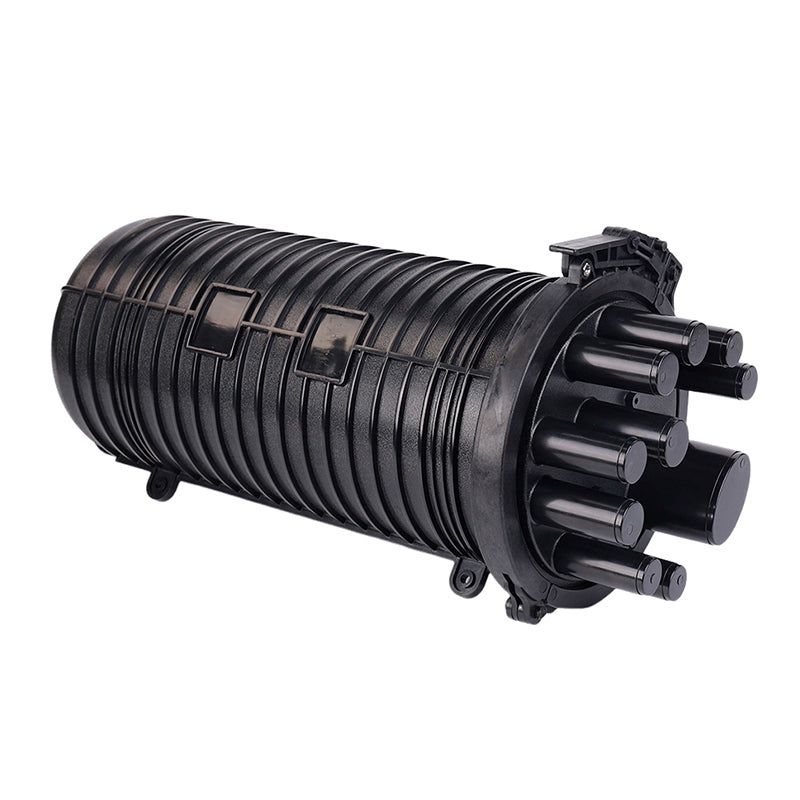

    • Burial-Ready Durability: Corrosion-resistant PP+GF housing withstands soil pressure and moisture, ensuring long-term reliability in direct-burial applications.

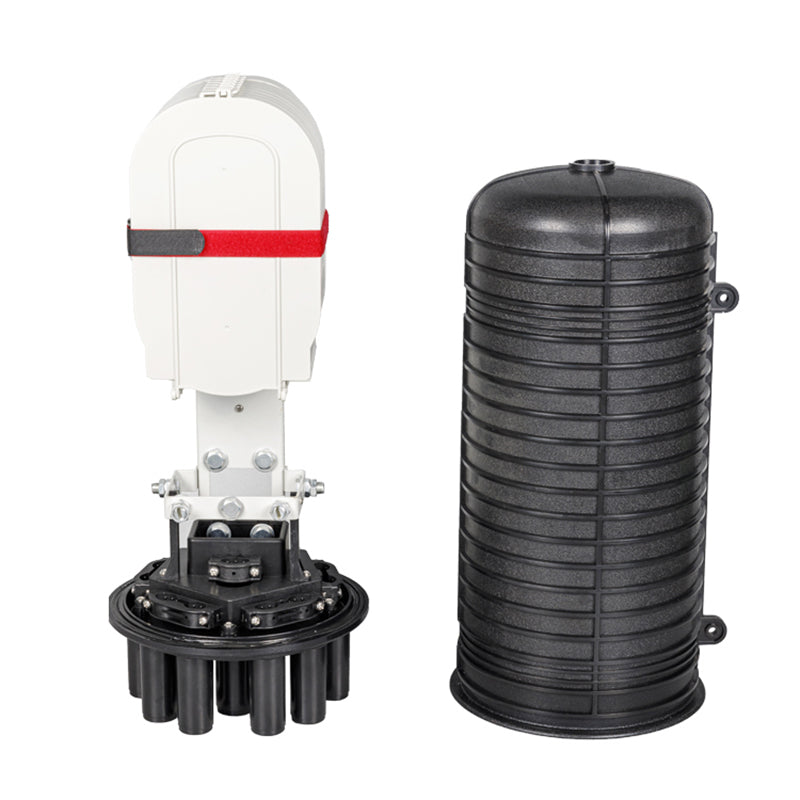

    • Fail-Safe Sealing: Triple-sealed design with dome-to-base clamp, O-ring, and heat-shrink ports guarantees lifetime IP68 waterproof integrity.

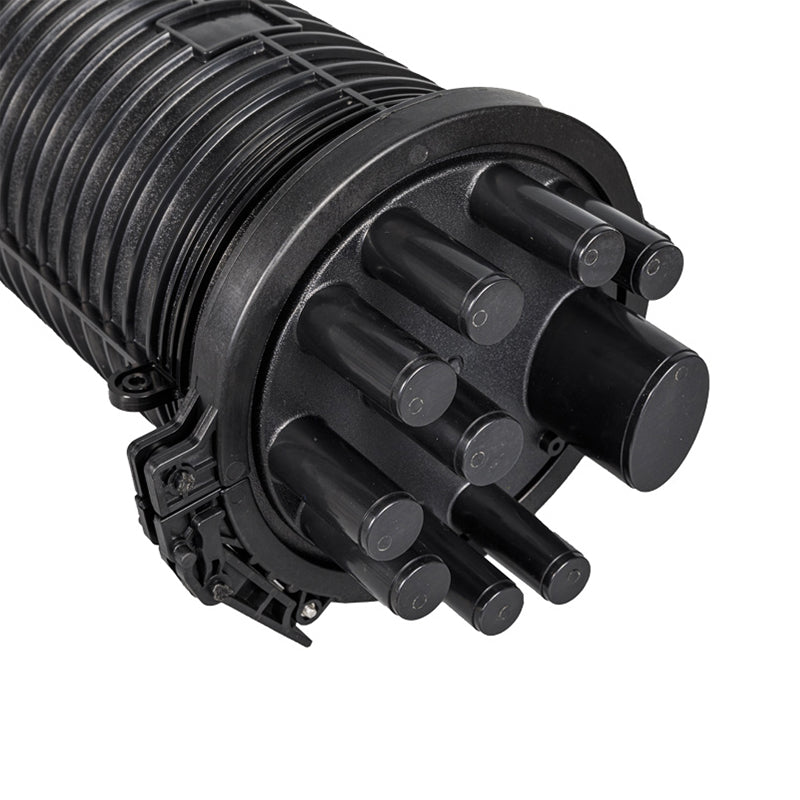

    • Optimized Cable Management: Features 1 large oval entry port (63×40 mm) and 9 exit ports (4×Ø23 mm, 4×Ø20 mm, 1×Ø26 mm) for versatile hybrid cable compatibility.
    • Ruggedized Trays: Reinforced ABS splice trays resist vibration and impact, ensuring fiber protection during burial and installation.
    • Flexible Installation: Supports aerial, wall-mounted, pole-mounted, or direct-buried setups, with an optional aerial hanging hook for versatile deployment.

Specifications

Part No. GJS-D5049-432F
Color Black (customizable )
Dimension 510 × Ø225 mm (20.1 × Ø8.9 in)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports A: 63×40 mm (oval)
Cable Exit port B: 4 × Ø23 mm C: 4 × Ø20 mm D: 1 × Ø26 mm
Fusion Splice 432 Fibers
Number of Splice Tray 6 Trays
Suitable Splitter
Number of Adapters
Mount Way Aerial / Underground / Wall Mount / Pole Mounted
