Part No.: GJS-M0025

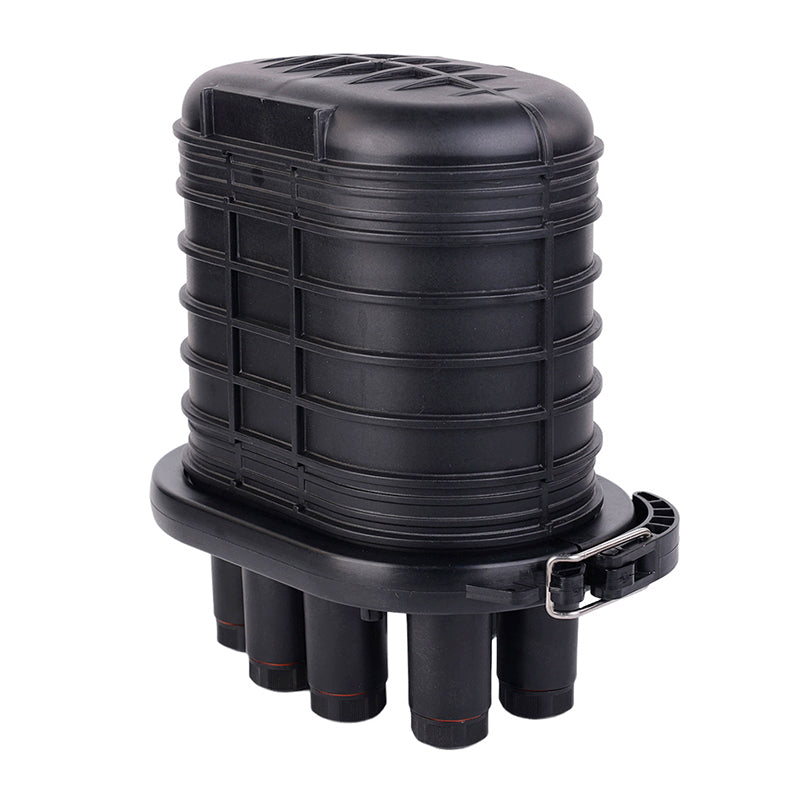

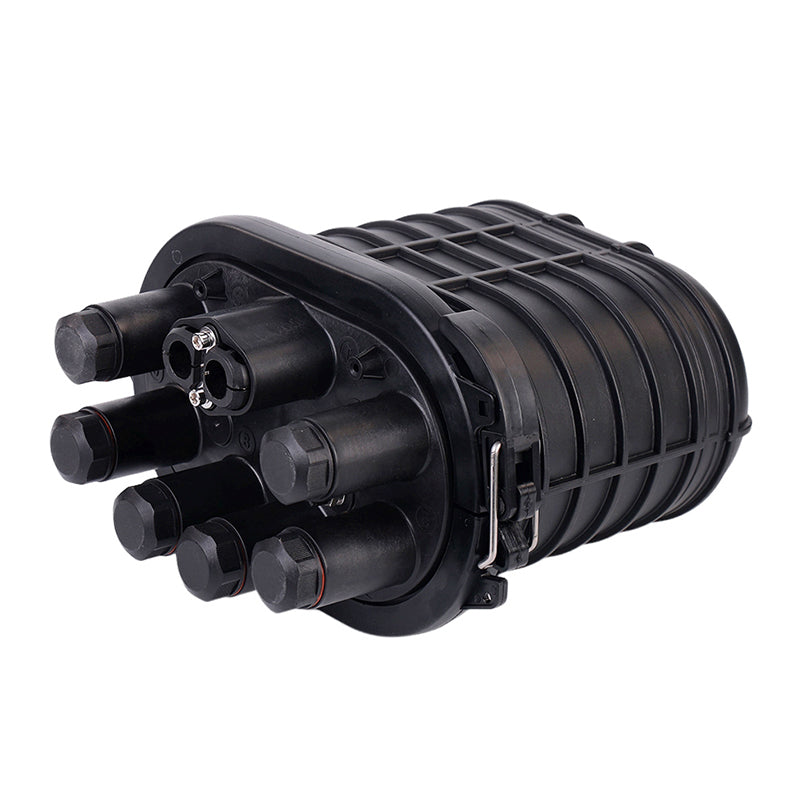

GJS-M0025 Fiber Optic Splice Closure

GJS-M0025 Fiber Optic Splice Closure

The GJS-M0025 Fiber Optic Splice Closure is designed for FTTH projects, offering versatile installation options including aerial, underground, wall-mounted, hand hole, and duct applications. It supports secure splicing for up to 96/192 fibers and integrates splitters for efficient signal distribution in telecom and broadband networks, ensuring reliable connectivity and performance.

Specification

Dimension (HxDia.): 345x323x192mm (including clamp outer diameter)

Inlet / Outlet: 2 Mid-span Ports (Ø8-16mm) / 6 Round Ports (Ø8-22mm)

Sealing Type:

Splicing capacity: 96 / 192 Fibers

Packing List

Carton Size: 450x350x370mm

Pieces per Carton: 2 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M0025 Fiber Optic Splice Closure is a versatile solution for FTTH projects, supporting aerial, underground, wall-mounted, hand hole, and duct installations. Constructed from durable PP+GF plastic, it offers excellent resistance to aging and corrosion. With an IP68-rated dual sealing system, it ensures robust protection against water and dust. The closure supports up to 192 fibers with flexible tray options (P083: 12F, P084: 6/12F) and integrates 1:4/1:8 blockless PLC splitters for efficient signal distribution. Its reusable sealing design and customizable port configurations (1 oval port, up to 24 drop cable connections) simplify installation and maintenance, making it ideal for reliable, high-capacity telecom and broadband networks.

  • Feature & Benifits

    Port capacities of the GJS-M0025 Fiber Optic Splice Closure:
    • Splicing capacity: 96 / 192 Fibers
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-M0025 Fiber Optic Splice Closure:
    • Versatile Installation: Supports aerial, underground, wall-mounted, hand hole, and duct applications for FTTH projects.

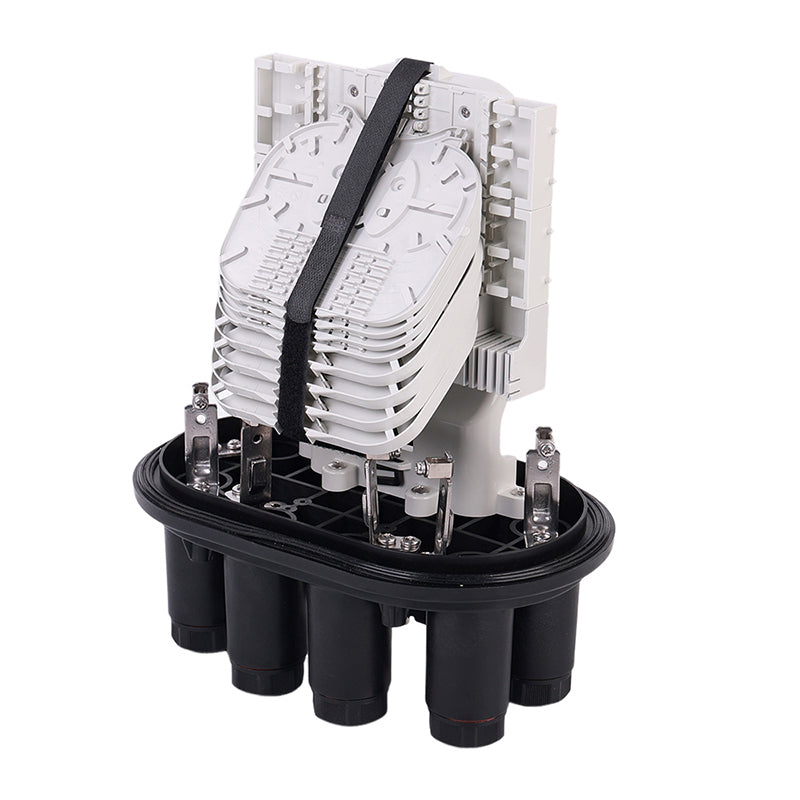

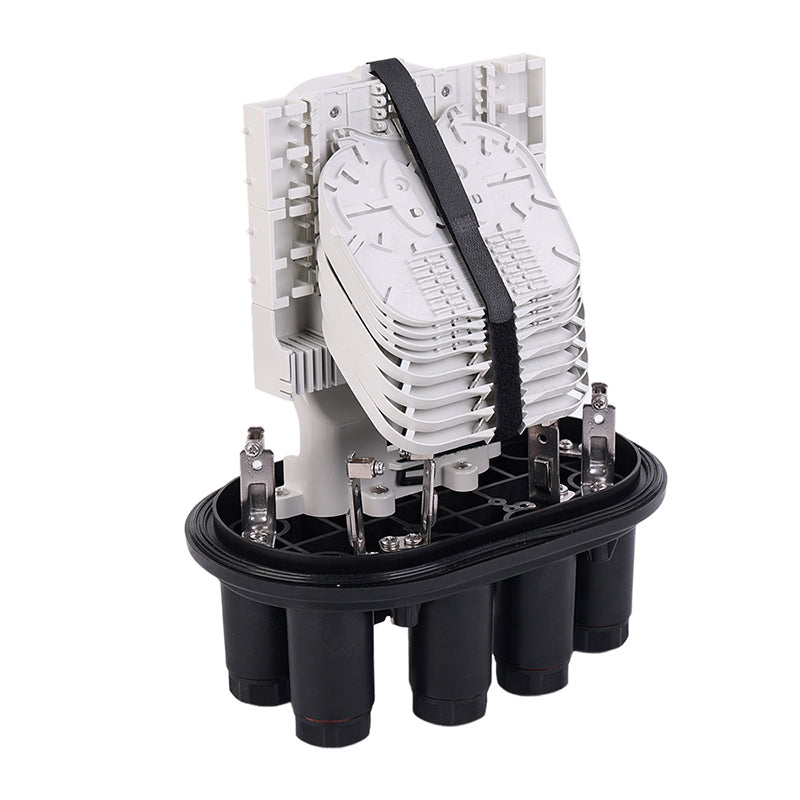

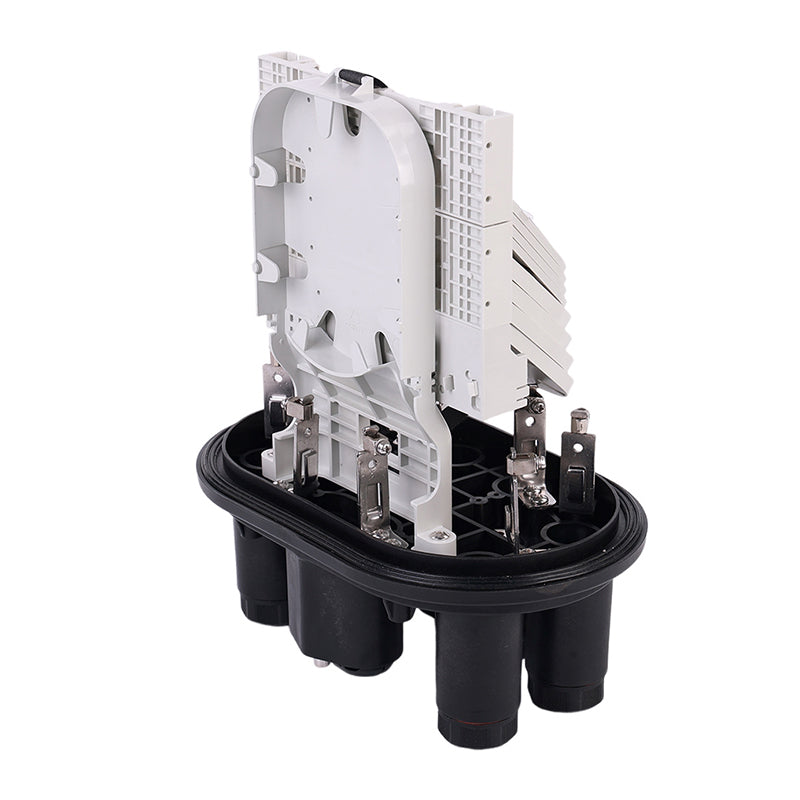

    • High-Capacity Splicing: Accommodates up to 192 fibers with P083 (12F) or P084 (6/12F, splitter-compatible) trays.
    • Durable Construction: Made of PP+GF plastic, resistant to aging and chemical corrosion for long-term outdoor use.
    • IP68-Rated Sealing: Dual mechanical and heat-shrinkable seals ensure robust protection against water and dust.
    • Flexible Port Design: 1 oval port for uncut cables and multiple small ports (Ø5–Ø22 mm) for up to 24 drop cables.
    • Blockless Splitter Integration: Supports 1:4/1:8 PLC splitters for efficient, compact signal distribution.
    • Reusable Sealing Structure: Patented design allows multiple openings, simplifying maintenance and reducing costs.

Specifications

Part No. GJS-M0025
Color Black (customizable )
Dimension 345x323x192mm (including clamp outer diameter)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 Mid-span Ports (Ø8-16mm)
Cable Exit port 6 Round Ports (Ø8-22mm)
Fusion Splice 96 / 192 Fibers
Number of Splice Tray 16 / 12 PCS (Max.)
Suitable Splitter
Number of Adapters
Mount Way Underground / Aerial / Wall / Pole Mounted
