Part No.: GJS-M0484C

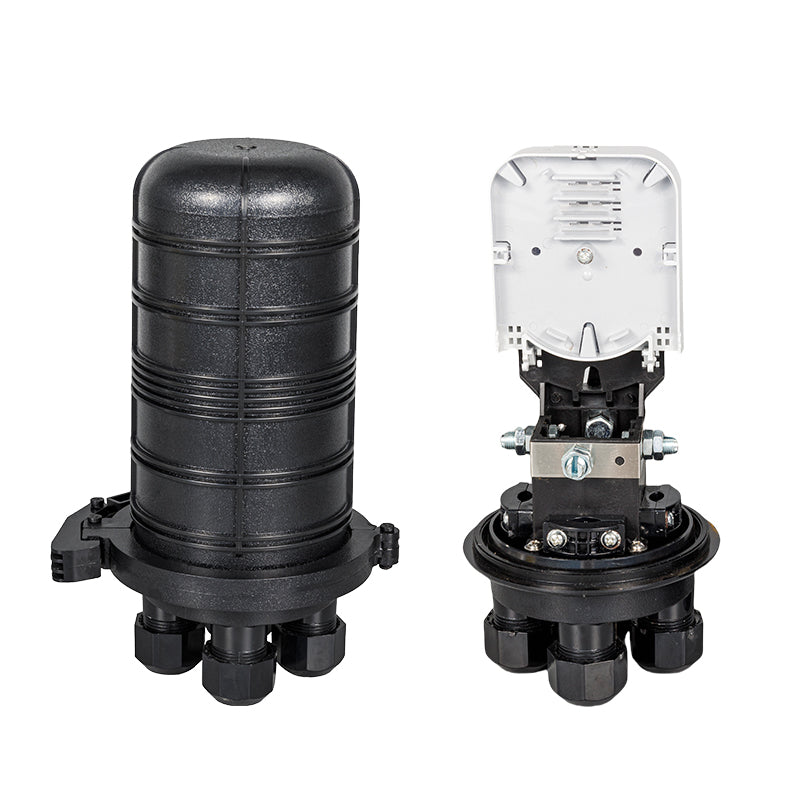

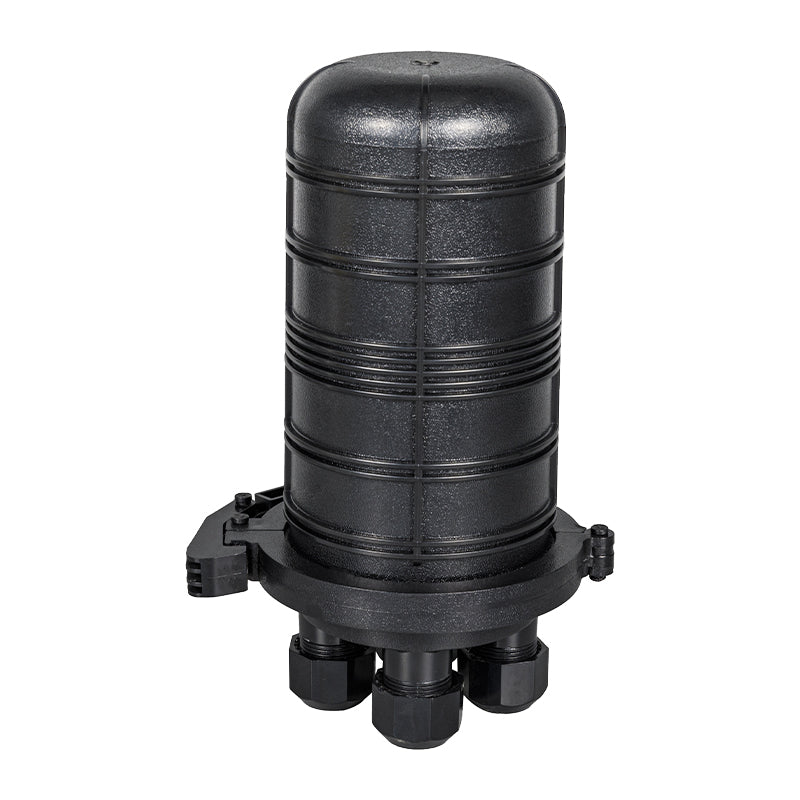

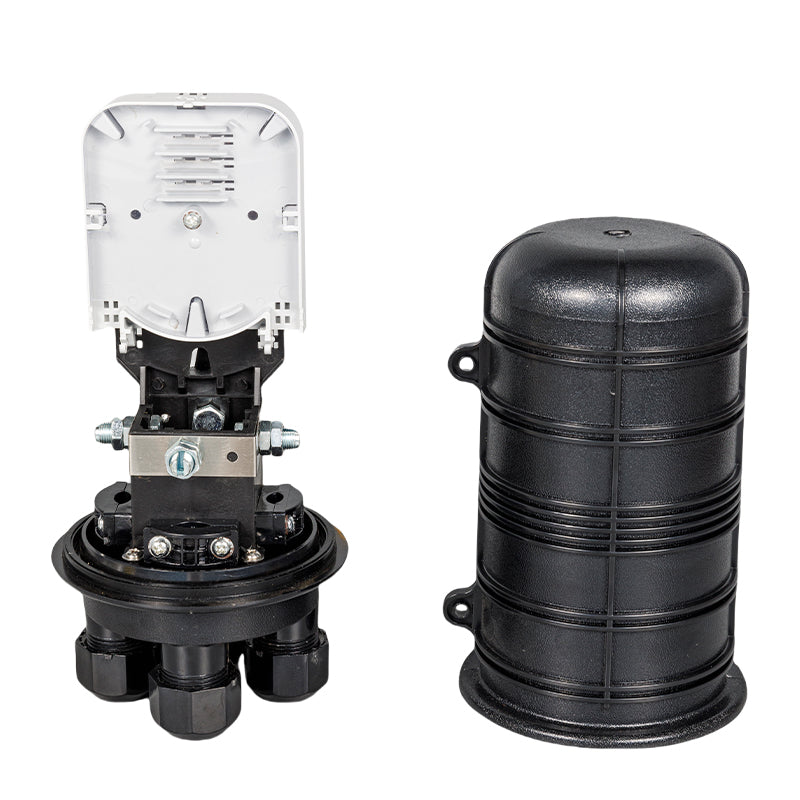

GJS-M0484C Mechanical Seal Dome Closure

GJS-M0484C Mechanical Seal Dome Closure

The GJS-M0484C is a robust, IP68-rated dome closure designed for outdoor fiber optic networks. Perfect for aerial, wall, or pole-mounted installations, it supports mid-span uncut and branch cable connections for telecom, FTTH, and network infrastructure. With a splicing capacity of 48 fibers, it ensures secure splicing and reliable performance in harsh environments, offering excellent protection against water and dust.

Specification

Dimension (HxDia.): 288×Ø135 mm (11.34×5.31 in)

Inlet / Outlet: 4 (adjustable, Ø13mm max per cable) / 4 (adjustable, Ø13mm max per cable)

Sealing Type:

Splicing capacity:

Packing List

Carton Size: 650x450x380 mm

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M0484C Mechanical Seal Dome Closure is a high-performance solution for outdoor fiber optic networks, designed for telecom, FTTH, and infrastructure projects. Engineered for durability and versatility, this IP68-rated enclosure ensures reliable splicing and cable management in harsh environments. Its compact design supports aerial, wall, pole, duct, or underground installations, making it ideal for secure, long-term deployments.

  • Feature & Benifits

    Port capacities of the GJS-M0484C Mechanical Seal Dome Closure:
    • Splicing capacity:
    • Patching capacity: 48 fibers (Max.)
    • Splitter capacity:
    Key features for the GJS-M0484C Mechanical Seal Dome Closure:
    • Durable Construction: Made from UV-stabilized modified polycarbonate, ensuring a 20-year service life.
    • IP68 Protection: Dual rubber gaskets (enclosure and ports) provide superior waterproof and dustproof performance, reliable from -40°C to +70°C.

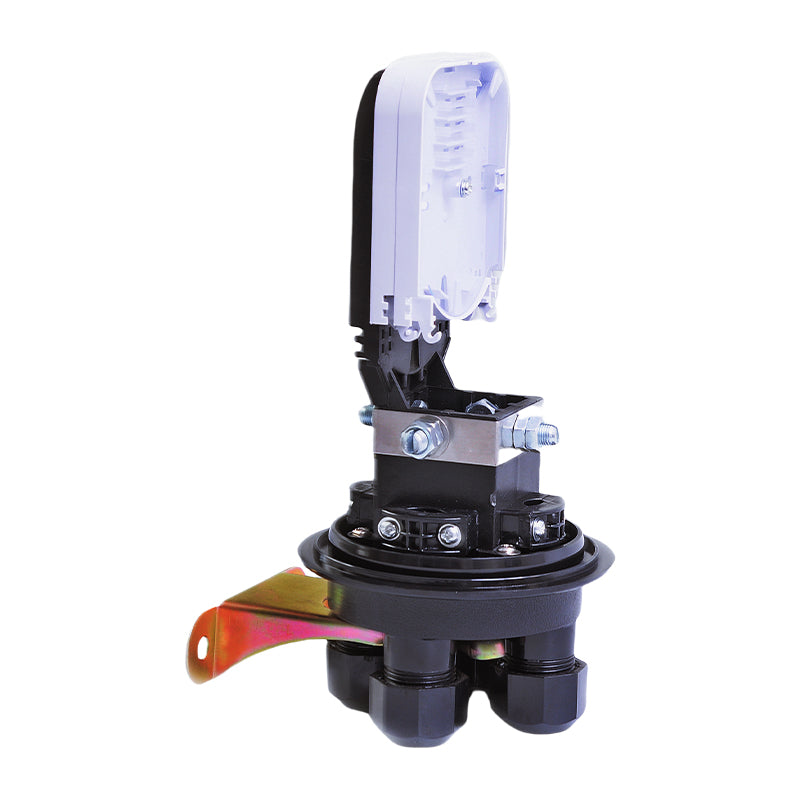

    • High Splicing Capacity: Supports up to 48 fibers with 4 trays (6/12 fibers each) for efficient splicing.

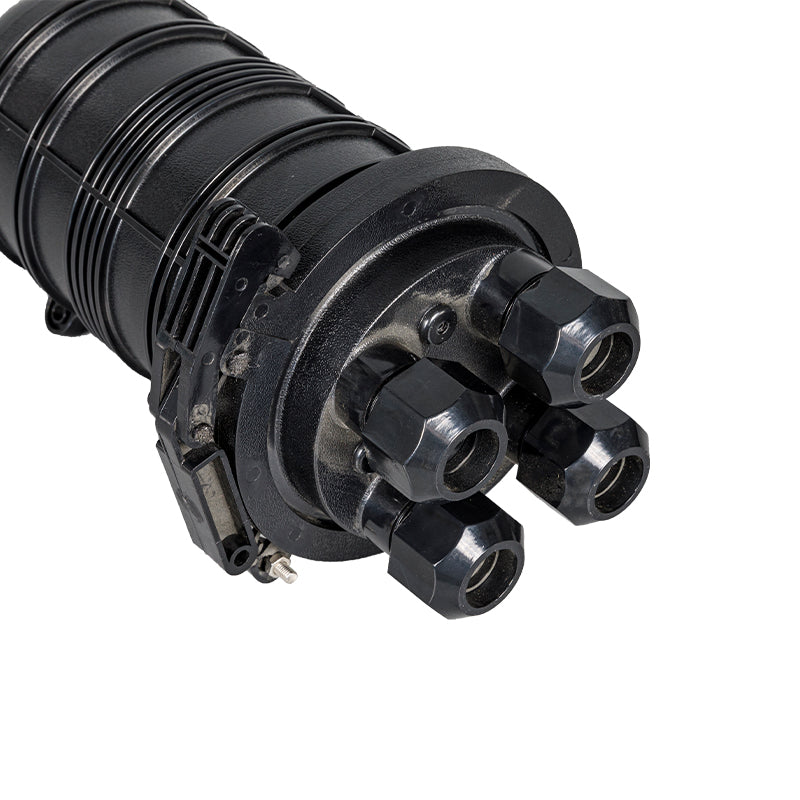

    • Flexible Cable Management: Features 2 mid-span ports (Ø16 mm) for uncut cables and 8 branch ports (Ø14.5 mm) for drop cables (Ø3–Ø5.5 mm), plus 4 ports with mechanical locks for Ø13 mm cables.

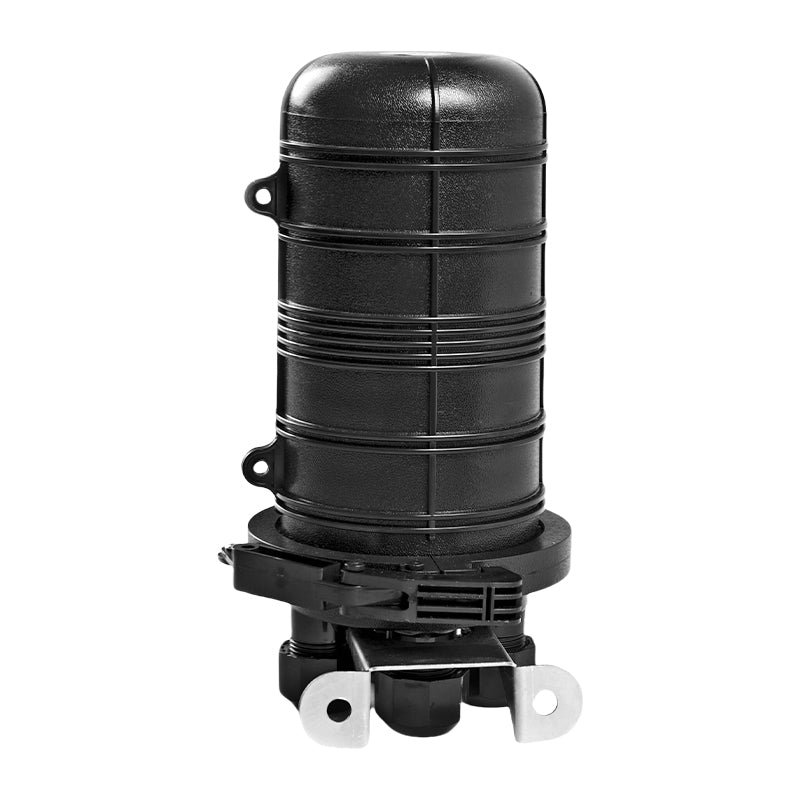

    • Versatile Installation: Compatible with pole, wall, duct, underground, or manhole mounting for diverse deployment needs.
    • Customizable Options: Add a grounding device for electrical safety, an inflating valve for pressure testing, or mounting kits for specific setups.

Specifications

Part No. GJS-M0484C
Color Black (customizable )
Dimension 288×Ø135 mm (11.34×5.31 in)
Material of Housing PP+GF
Protection class IP IP68 (-40°C to +70°C)
Cable Entry Ports 4 (adjustable, Ø13mm max per cable)
Cable Exit port 4 (adjustable, Ø13mm max per cable)
Fusion Splice
Number of Splice Tray 4 trays (holds 6/12 fibers each)
Suitable Splitter
Number of Adapters 48 fibers (Max.)
Mount Way Underground / Pole / Wall / Duct / Manhole mounted
