Part No.: GJS-M1446C2

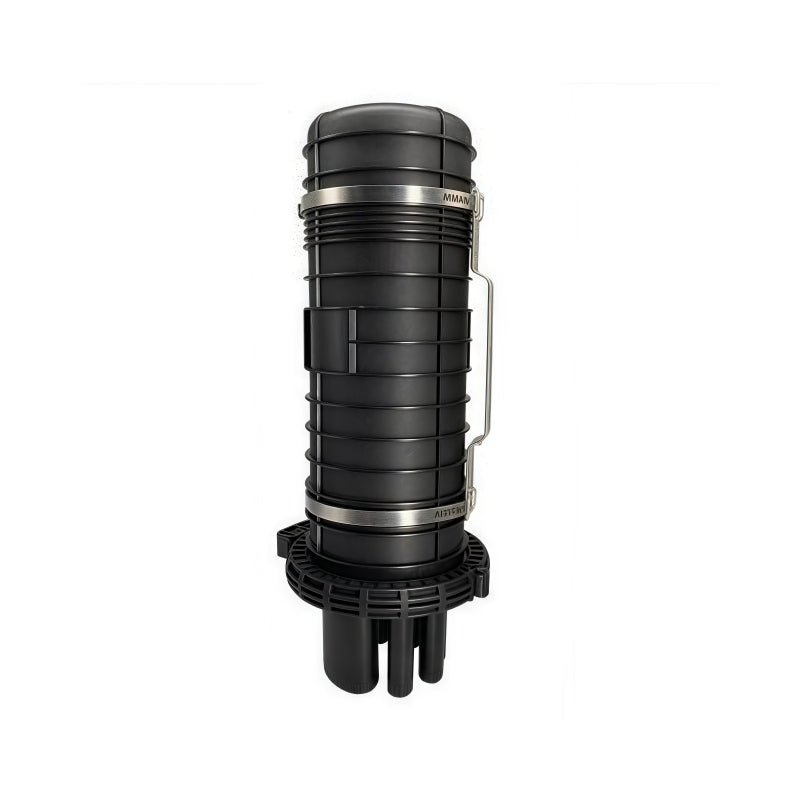

GJS-M1446C2 Mechanical Seal Dome Closure

GJS-M1446C2 Mechanical Seal Dome Closure

The GJS-M1446C2 is a durable, IP68-rated fiber dome closure designed for reliable fiber optic splicing in tough environments like underground and duct settings. It supports high-density networks with a splicing capacity of up to 144 single-core fibers, offering robust protection and easy installation for efficient network connectivity.

Specification

Dimension (HxDia.): 500 x Ø200 mm (19.69 x 7.87 inches)

Inlet / Outlet: 2 x Ø8-18 mm / 4 x Ø6-18 mm

Sealing Type:

Splicing capacity: 144 FO (Single Core, Max.)

Packing List

Carton Size: 650x450x380 mm

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M1446C2 is a compact, IP68-rated fiber dome closure engineered for secure fiber optic splicing in challenging environments, including underground and duct applications. With a capacity of up to 144 single-core fibers, it features a robust mechanical sealing system and high-quality engineering plastic construction, ensuring durability and ease of use. Customizable mounting and grounding options make it a versatile solution for high-density network deployments.

  • Feature & Benifits

    Port capacities of the GJS-M1446C2 Mechanical Seal Dome Closure:
    • Splicing capacity: 144 FO (Single Core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-M1446C2 Mechanical Seal Dome Closure:

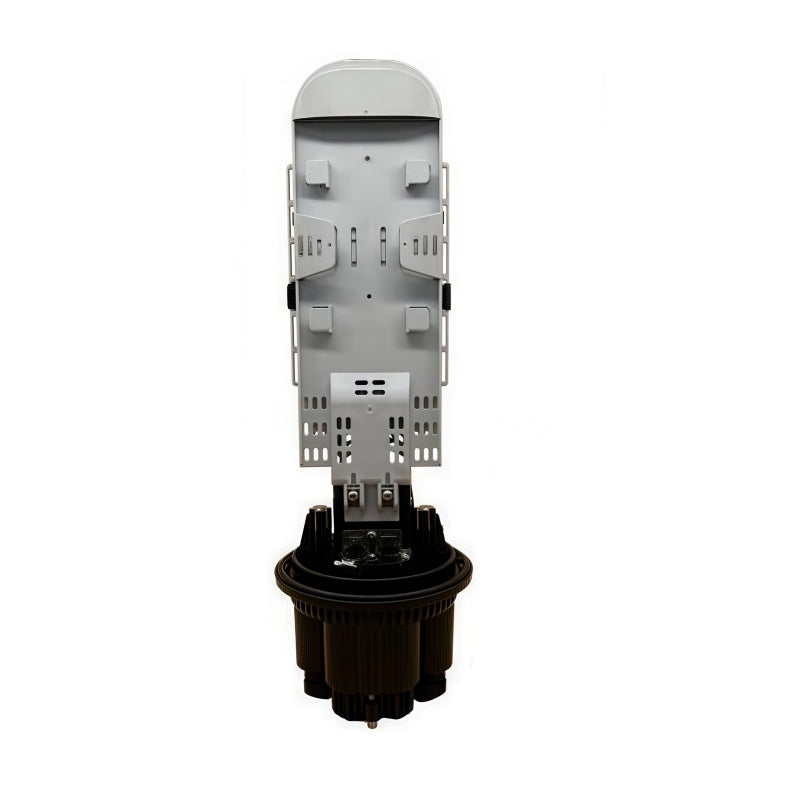

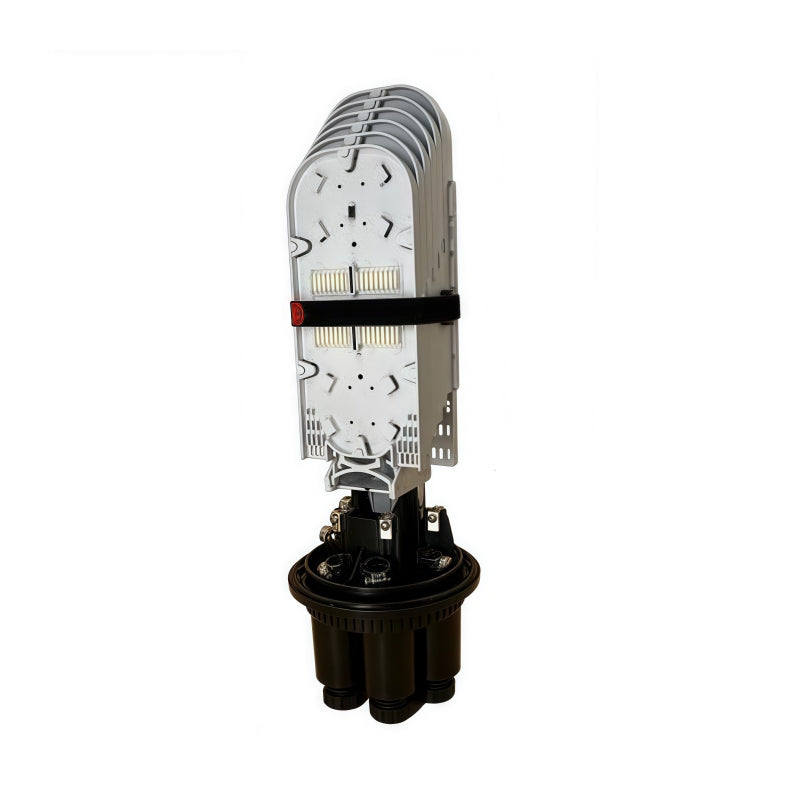

    • High-Capacity Splicing: Supports up to 144 single-core fibers with 6 booklet-style trays (24F each).
    • IP68 Protection: Fully resistant to water, dust, and extreme weather for reliable performance.
    • Robust Sealing: Mechanical sealing with silicone seal ring ensures long-lasting cable and enclosure protection.

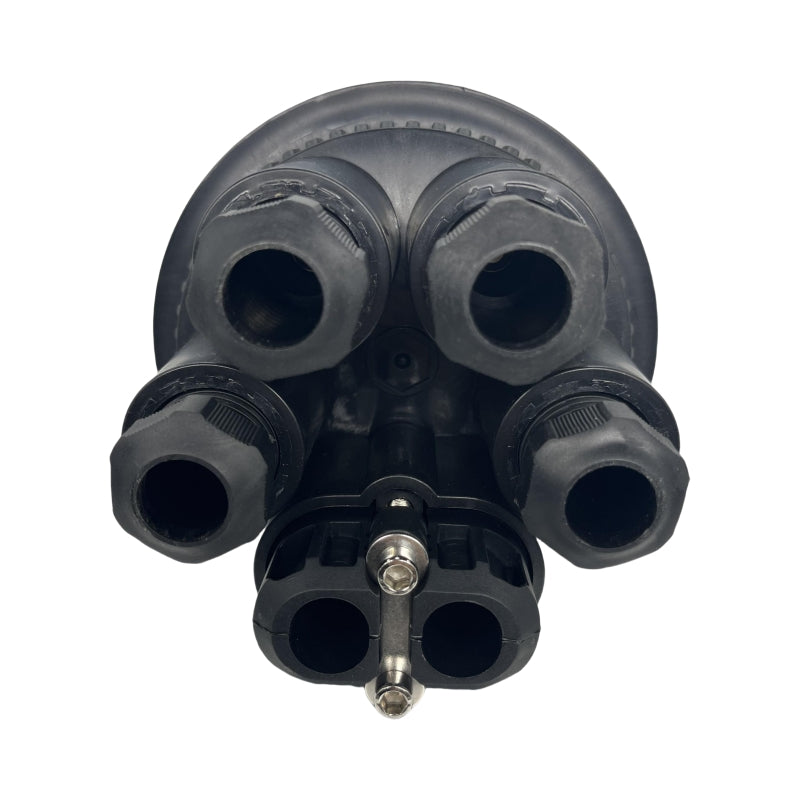

    • Flexible Cabling: Includes 2 entry ports (Ø8-18mm) and 4 exit ports (Ø6-18mm) for versatile configurations.
    • Durable Design: Constructed from high-quality engineering plastic for harsh environment resilience.
    • Versatile Mounting: Supports wall, pole, or direct burial with optional mounting kits.
    • Enhanced Safety: Optional grounding device for added electrical protection.
    • Sealing Verification: Optional inflating valve for pressure testing in critical applications.

Specifications

Part No. GJS-M1446C2
Color Black (customizable )
Dimension 500 x Ø200 mm (19.69 x 7.87 inches)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 x Ø8-18 mm
Cable Exit port 4 x Ø6-18 mm
Fusion Splice 144 FO (Single Core, Max.)
Number of Splice Tray 6 PCS (Max.)
Suitable Splitter
Number of Adapters
Mount Way Underground / Wall / Pole mounted
