Part No.: GJS-M2888C

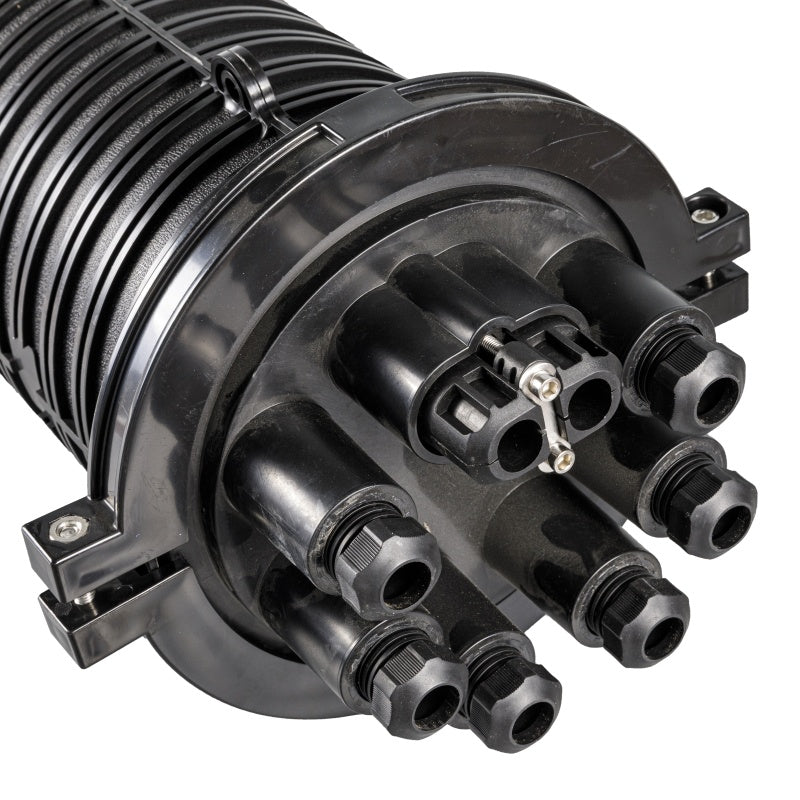

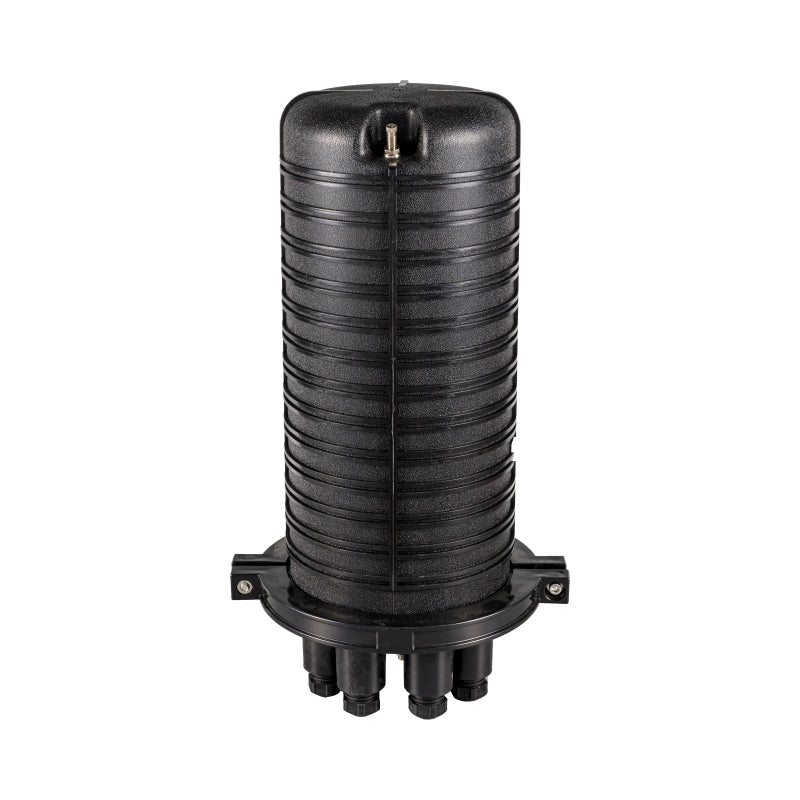

GJS-M2888C 288F Mechanical Seal Fiber Dome Closure

GJS-M2888C 288F Mechanical Seal Fiber Dome Closure

The GJS-M2888C Fiber Dome Closure supports up to 288 fiber splices for high-density networks. With IP68 waterproof protection, it ensures reliable performance in harsh environments like underground and duct installations, securing fiber connections for telecom and broadband applications.

Specification

Dimension (HxDia.): 510 × Ø300 mm (20.1" × 11.8" dia.)

Inlet / Outlet: 2 ports (Ø8-18 mm) / 6 ports (Ø6-8 mm)

Sealing Type:

Splicing capacity: 288 Fibers (Single Core, Max.)

Packing List

Carton Size: 650x450x380 mm

Pieces per Carton: 4 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-M2888C Fiber Dome Closure is a high-capacity solution for fiber optic networks, supporting up to 288 single-core fiber splices. Crafted from corrosion-resistant PP+GF plastic, it ensures durability in harsh environments with IP68-rated mechanical sealing. Its reusable, gel-free design simplifies maintenance, while 24 booklet-style trays with a 40mm bend radius optimize fiber management for minimal signal loss. With versatile cable ports (2x Ø8-18mm entry, 6x Ø6-18mm exit) and customizable mounting options, this closure is ideal for underground or duct installations in telecom and broadband applications.

  • Feature & Benifits

    Port capacities of the GJS-M2888C 288F Mechanical Seal Fiber Dome Closure:
    • Splicing capacity: 288 Fibers (Single Core, Max.)
    • Patching capacity:
    • Splitter capacity:
    Key features for the GJS-M2888C 288F Mechanical Seal Fiber Dome Closure:

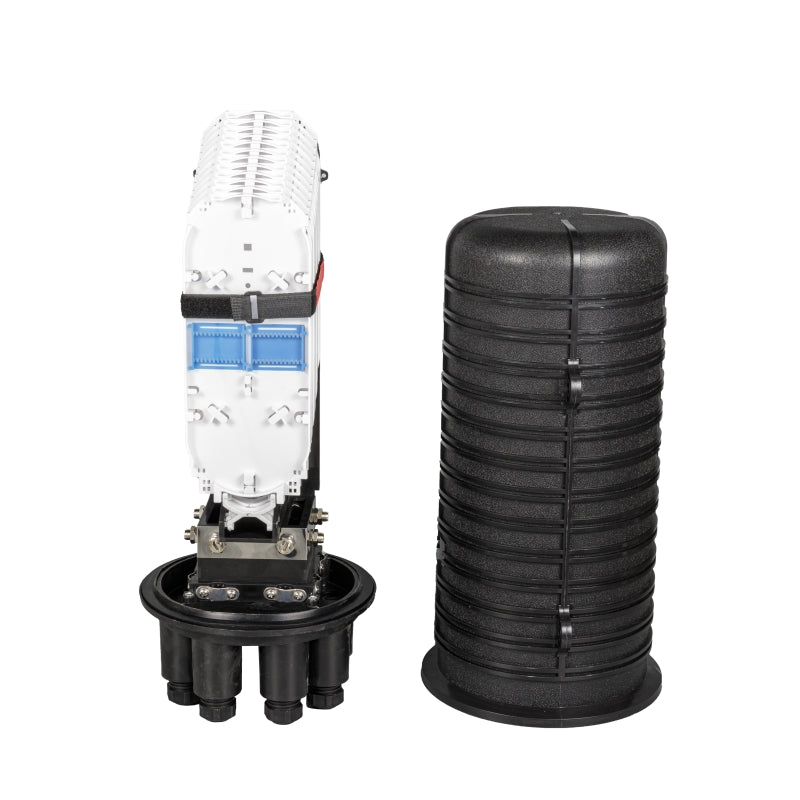

    • High-Density Splicing: Supports up to 288 single-core fibers with 24 modular trays.
    • IP68 Protection: Zero-gel mechanical sealing with reusable rubber rings for robust weather resistance.
    • Corrosion-Resistant: PP+GF housing ensures long-term durability in harsh environments.
    • Optimized Fiber Management: 40mm bend radius trays minimize signal loss.
    • Wide Cable Compatibility: 2 entry (Ø8-18mm) and 6 exit (Ø6-18mm) ports for diverse cables.
    • Reusable Design: Non-destructive reopening simplifies maintenance.
    • Customizable Installation: Supports aerial, wall, pole, or direct burial with optional grounding and inflating valve.

Specifications

Part No. GJS-M2888C
Color Black (customizable )
Dimension 510 × Ø300 mm (20.1" × 11.8" dia.)
Material of Housing PP+GF
Protection class IP IP68
Cable Entry Ports 2 ports (Ø8-18 mm)
Cable Exit port 6 ports (Ø6-8 mm)
Fusion Splice 288 Fibers (Single Core, Max.)
Number of Splice Tray 24 Trays (Max.)
Suitable Splitter
Number of Adapters
Mount Way Underground / Wall / Pole mounted
