Part No.: GJS-H2201

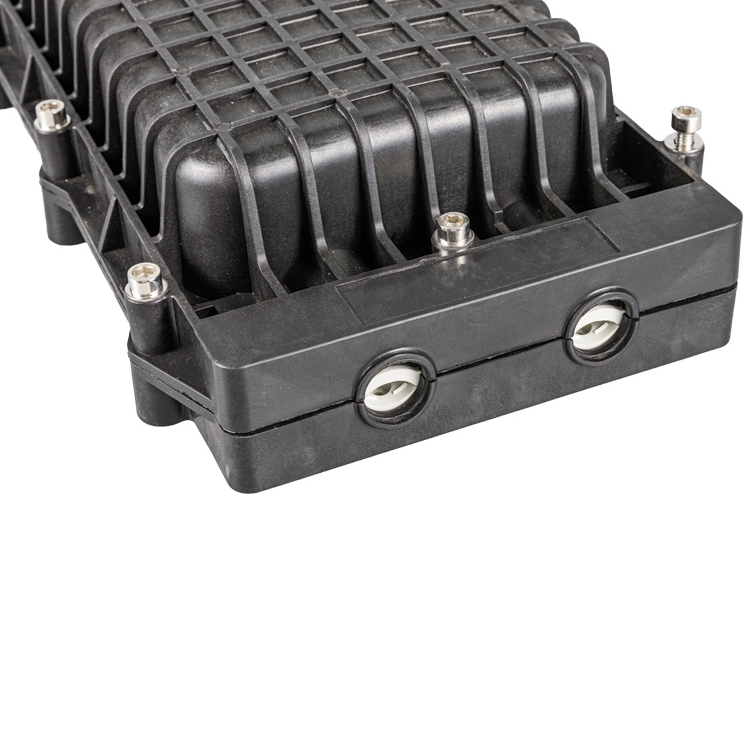

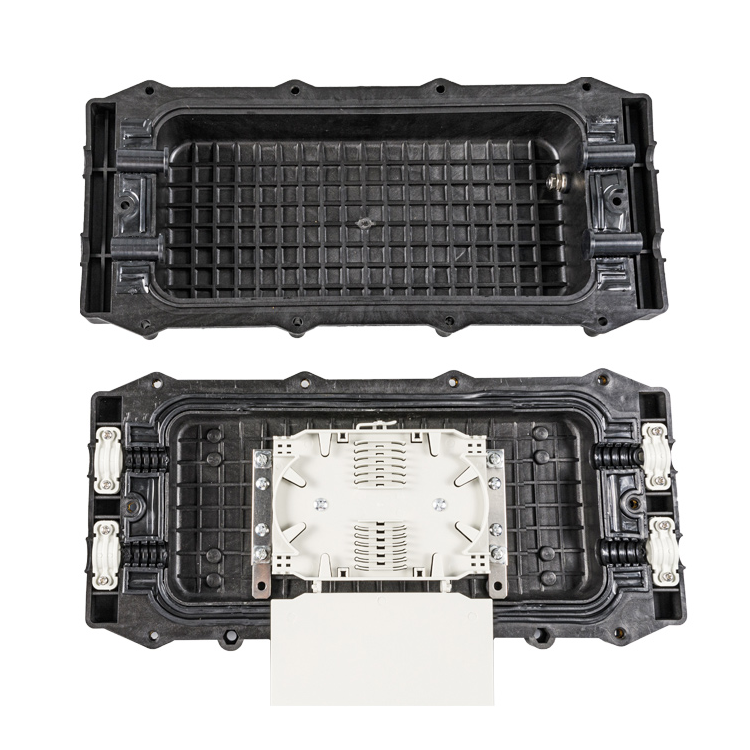

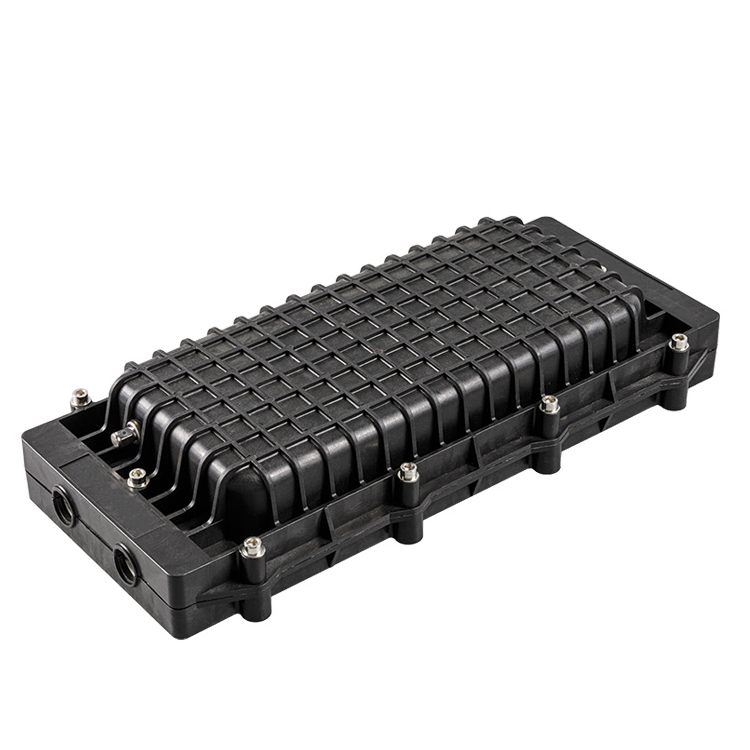

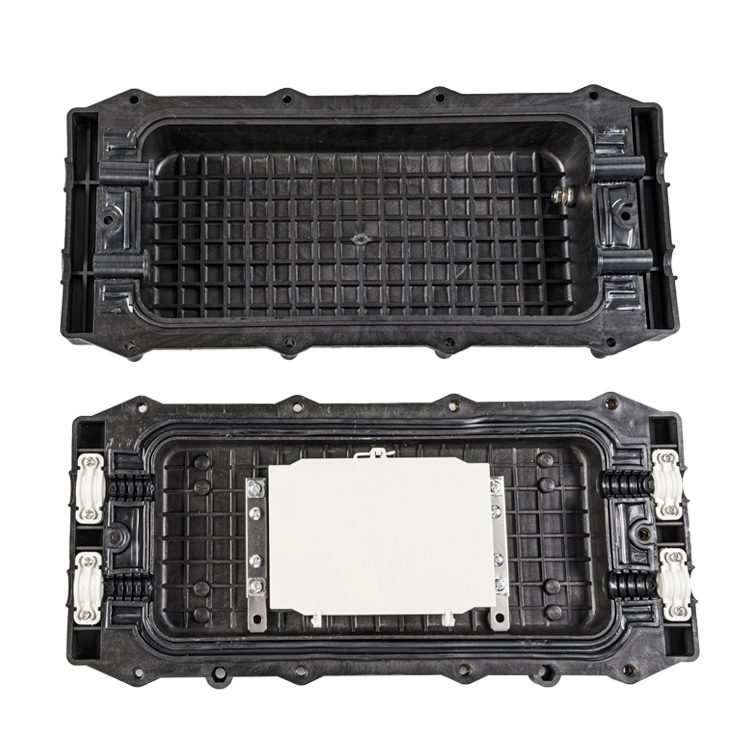

96FO Fiber Optic Splice Closure | GJS-H2201

96FO Fiber Optic Splice Closure | GJS-H2201

Specification

Dimension (WxHxD): 404 x 190 x 88 mm

Inlet / Outlet: 4 / N/A

Branch (Blind) ports: N/A

Splicing capacity: 48/96 fusion splices

Patching capacity: N/A

Suitable splitter: N/A

Collapsible row

Carton Size: 64.0*43.0*45.0CM

PCS/CTN: 10 PCS/CTN

Download File
Request for Quotation View full details

  • Description

    The GJS-H2201 is an in-line type fiber optic splice closure, designed for FTTx networks. It accommodates up to 96 fusion splices and 4 cable ports (2 for each side). The closure is suitable for deployment in aerial, wall-mounted, direct buried applications.

  • Feature & Benifits

    Port capacities of the 96FO Fiber Optic Splice Closure | GJS-H2201:
    • Splicing capacity: 48/96 fusion splices
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 96FO Fiber Optic Splice Closure | GJS-H2201:
    • Housing is made of high-quality engineering plastic(MPP) which has good mechanical. performance and hydrolysis resistance, chemical resistance.
    • Fastened by inner hex bolts, with 4 cable ports (2ports on both sides or 2 in & 2 out) and 96 FO splice capacity.
    • Support Mold logo on the cover.
    • Perfect fiber management - Clear fiber function division and fiber routing.
    • Available for both Wall-mount and Pole-mount.

General Specifications

Part No. GJS-H2201
Color Black (Customizable)
Dimension 404 x 190 x 88 mm
Material of Housing MPP
Protection class IP IP68
Main Cable Ports 4
Branch Cable Port N/A
Drop Cable Ports N/A
Fusion Splice 48/96 fusion splices
Number of Splice Tray 4 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Aerial / Wall-mounted / Direct Buried
