Part No.: GJS-H2012

96FO Fiber Optic Splice Closure | GJS-H2012

96FO Fiber Optic Splice Closure | GJS-H2012

Specification

Dimension (WxHxD): 460 Ă— 195 Ă— 118 mm

Inlet / Outlet: 2 / 12 (8+4)

Branch (Blind) ports: N/A

Splicing capacity: 48/96 fusion splices

Patching capacity: N/A

Suitable splitter: N/A

Collapsible row

Carton Size: 50.0*48.0*52.0CM

PCS/CTN: 6 PCS/CTN

Download File
Request for Quotation View full details

  • Description

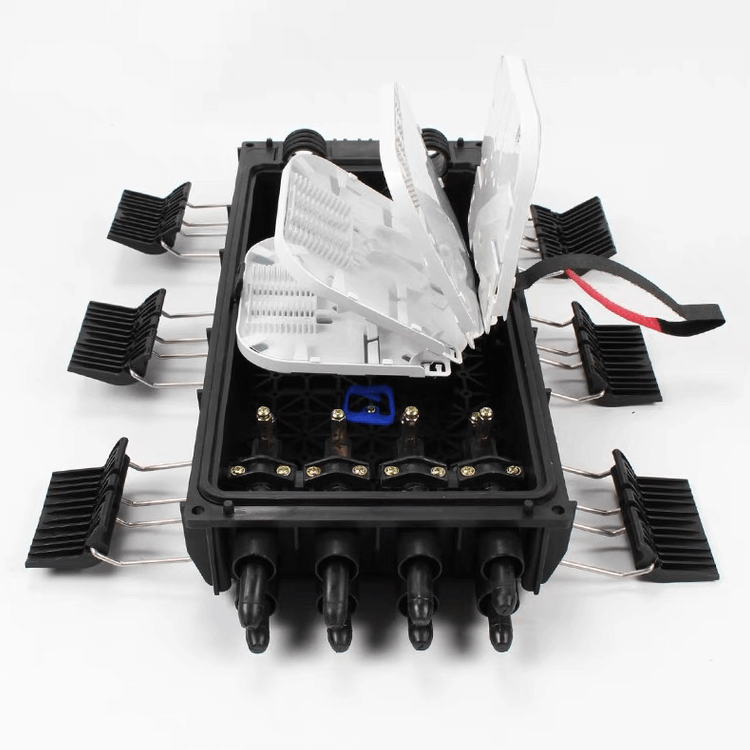

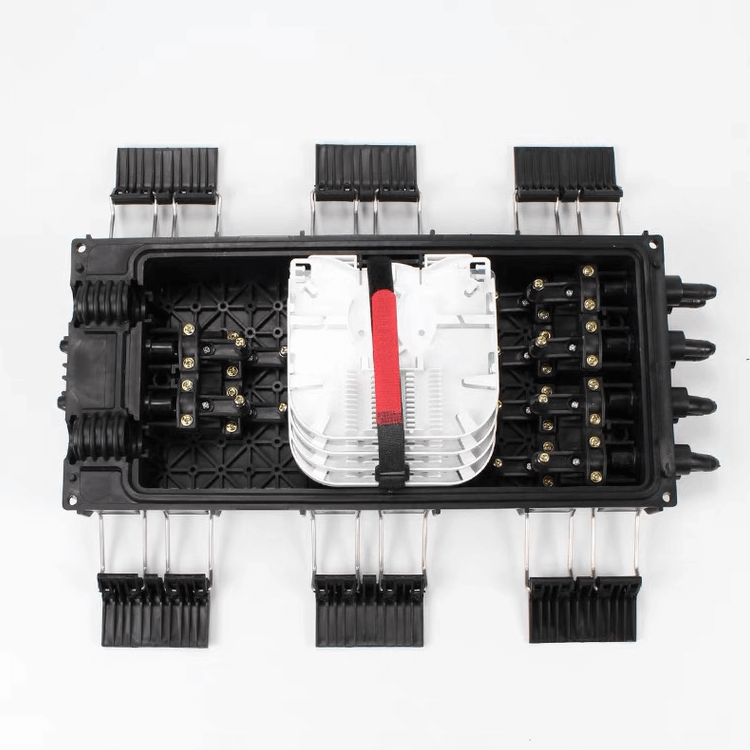

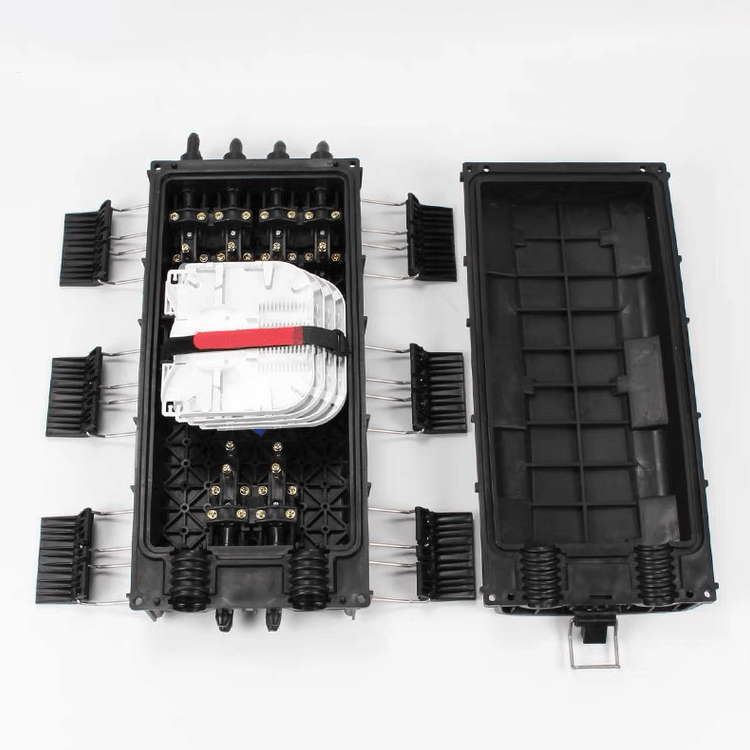

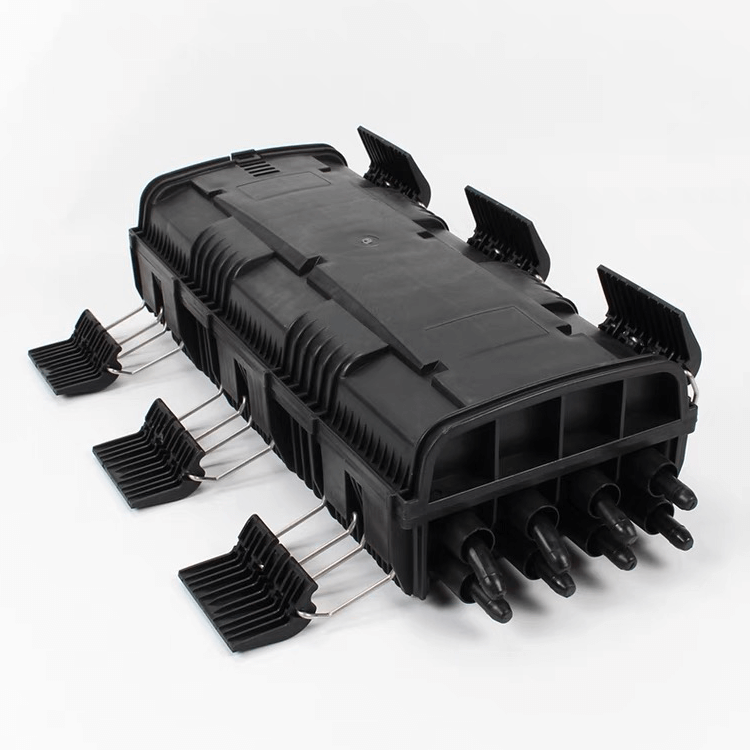

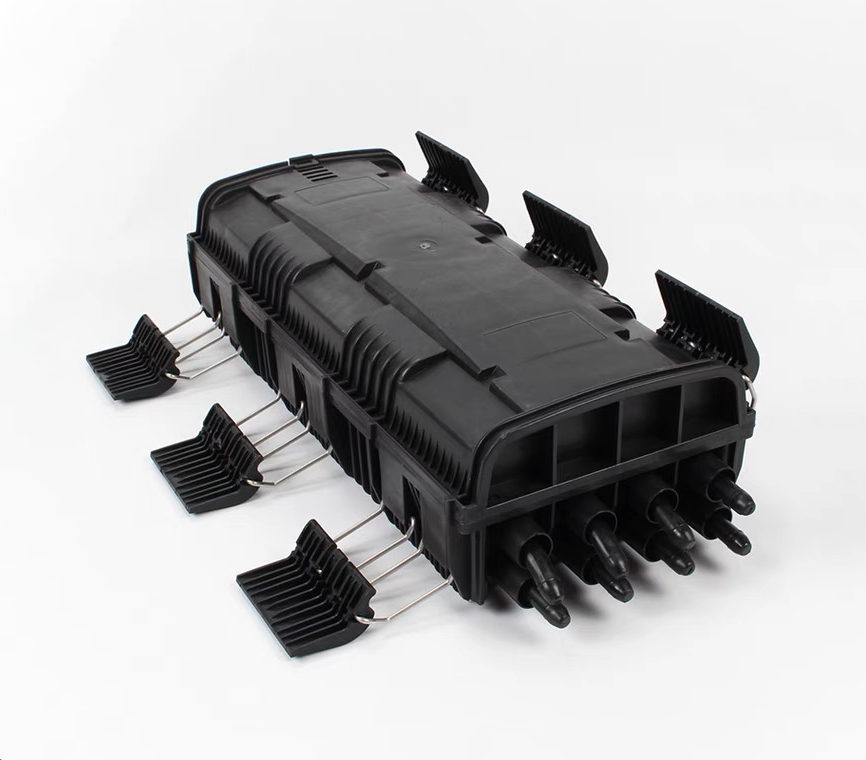

    The GJS-H2012 is an in-line type fiber optic splice closure, designed for FTTx networks. It accommodates up to 96 fusion splices and 2 main cable ports, 12 drop cable ports. The closure is suitable for deployment in aerial, wall-mounted, direct buried applications.

  • Feature & Benifits

    Port capacities of the 96FO Fiber Optic Splice Closure | GJS-H2012:
    • Splicing capacity: 48/96 fusion splices
    • Patching capacity: N/A
    • Splitter capacity: N/A
    Key features for the 96FO Fiber Optic Splice Closure | GJS-H2012:
    • Housing is made of high-quality engineering plastic, which has good mechanical performance and hydrolysis resistance, chemical resistance.
    • The fiber curvature radius is greater than 40mm.
    • Perfect fiber management - Clear fiber function division and fiber routing.
    • Available for both Wall-mount and Pole-mount.

General Specifications

Part No. GJS-H2012
Color Black (Customizable)
Dimension 460 Ă— 195 Ă— 118 mm
Material of Housing MPP
Protection class IP IP68
Main Cable Ports 2
Branch Cable Port N/A
Drop Cable Ports 12 (8+4)
Fusion Splice 48/96 fusion splices
Number of Splice Tray 4 PCS (Max.)
Suitable Splitter N/A
Number of Adapters N/A
Mount Way Direct Buried
